STMicroelectronics VNP35N07-E Power Driver IC
- Brand: STMicroelectronics
- Product Code: VNP35N07-E
- Availability: In Stock
$2.20
- Ex Tax: $2.20
STMicroelectronics VNP35N07-E: High-Performance Power Driver for Industrial Applications
The STMicroelectronics VNP35N07-E is a cutting-edge N-channel power driver designed to deliver exceptional performance in demanding industrial and automotive systems. This advanced IC combines robust electrical characteristics with integrated protection mechanisms, making it an ideal choice for engineers seeking reliable and efficient power management solutions. As part of STMicroelectronics' renowned VIPower™ and OMNIFET™ series, this device exemplifies the company's commitment to innovation in semiconductor technology.
Technical Excellence in Power Management
Engineered for efficiency and durability, the VNP35N07-E power driver operates as a low-side N-channel MOSFET with a maximum load voltage rating of 55V. Its impressive 25A output current capability enables seamless operation in high-power applications while maintaining exceptional thermal stability. The device's 280mΩ maximum Rds(on) ensures minimal power loss during operation, significantly improving system efficiency compared to traditional power drivers.
One of the standout features of this power driver is its comprehensive protection system. Integrated current limiting, over-temperature, and over-voltage safeguards work in unison to prevent damage under abnormal operating conditions. These built-in protections not only enhance reliability but also reduce the need for external circuitry, simplifying design complexity and lowering overall system costs.
| Parameter | Specification |
|---|---|
| Load Voltage | 55V (Max) |
| Output Current | 25A (Max) |
| Rds(on) | 280mΩ (Max) |
| Package Type | TO-220-3 |
Design Flexibility and Ease of Integration

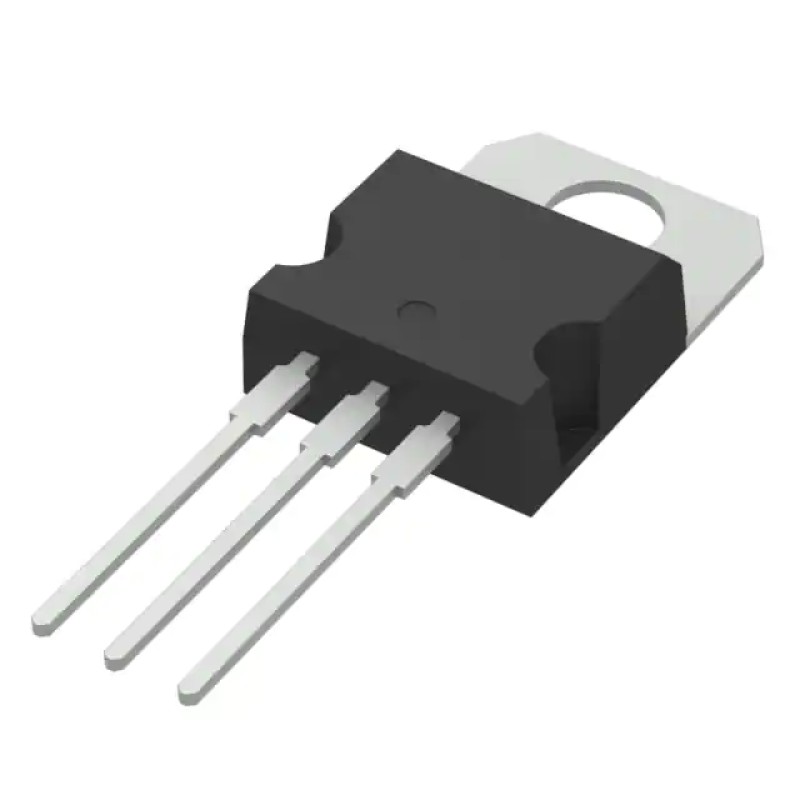

The VNP35N07-E's through-hole TO-220AB package offers excellent thermal dissipation characteristics while maintaining compatibility with standard PCB manufacturing processes. Its non-inverting input configuration and simple on/off interface make it exceptionally easy to integrate into existing systems, reducing development time and engineering costs. The device's 1:1 input/output ratio ensures precise control signal transmission without the need for additional signal conditioning circuitry.
Designed for modern industrial environments, this power driver excels in applications ranging from motor control systems to industrial automation equipment. Its robust construction and wide operating temperature range (not specified) make it particularly well-suited for challenging environments where reliability is paramount. The integrated status flag feature provides valuable real-time feedback for system monitoring and diagnostics.
Quality and Reliability
As an active product in STMicroelectronics' extensive semiconductor portfolio, the VNP35N07-E undergoes rigorous quality control testing to ensure compliance with industry standards. The device's tube packaging format helps maintain component integrity during storage and handling, while the manufacturer's reputation for excellence provides additional assurance of long-term reliability.
For engineers seeking to optimize their power management designs, the VNP35N07-E offers an exceptional balance of performance, protection, and ease of use. Its comprehensive feature set and proven reliability make it a compelling choice for new designs and system upgrades alike. Whether implementing motor control systems, industrial automation solutions, or automotive electronics, this power driver delivers the performance characteristics needed to succeed in today's demanding applications.
Tags: Power Management, Semiconductor Devices, Industrial Electronics, Automotive Components
