STMicroelectronics STW75NF30 MOSFET
- Brand: STMicroelectronics
- Product Code: STW75NF30
- Availability: In Stock
$3.50
- Ex Tax: $3.50
High-Power N-Channel MOSFET for Demanding Applications
The STMicroelectronics STW75NF30 MOSFET represents a breakthrough in power transistor technology, delivering exceptional performance for industrial and automotive applications. This N-channel power MOSFET combines advanced STripFET™ technology with robust design features to handle extreme operating conditions while maintaining reliability and efficiency.
Technical Excellence in Power Management
Engineered for high-voltage applications, this 300V MOSFET offers a continuous drain current capacity of 60A at 25°C, making it ideal for power conversion systems requiring stable performance under heavy loads. The device's 45mΩ maximum Rds(on) at 30A/10V ensures minimal conduction losses, while its 164nC gate charge rating enables fast switching capabilities crucial for modern power electronics.
| Parameter | Value |
|---|---|
| Max Voltage | 300V |
| Continuous Current | 60A |
| Rds(on) Max | 45mΩ |
| Operating Temp | -55°C to 150°C |
Advanced Design Features

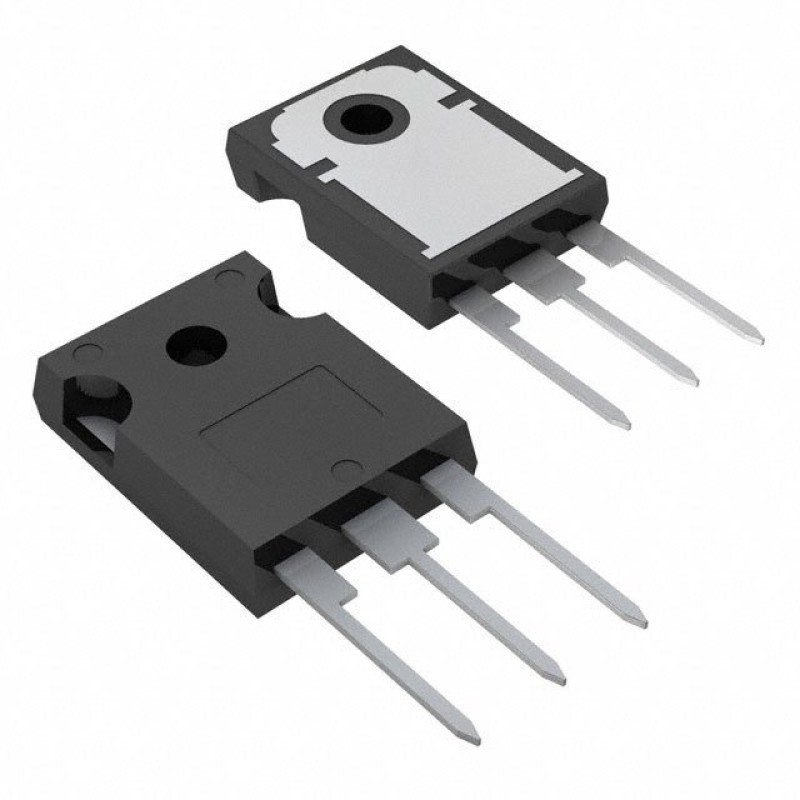

The STW75NF30 incorporates STMicroelectronics' proprietary STripFET™ technology that optimizes the balance between switching performance and thermal management. Its ±20V gate voltage tolerance provides enhanced protection against voltage spikes, while the 5930pF input capacitance at 25V ensures stable operation in high-frequency applications. The TO-247-3 package design facilitates efficient heat dissipation through its through-hole mounting configuration.
This obsolete product status device remains a benchmark for power transistor performance, offering 320W maximum power dissipation (Tc) and a 4V gate threshold voltage at 250µA. Its design makes it particularly suitable for motor control systems, power supplies, and industrial automation equipment where reliability is critical.
Industrial-Grade Reliability
The STW75NF30's specifications demonstrate its capability to perform in harsh environments. Its operating temperature range of -55°C to 150°C makes it suitable for both extreme cold and high-temperature applications. The device's construction meets automotive industry standards for vibration resistance and thermal cycling endurance, ensuring long-term reliability in demanding applications.
