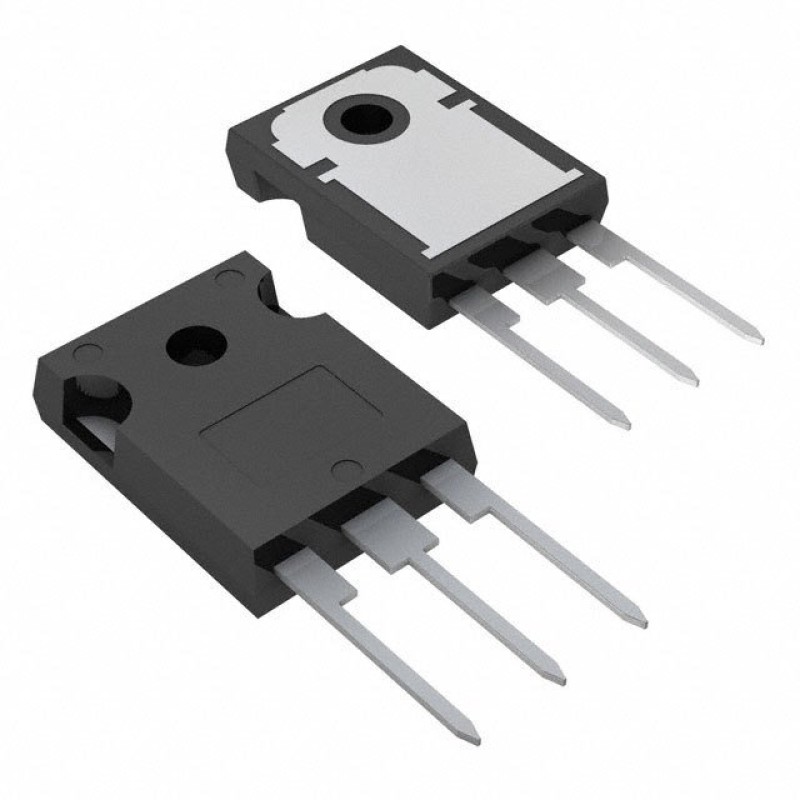

STMicroelectronics STW20NM60 MOSFET
- Brand: STMicroelectronics
- Product Code: STW20NM60
- Availability: In Stock
$1.30
- Ex Tax: $1.30
High-Performance N-Channel MOSFET for Demanding Power Applications
The STMicroelectronics STW20NM60 is a high-voltage N-Channel MOSFET designed to deliver exceptional performance in power conversion and switching applications. With its robust 600V rating and 20A continuous drain current capability, this device combines reliability with efficiency for industrial and automotive systems requiring high thermal stability and low on-resistance.
Advanced MDmesh™ Technology
Utilizing ST's proprietary MDmesh™ technology, the STW20NM60 optimizes the balance between conduction and switching losses. The device achieves a maximum RDS(on) of just 290mΩ at 10A and 10V gate-source voltage, significantly reducing power dissipation in high-frequency operations. This innovation enables designers to create compact, energy-efficient systems while maintaining exceptional thermal performance.
Engineered for harsh environments, this TO-247-3 packaged MOSFET operates reliably at junction temperatures up to 150°C. The ±30V gate-source voltage tolerance provides enhanced protection against voltage spikes, while the 54nC gate charge (at 10V) ensures fast switching transitions with minimal driver requirements.
Comprehensive Electrical Specifications
| Parameter | Value |
| Drain-Source Voltage | 600V |
| Continuous Drain Current | 20A (at 25°C case temperature) |
| Max RDS(on) | 290mΩ @ 10A, 10V VGS |
| Gate Threshold Voltage | 5V @ 250μA |
| Input Capacitance | 1500pF @ 25V VDS |
Design Versatility
The STW20NM60's through-hole TO-247-3 package simplifies thermal management in high-power applications. Its 192W maximum power dissipation (at case temperature) supports operation in demanding environments, making it ideal for motor drives, power supplies, and industrial automation systems. The device's 10V gate drive optimization ensures compatibility with standard driver ICs while maintaining minimal conduction losses.
This AEC-Q101 qualified MOSFET is particularly suited for automotive applications requiring robust performance under extreme conditions. Its inherent reliability and STMicroelectronics' industry-leading quality standards make it a preferred choice for critical power conversion systems.
