STMicroelectronics STP65N045M9 N-Channel MOSFET 650V 45mΩ

High-Performance STP65N045M9 N-Channel MOSFET for Demanding Power Applications

In today's rapidly evolving power electronics landscape, engineers require components that combine exceptional performance, reliability, and efficiency. The STP65N045M9 N-Channel MOSFET from STMicroelectronics emerges as a groundbreaking solution for high-voltage applications, offering unparalleled specifications that redefine industry standards. This advanced power transistor operates at 650V with an ultra-low on-resistance of 45mΩ, making it ideal for applications ranging from industrial motor drives to renewable energy systems.

Exceptional Electrical Characteristics

Engineered with cutting-edge technology, the STP65N045M9 delivers remarkable electrical performance. Its 650V drain-source voltage rating enables operation in high-voltage environments while maintaining exceptional stability. The device's 45mΩ typical on-resistance ensures minimal power loss during conduction, translating to improved energy efficiency and reduced thermal management requirements. With a continuous drain current capacity of 55A at 25°C, this MOSFET handles demanding power loads while maintaining exceptional reliability.

Innovative Design Features

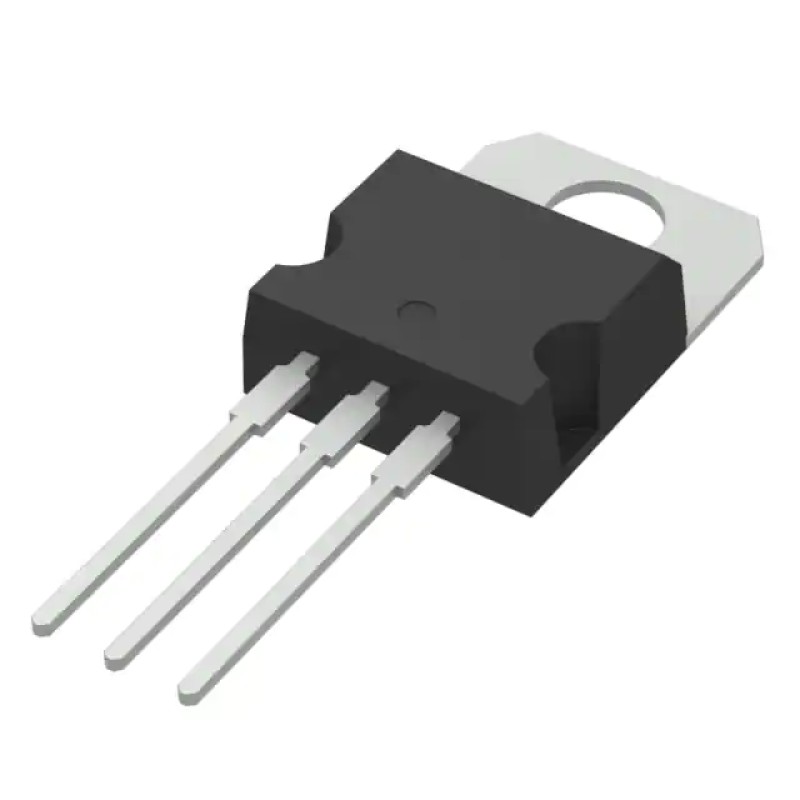

STMicroelectronics' proprietary manufacturing processes have produced a MOSFET that excels in both performance and durability. The device's ±30V gate-source voltage rating provides exceptional protection against voltage transients, while its 4610pF input capacitance ensures fast switching characteristics. The through-hole TO-220 packaging facilitates efficient heat dissipation, maintaining optimal operating temperatures even under maximum load conditions. This combination of electrical and mechanical design makes the STP65N045M9 suitable for applications in harsh environments where reliability is paramount.

Wide Range of Applications

The STP65N045M9's versatility shines across multiple industries. In industrial automation, it serves as the perfect solution for high-power motor controllers and factory automation systems. Renewable energy applications benefit from its 650V capability in solar inverters and energy storage systems. Automotive engineers utilize its robust characteristics in electric vehicle charging systems and onboard power management circuits. The device's 245W power dissipation rating makes it ideal for high-frequency switching applications where thermal performance is critical.

Advanced Thermal Management

Engineered for maximum thermal efficiency, this MOSFET combines its low on-resistance with optimized packaging to deliver superior heat dissipation. The TO-220 enclosure's thermal characteristics, combined with the device's inherent efficiency, enable operation in extreme temperature environments. With a maximum operating temperature of 150°C, the STP65N045M9 maintains performance integrity in challenging conditions where other components might fail. This thermal resilience contributes to extended system lifetimes and reduced maintenance requirements.

Future-Proof Technology

As industries transition to more energy-efficient systems, the STP65N045M9 provides a foundation for next-generation designs. Its compatibility with modern gate drivers and support for high switching frequencies make it suitable for advanced power conversion topologies. The device's active status in STMicroelectronics' product catalog indicates continued support and availability, ensuring long-term design stability for engineering teams. Whether implementing traditional power supplies or developing cutting-edge energy systems, this MOSFET offers the perfect balance of performance and reliability.
