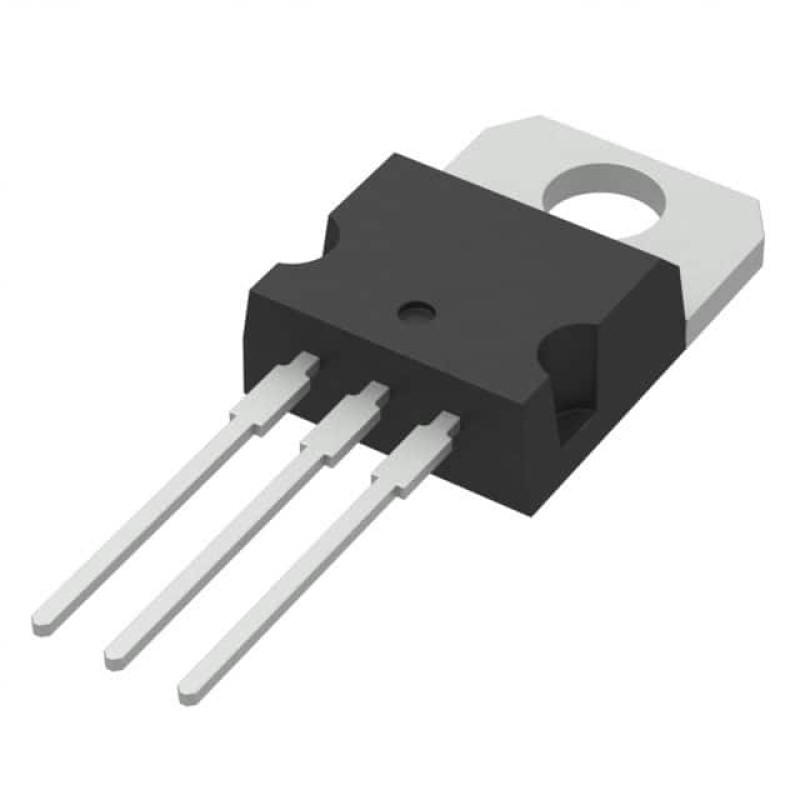

STP24N60M6 MDmesh™ M6 Series N-Channel MOSFET 600V TO-220

The STP24N60M6 from STMicroelectronics represents a breakthrough in power semiconductor technology, combining advanced MDmesh™ M6 design with exceptional performance characteristics for demanding industrial and automotive applications. This N-Channel Power MOSFET, housed in a robust TO-220 package, delivers reliable operation under extreme conditions while maintaining optimal efficiency.

Advanced Silicon Technology

Engineered with STMicroelectronics' proprietary MDmesh™ M6 technology, this device achieves an unprecedented balance between conduction and switching losses. The innovative design reduces gate charge while maintaining low RDS(on), resulting in superior thermal performance and energy efficiency. With a rated drain-source voltage of 600V and continuous drain current capability of 17A at 25°C, it's specifically designed for high-voltage switching applications where reliability and performance are paramount.

Key Technical Specifications

The through-hole mounting configuration ensures mechanical stability and excellent thermal dissipation characteristics. The device's inherent design features minimize parasitic inductances while maintaining high ruggedness characteristics, making it ideal for challenging environments.

Industrial Applications

This high-performance MOSFET finds application in a wide range of industrial equipment including motor drives, power supplies, and welding machines. The device's thermal stability and avalanche energy ratings make it particularly suitable for:

• Switch-mode power supplies (SMPS)
• Uninterruptible power supplies (UPS)
• Metal halide lighting systems
• Inductive load switching

Design Advantages

The STP24N60M6 offers several distinct advantages over conventional power MOSFETs:

• Enhanced switching performance through optimized gate charge characteristics
• Improved thermal management via low on-state resistance
• High avalanche energy ratings for improved device ruggedness
• Compliant with RoHS and REACH environmental standards

When compared to previous generation devices, the MDmesh™ M6 technology demonstrates a 20% reduction in conduction losses while maintaining equivalent switching performance. This makes it particularly suitable for applications requiring both high efficiency and compact form factors.

Technical Comparison

The device's packaging in standard TO-220 tubes ensures compatibility with existing manufacturing processes while maintaining optimal handling characteristics. The part's high reliability and long-term availability make it an ideal choice for critical industrial applications requiring extended operational lifetimes.
