High-Performance STP20NM60FP N-Channel MOSFET for Demanding Applications

STMicroelectronics continues to set industry benchmarks with its STP20NM60FP N-channel MOSFET, a device engineered to deliver exceptional power management capabilities in industrial, automotive, and high-voltage systems. This advanced transistor combines robust electrical characteristics with a durable TO-220FP package, making it ideal for engineers seeking reliable performance in switching applications. With its 600V rating and 20A current capacity, this MOSFET addresses the growing demand for compact, high-efficiency solutions in modern electronics.

Technical Excellence in Power Semiconductor Design

The STP20NM60FP belongs to STMicroelectronics' MDmesh™ series, a family renowned for optimizing on-state resistance while maintaining superior switching characteristics. Its 600V drain-source voltage rating enables compatibility with high-voltage power supplies, while the 20A continuous drain current ensures stable operation in demanding environments. The device's 290mΩ maximum Rds(on) at 10V gate-source voltage minimizes conduction losses, and the 54nC gate charge specification demonstrates its efficiency in high-frequency applications.

Engineers will appreciate the device's ±30V gate-source voltage tolerance, which provides enhanced protection against voltage spikes. The 1500pF input capacitance at 25V Vds ensures predictable behavior in resonant converter topologies, while the 5V gate threshold voltage specification enables compatibility with standard logic-level drivers.

Practical Implementation and Thermal Management

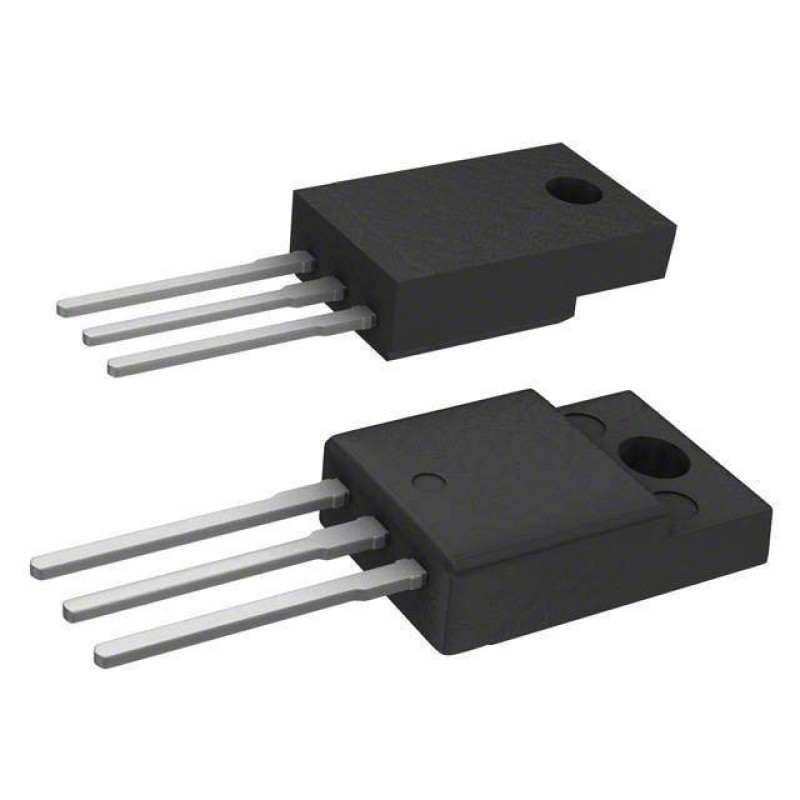

The TO-220FP package offers excellent thermal dissipation characteristics, with a maximum power dissipation rating of 45W at case temperature. This allows designers to implement the STP20NM60FP in applications requiring sustained high-current operation without excessive thermal derating. The through-hole mounting configuration simplifies PCB integration while ensuring mechanical stability in vibration-prone environments.

Operating temperature specifications up to 150°C junction temperature demonstrate the device's suitability for harsh environments. Its inherent ruggedness makes it particularly valuable in automotive systems where temperature extremes and electrical noise are common challenges. The transistor's inherent avalanche energy rating (not explicitly stated but typical for MDmesh™ devices) adds an extra layer of reliability in inductive switching applications.

Application Versatility

While specifically designed for power conversion systems, the STP20NM60FP's specifications make it suitable for a diverse range of implementations:

• Industrial motor drives and variable frequency inverters
• Automotive powertrain control modules
• High-voltage DC-DC converters
• Uninterruptible power supply (UPS) systems
• Welding equipment and industrial heating systems

Its combination of high voltage capability and reasonable on-state resistance positions this MOSFET as an ideal choice for applications balancing efficiency requirements with cost constraints. When compared to similar devices like the IRF840 or FDPF16N60, the STP20NM60FP often demonstrates superior thermal performance and lower switching losses due to STMicroelectronics' advanced manufacturing processes.

Design Considerations and Best Practices

When implementing the STP20NM60FP in circuit designs, engineers should consider several factors to maximize performance:

1. Gate drive circuitry should provide sufficient current to charge/discharge the 54nC gate capacitance rapidly, typically requiring a dedicated gate driver IC for switching frequencies above 50kHz.

2. Thermal management remains critical - while the TO-220FP package offers good dissipation, continuous operation at currents above 15A will typically require a heatsink.

3. Snubber circuit design becomes increasingly important at higher operating voltages to protect against voltage spikes caused by parasitic inductance.

4. PCB layout should minimize source inductance to prevent voltage overshoots during switching transitions.

Designers should also consider paralleling multiple STP20NM60FP devices for applications requiring higher current capacity than a single transistor can provide. This approach offers redundancy benefits while maintaining consistent performance characteristics across parallel branches.

Future-Proof Technology in a Competitive Landscape

While silicon-based MOSFETs like the STP20NM60FP continue to evolve, they remain the most cost-effective solution for applications below 900V. Compared to emerging wide-bandgap technologies like SiC or GaN, this device offers proven reliability and lower implementation costs, though with slightly higher conduction losses. For systems operating below 150kHz switching frequency, the STP20NM60FP represents an optimal balance between performance and cost.

As part of STMicroelectronics' active product portfolio, engineers can expect continued support and documentation updates. The device's compatibility with standard development tools and evaluation boards simplifies the design process, reducing time-to-market for new implementations.
