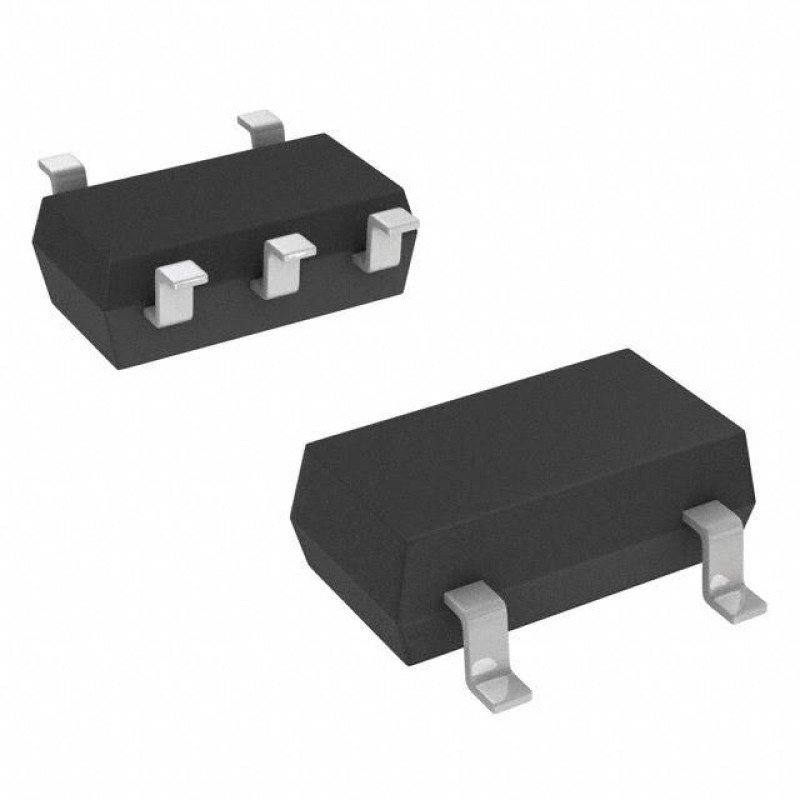

STMicroelectronics TSV611ICT General Purpose Operational Amplifier
- Brand: STMicroelectronics
- Product Code: TSV611ICT
- Availability: In Stock
$0.34
- Ex Tax: $0.34
STMicroelectronics TSV611ICT: High-Performance Operational Amplifier for Modern Electronics
The STMicroelectronics TSV611ICT is a versatile general-purpose operational amplifier designed to meet the demands of modern electronic applications. With its unique combination of low power consumption, rail-to-rail output, and precision performance, this SC-70-5 packaged amplifier serves as an ideal solution for engineers working on battery-powered devices, sensor interfaces, and portable equipment. The device's 120 kHz gain bandwidth product and 0.04V/µs slew rate deliver optimal performance for low-frequency signal conditioning tasks while maintaining exceptional stability across operating conditions.
Technical Excellence in Miniature Packaging
Measuring just 5-TSSOP (SC-70-5) package dimensions, this operational amplifier combines space-saving design with robust electrical characteristics. Its 1.5V to 5.5V wide supply voltage range enables seamless integration into both single-cell battery systems and standard 3.3V/5V logic circuits. The -40°C to 85°C operating temperature range ensures reliable performance in industrial environments, while the surface-mount design simplifies automated PCB assembly processes.
| Parameter | Specification |
|---|---|
| Supply Current | 10.5µA |
| Input Offset Voltage | 4 mV |
| Output Current | 63 mA |
Optimized for Precision Applications
With an impressive 1 pA input bias current and rail-to-rail output swing capability, the TSV611ICT excels in applications requiring accurate signal amplification. Its 120 kHz bandwidth makes it particularly suitable for sensor signal conditioning circuits in IoT devices, wearable technology, and precision measurement equipment. The amplifier's low quiescent current consumption (10.5µA) extends battery life in portable applications while maintaining sufficient output drive capability for direct interfacing with analog-to-digital converters.
Engineers will appreciate the device's inherent stability and ease of use, requiring minimal external compensation components. The SC-70-5 package's thermal performance ensures reliable operation in high-density PCB layouts, while the amplifier's ESD protection features enhance manufacturing robustness. These characteristics make the TSV611ICT an excellent choice for applications ranging from industrial control systems to medical instrumentation and automotive sensor interfaces.
Tags: General Purpose Amplifier, Surface Mount IC, Industrial Electronics, Precision Measurement, Battery-Powered Devices
