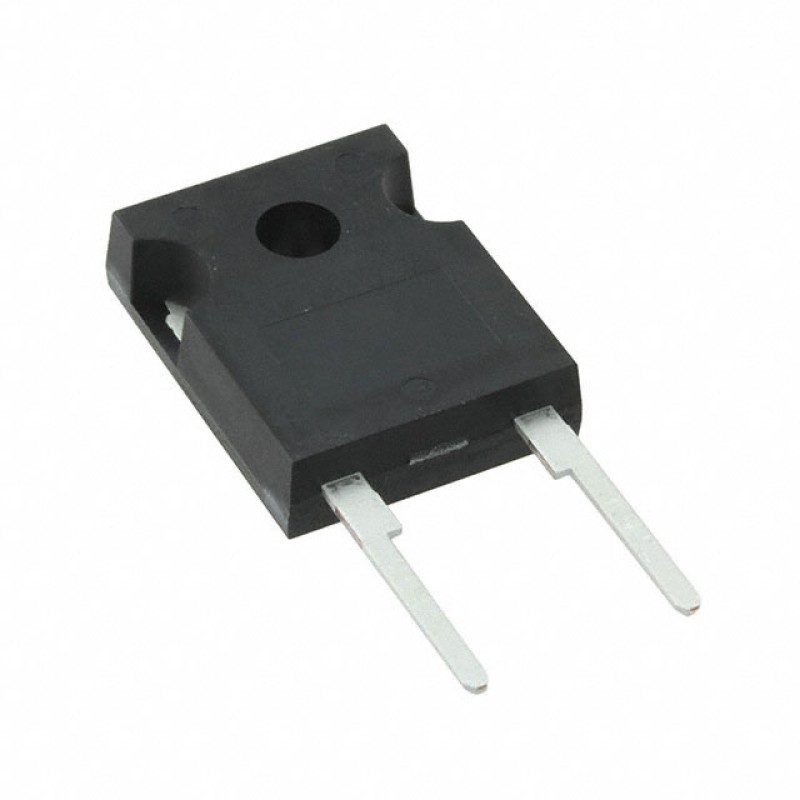

STMicroelectronics STTH6012W High-Voltage Standard Diode - 1200V 60A DO-247 Package
- Brand: STMicroelectronics
- Product Code: STTH6012W
- Availability: In Stock
$2.45
- Ex Tax: $2.45
Reliable High-Power Diode for Demanding Applications
In modern power electronics, components must balance performance, durability, and efficiency. The STTH6012W from STMicroelectronics exemplifies this balance, offering engineers a robust solution for high-voltage applications requiring reliable rectification at extreme operating conditions. This standard diode combines exceptional electrical characteristics with industrial-grade packaging to deliver consistent performance in power conversion systems.
Technical Excellence in Power Handling
Designed for high-voltage environments, the STTH6012W features a maximum reverse voltage rating of 1200V and can handle continuous forward currents up to 60A. Its 2.25V forward voltage drop at rated current minimizes conduction losses while maintaining thermal stability. The device's fast recovery time of 125ns makes it particularly suitable for switching applications where efficiency and transient response matter.
Engineered for harsh operating conditions, this diode maintains functionality at junction temperatures up to 175°C. Its 30µA reverse leakage current at maximum voltage ensures minimal standby losses, while the through-hole DO-247 package provides mechanical stability and effective heat dissipation for demanding industrial environments.
| Parameter | Value |
|---|---|
| Max Reverse Voltage | 1200V |
| Forward Current | 60A |
| Recovery Time | 125ns |
| Operating Temperature | Up to 175°C |
Industrial Application Versatility
This diode's specifications make it ideal for various power electronics applications including industrial power supplies, motor drives, welding equipment, and renewable energy systems. The DO-247 package's mechanical robustness and the device's thermal resilience enable reliable operation in challenging environments where vibration and temperature extremes might compromise lesser components.
STMicroelectronics' commitment to quality shines through in the STTH6012W's construction. The device meets rigorous industry standards for reliability and performance, making it a trusted choice for engineers developing critical systems where component failure isn't an option. Its through-hole mounting configuration simplifies PCB integration while ensuring strong mechanical connections for long-term reliability.
Design Advantages
By combining high voltage capability with fast recovery characteristics, this diode offers significant design flexibility. Engineers can leverage its performance envelope to create more compact power supplies with improved efficiency metrics. The device's thermal characteristics allow for operation in high-temperature environments without derating, while its low leakage current preserves energy efficiency during standby modes.
For designers working on next-generation power electronics, the STTH6012W represents a proven solution that balances cutting-edge performance with field-tested reliability. When integrated into modern power conversion systems, this diode contributes to reduced system losses, enhanced thermal management, and overall improved operational efficiency.
