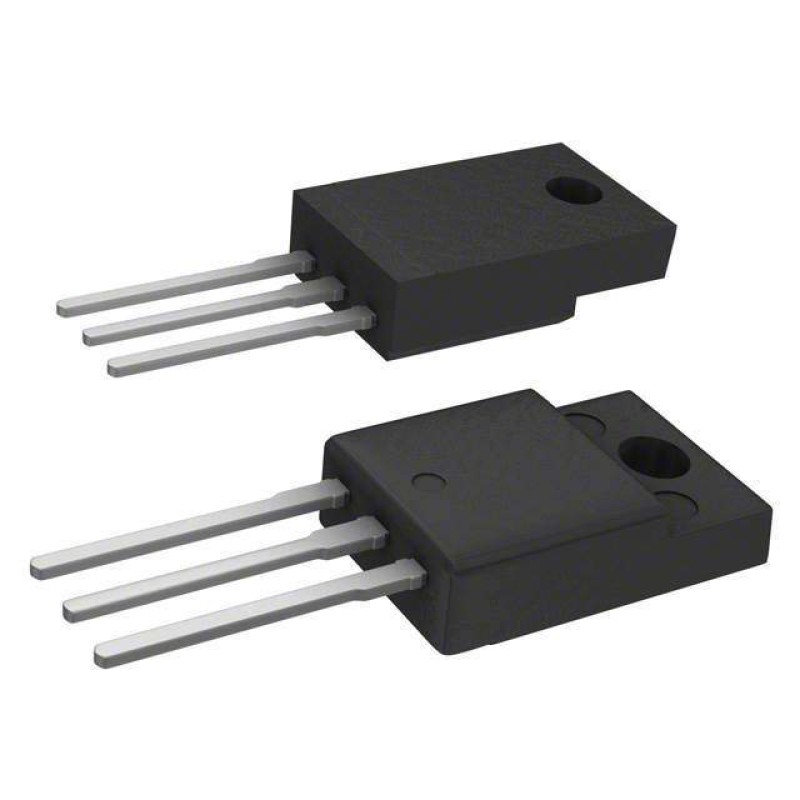

STMicroelectronics STP6NK60ZFP MOSFET N-Channel 600V 6A TO220FP
- Brand: STMicroelectronics
- Product Code: STP6NK60ZFP
- Availability: In Stock
$0.30
- Ex Tax: $0.30
STP6NK60ZFP MOSFET: High-Performance Power Transistor for Demanding Applications
The STP6NK60ZFP from STMicroelectronics is a cutting-edge N-Channel MOSFET engineered for high-voltage applications requiring exceptional reliability and efficiency. Designed with advanced SuperMESH™ technology, this 600V, 6A power transistor delivers superior thermal stability and low on-resistance, making it ideal for industrial power supplies, motor controls, and automotive systems. With its robust TO-220FP package and through-hole mounting configuration, this device combines mechanical durability with optimized electrical performance.
Operating at the intersection of power handling and efficiency, the STP6NK60ZFP features a maximum drain-source voltage (Vdss) of 600V and continuous drain current of 6A at 25°C. Its advanced gate charge optimization (46nC @ 10V) enables fast switching capabilities while maintaining minimal conduction losses. The device's ±30V gate-source voltage tolerance ensures compatibility with standard driver circuits, while its 1.2Ω maximum Rds(on) at 3A/10V guarantees reduced power dissipation even under heavy load conditions.
Technical Excellence in Power Electronics
Engineered for modern power conversion systems, this MOSFET exhibits exceptional thermal performance with a maximum power dissipation of 30W (Tc). Its operating temperature range (-55°C to 150°C) ensures reliable operation in extreme environments, while the 905pF input capacitance (Ciss) at 25V enables efficient high-frequency switching. The device's 4.5V gate threshold voltage (Vgs(th)) at 100µA guarantees stable operation across varying temperature conditions, making it suitable for both industrial and automotive applications.
Key electrical characteristics include:
| Parameter | Value |
|---|---|
| Max Vdss | 600V |
| Continuous Id | 6A (Tc) |
| Rds(on) Max | 1.2Ω @ 3A, 10V |
| Gate Charge | 46nC @ 10V |
| Operating Temp | -55°C ~ 150°C |
The STP6NK60ZFP's TO-220FP package provides excellent thermal management through its full-pack configuration, ensuring efficient heat dissipation in power-intensive applications. This device is specifically designed for applications requiring high breakdown voltage tolerance and minimal conduction losses, including AC/DC converters, LED lighting systems, and motor driver circuits.
Industrial and Automotive Applications
With its robust design and STMicroelectronics' proven SuperMESH™ technology, this MOSFET excels in demanding environments. Its 600V rating makes it particularly suitable for industrial power supplies, uninterruptible power systems (UPS), and electric vehicle charging infrastructure. The device's thermal stability and low on-resistance characteristics also make it an excellent choice for solar inverters, motor control systems, and industrial automation equipment where energy efficiency and reliability are critical.
Engineers will appreciate the device's compatibility with standard gate drivers thanks to its 10V drive voltage specification. The through-hole mounting configuration ensures mechanical stability in vibration-prone environments, while the TO-220-3 package format offers convenient heat sinking options. As a 'Not For New Designs' part, it maintains backward compatibility with existing systems while providing a proven performance profile for maintenance and replacement scenarios.
