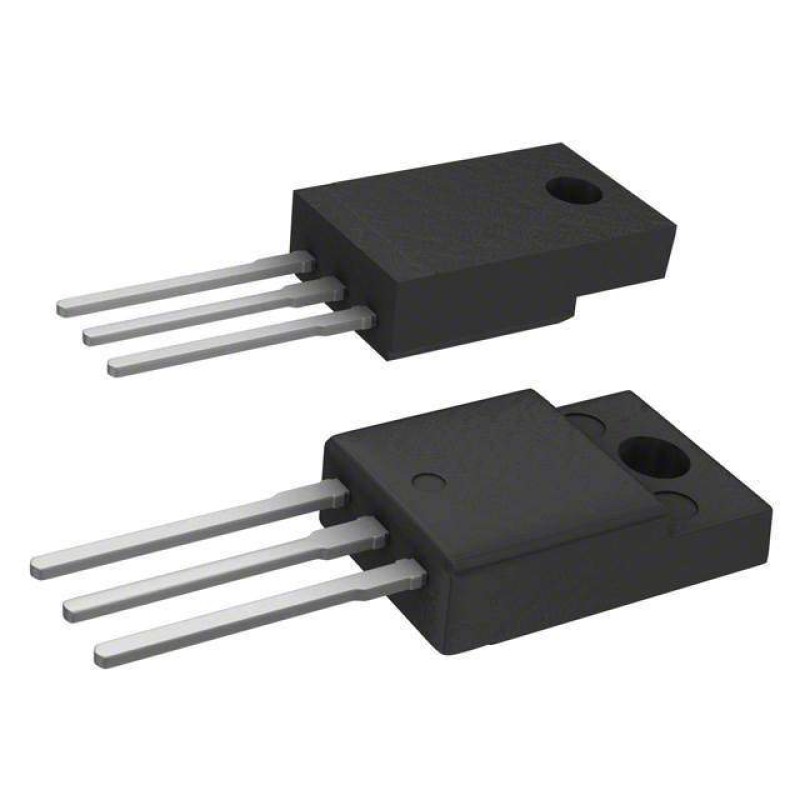

STMicroelectronics STF3NK80Z 800V 2.5A N-Channel MOSFET - TO-220FP

Revolutionizing Power Management with STMicroelectronics STF3NK80Z MOSFET

In the ever-evolving landscape of power electronics, the STMicroelectronics STF3NK80Z emerges as a game-changer for engineers seeking exceptional performance in high-voltage applications. This advanced N-channel MOSFET combines cutting-edge SuperMESH™ technology with robust design specifications to deliver unparalleled efficiency and reliability in demanding environments. Whether you're designing industrial power supplies, motor control systems, or renewable energy solutions, this component represents the perfect balance between technical excellence and practical implementation.

Technical Excellence in Every Detail

Beneath its TO-220FP package lies a semiconductor marvel engineered for precision performance. The STF3NK80Z's 800V drain-source voltage rating positions it as an ideal candidate for high-voltage switching applications, while its 2.5A continuous drain current capability ensures stable operation even under substantial load conditions. The device's 4.5Ω maximum Rds(on) at 1.25A and 10V gate drive strikes an optimal balance between conduction losses and switching efficiency, making it particularly valuable in power conversion systems where thermal management is critical.

One of the most impressive aspects of this MOSFET is its exceptional gate charge characteristic, with just 19nC at 10V Vgs. This low gate charge translates to faster switching speeds and reduced driver power requirements, a crucial advantage in high-frequency applications. The ±30V gate voltage rating provides additional design flexibility, while the 485pF input capacitance at 25V Vds ensures stable operation in high-speed switching scenarios.

Engineered for Real-World Applications

The STF3NK80Z's design considerations extend beyond basic electrical specifications. Its through-hole mounting configuration and TO-220-3 full pack packaging make it particularly suitable for applications requiring mechanical stability and efficient heat dissipation. The device's operating temperature range of -55°C to 150°C demonstrates its adaptability to extreme environmental conditions, from industrial ovens to outdoor power systems.

In practical implementation scenarios, this MOSFET shines in several key areas. Its characteristics make it particularly well-suited for switch-mode power supplies (SMPS), where its high voltage rating and low conduction losses contribute to improved system efficiency. In motor control applications, the device's fast switching capabilities enable precise PWM control, while its thermal stability ensures reliable operation in demanding industrial environments.

SuperMESH™ Technology Advantages

At the heart of the STF3NK80Z lies STMicroelectronics' proprietary SuperMESH™ technology, a breakthrough in power MOSFET design that dramatically reduces on-resistance while maintaining excellent switching characteristics. This advanced technology enables the device to achieve superior performance metrics across multiple parameters, including its impressive 25W power dissipation rating (at Tc). The technology's optimized cell structure contributes to enhanced avalanche energy capability, making the device more robust in challenging operating conditions.

Design Considerations and Implementation Tips

When integrating the STF3NK80Z into your designs, several factors can help maximize its performance potential. The device's 4.5V gate threshold voltage suggests careful consideration of gate drive circuitry to ensure complete enhancement while maintaining switching efficiency. Designers should pay particular attention to thermal management, given the device's 25W power dissipation rating at Tc, which emphasizes the importance of proper heatsinking in high-power applications.

The device's 50µA threshold voltage specification indicates excellent stability across temperature variations, making it suitable for precision switching applications. For optimal performance in high-frequency circuits, careful layout practices should be employed to minimize parasitic inductances that could affect switching characteristics.

Future-Proof Power Solutions

As industries continue their march toward greater energy efficiency and miniaturization, components like the STF3NK80Z become increasingly valuable. Its combination of high voltage capability, reasonable on-resistance, and excellent thermal characteristics position it well for both current and next-generation power designs. Whether in server power supplies requiring high reliability or renewable energy systems demanding robust performance, this MOSFET offers a compelling solution that balances technical specifications with real-world implementation requirements.

Tags: Power MOSFET, High Voltage Transistor, Industrial Electronics, TO-220FP Components, STMicroelectronics Parts
