STMicroelectronics STD6N62K3 SuperMESH3™ N-Channel MOSFET
- Brand: STMicroelectronics
- Product Code: STD6N62K3
- Availability: In Stock
$0.60
- Ex Tax: $0.60
High-Performance Power Management with STMicroelectronics STD6N62K3
Engineered for demanding power applications, the STMicroelectronics STD6N62K3 N-Channel MOSFET represents the cutting-edge SuperMESH3™ technology designed to optimize efficiency and reliability in modern electronic systems. This high-voltage power transistor combines exceptional electrical characteristics with robust thermal performance, making it an ideal choice for industrial power supplies, motor controls, and energy-efficient converters.
Technical Excellence in Power Semiconductor Design
Delivering exceptional performance specifications, the STD6N62K3 features a 620V drain-source voltage rating and 5.5A continuous drain current capacity at 25°C. Its advanced MOSFET structure achieves a remarkably low 1.28Ω on-resistance at 2.8A and 10V gate-source voltage, significantly reducing conduction losses. The device's gate charge characteristic of 25.7nC at 10V further enhances switching efficiency, while maintaining a maximum power dissipation capacity of 90W under standard thermal conditions.
| Parameter | Value |
|---|---|
| Breakdown Voltage | 620V |
| Continuous Drain Current | 5.5A |
| On-Resistance | 1.28Ω |
| Gate Charge | 25.7nC |
| Operating Temperature | 150°C |
Reliability and Versatility in Power Applications

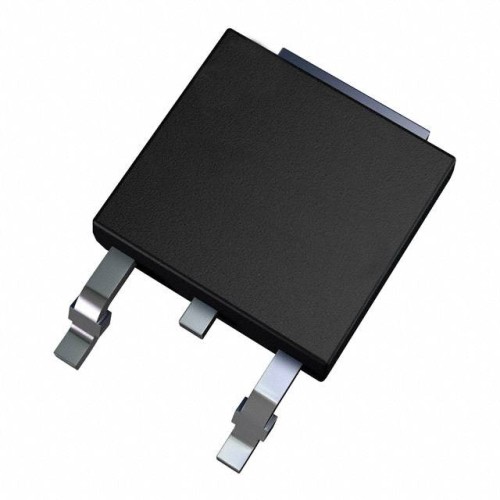

With its ±30V gate-source voltage tolerance and 706pF input capacitance at 50V, this DPAK packaged MOSFET demonstrates exceptional stability in high-stress environments. The surface-mount design facilitates efficient heat dissipation through its TO-252-3 package configuration, ensuring reliable operation in challenging thermal conditions. The device's 4.5V gate threshold voltage at 50µA enables precise control in various switching applications.
This power transistor is specifically designed for applications requiring high voltage resistance and efficient power delivery. Its SuperMESH3™ technology combines optimized die design with advanced packaging to deliver superior performance in AC-DC converters, DC-DC power supplies, and industrial motor control systems. The component's 150°C maximum operating temperature ensures reliable performance in demanding environments.
Comprehensive Packaging and Handling
Available in Tape & Reel (TR) packaging, the STD6N62K3 facilitates automated assembly processes while maintaining component integrity. With a current stock quantity of 7,500 units and active product status, this STMicroelectronics device offers excellent supply chain reliability for production environments. The manufacturer's commitment to quality is evident in the device's comprehensive specification compliance and rigorous testing protocols.
Tags: Power MOSFET, High Voltage, Surface Mount, SuperMESH3 Technology, Efficient Power Management
