STMicroelectronics L7812CV-DG 12V 1.5A Linear Voltage Regulator

STMicroelectronics L7812CV-DG: Precision Voltage Regulation for Demanding Applications

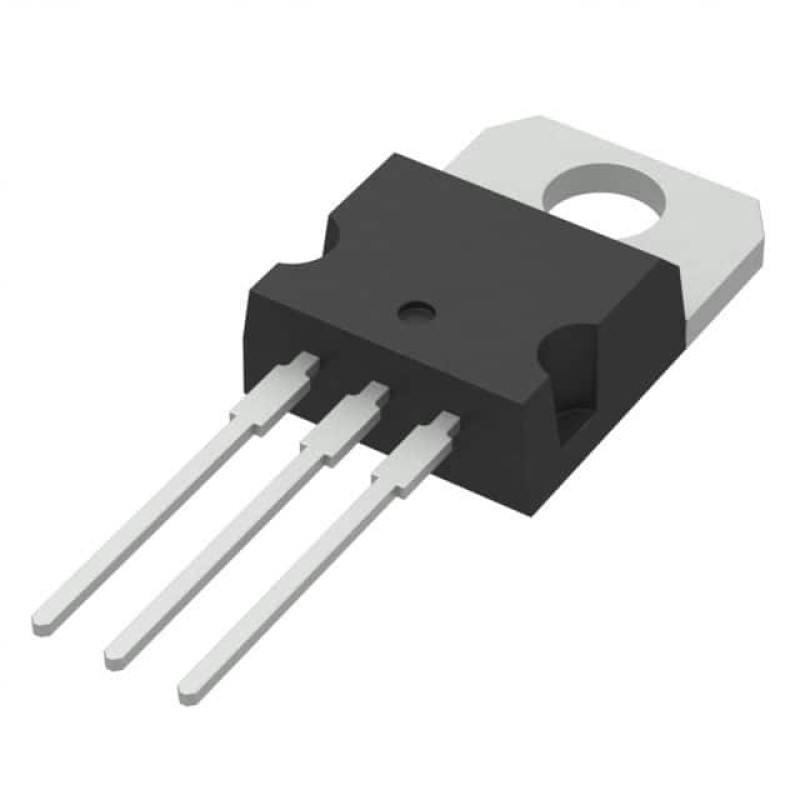

In the ever-evolving world of electronics, maintaining stable voltage levels remains a critical requirement across industries. The STMicroelectronics L7812CV-DG emerges as a reliable solution for engineers and hobbyists alike, offering precise 12V fixed-output regulation with robust thermal protection features. This TO-220 packaged linear regulator demonstrates exceptional performance in power supply circuits, battery charging systems, and industrial control applications where voltage stability is paramount.

Technical Excellence in Voltage Management

Engineered with STMicroelectronics' advanced semiconductor technology, the L7812CV-DG delivers consistent 12V output from input voltages up to 35V. Its inherent design minimizes voltage dropout to just 2V at 1A load, ensuring efficient operation even under fluctuating input conditions. The device's 1.5A output current capability makes it particularly suitable for powering microcontroller systems, sensor arrays, and other mid-range power electronics.

Engineered for Reliability

Beyond basic regulation capabilities, this device incorporates comprehensive protection mechanisms that safeguard both the regulator and connected components. The integrated thermal shutdown circuitry automatically reduces output current when temperatures exceed safe limits, while built-in short-circuit protection prevents damage from accidental load faults. These features make the L7812CV-DG particularly well-suited for rugged industrial environments and automotive applications where component reliability directly impacts system performance.

The through-hole TO-220 package not only facilitates easy installation but also provides excellent thermal dissipation characteristics. When mounted on standard PCBs with appropriate heat sinking, the regulator maintains optimal performance across its entire operating temperature range. Its 8mA quiescent current draw further enhances efficiency, making it an attractive option for power-conscious designs.

Design Flexibility and Application Versatility

While primarily designed as a fixed-voltage regulator, the L7812CV-DG's simple external circuitry requirements allow for creative implementation scenarios. Engineers can utilize it in adjustable configurations with external resistors, or combine multiple units for dual-supply systems. The device's inherent noise rejection capabilities (55dB at 120Hz) make it particularly valuable in audio equipment and precision measurement instruments where clean power delivery directly impacts signal integrity.

From bench power supplies to embedded industrial controllers, this regulator demonstrates consistent performance across diverse applications. Its compatibility with standard electrolytic capacitors simplifies design implementation while maintaining cost-effectiveness. The device's widespread adoption in educational electronics kits further attests to its user-friendly characteristics and reliability for learning environments.

Optimizing Performance in Real-World Applications

For optimal performance, designers should consider implementing proper thermal management strategies when utilizing the L7812CV-DG in high-current applications. While the device can deliver its full 1.5A rating under ideal conditions, prolonged operation at maximum current may require supplemental heat sinking. Calculating power dissipation (Pd = (Vin - Vout) × Iout) becomes essential when designing circuits with significant input-output voltage differentials.

The regulator's stability with various output capacitor types offers additional design flexibility. While typical applications use standard 0.33µF input and 0.1µF output capacitors, designers can optimize performance by selecting capacitors with lower ESR values for specific frequency response requirements. This adaptability makes the L7812CV-DG suitable for both basic voltage regulation needs and more demanding applications requiring precise power conditioning.
