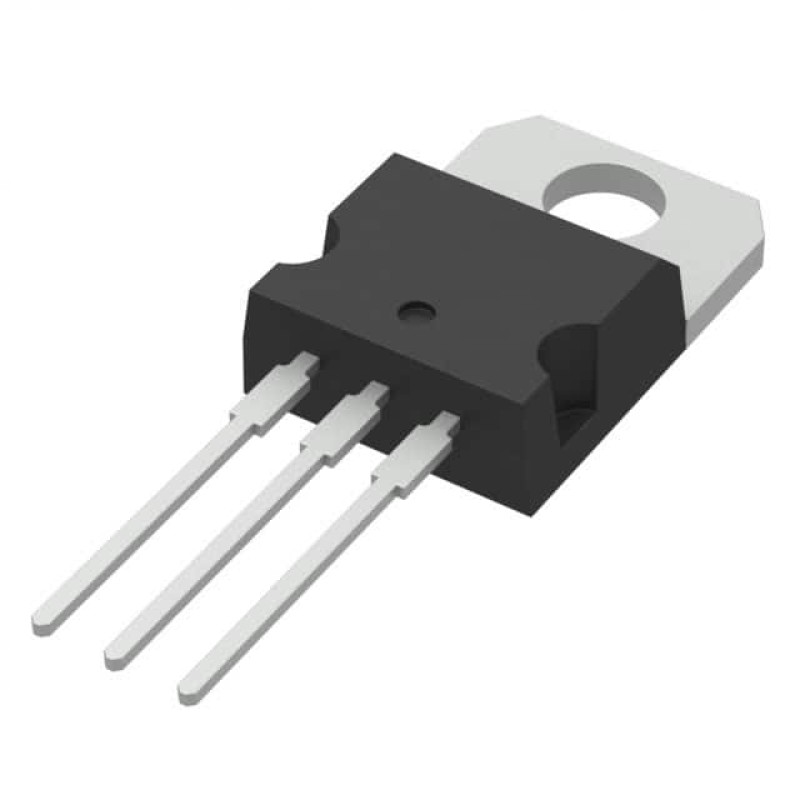

STMicroelectronics L7805CV-DG Linear Voltage Regulator 5V 1.5A TO220

STMicroelectronics L7805CV-DG: Reliable Linear Voltage Regulation for Demanding Applications

The STMicroelectronics L7805CV-DG stands as a benchmark in linear voltage regulation technology, delivering precise 5V output with exceptional stability and robust protection features. This TO220-packaged regulator combines industrial-grade performance with ease of integration, making it an ideal choice for engineers developing power supplies across diverse sectors from consumer electronics to automotive systems.

Core Technical Specifications

Operating within a wide 4.75V to 35V input voltage range, this fixed-output regulator maintains a stable 5V ±2% output across its operational temperature range of 0°C to 125°C. Its advanced thermal management architecture ensures reliable operation even under full 1.5A load conditions, with typical dropout voltage of just 2V at 1A current draw. The device's quiescent current remains exceptionally low at 8mA, contributing to overall system efficiency.

Advanced Protection Architecture

Engineered for reliability, the L7805CV-DG incorporates comprehensive protection mechanisms including thermal shutdown and output current limiting. These features create a robust defense against common failure modes, preventing damage from short circuits, overloads, and excessive junction temperatures. The device's inherent stability requires only minimal external capacitive filtering, simplifying implementation in space-constrained designs.

Its TO220-3 package provides excellent thermal dissipation characteristics, enabling operation in high-temperature environments without derating. This mechanical robustness combined with automotive-grade temperature specifications makes it particularly suitable for under-hood automotive applications and industrial control systems where reliability is paramount.

Design Flexibility and Application Scope

This versatile regulator serves as a foundational component in numerous applications including:

• Industrial process control systems
• Automotive power distribution modules
• Consumer electronics power supplies
• Test and measurement equipment
• Embedded microcontroller power rails

The device's inherent simplicity reduces design complexity while its high PSRR (62dB at 120Hz) ensures clean power delivery even in noisy environments. When compared to switching regulators, the L7805CV-DG offers distinct advantages in applications requiring minimal electromagnetic interference (EMI) and voltage ripple.

Performance Comparison with Competitive Solutions

When benchmarked against alternative voltage regulation solutions, the L7805CV-DG demonstrates superior transient response characteristics and better thermal stability. Its through-hole TO220 packaging facilitates easier heat sinking compared to surface-mount alternatives, while maintaining compatibility with standard PCB assembly processes.
