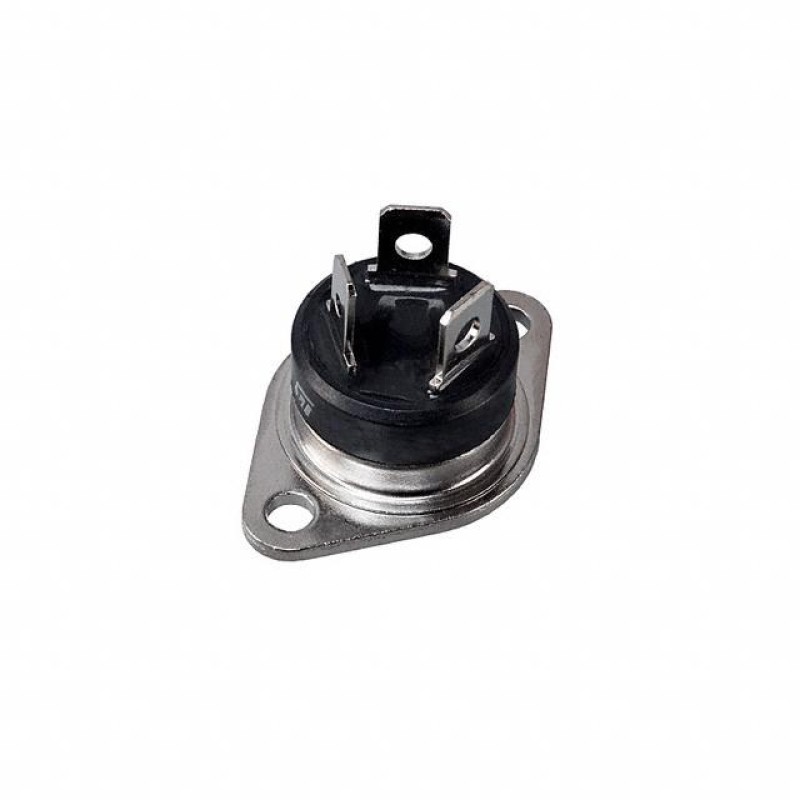

STMicroelectronics BTA40-600B TRIAC 600V 40A RD-91

Unveiling the STMicroelectronics BTA40-600B: A Powerhouse for Demanding Applications

In the world of industrial control systems and high-power electronics, selecting the right component can make all the difference between ordinary performance and exceptional reliability. The STMicroelectronics BTA40-600B TRIAC stands as a testament to engineering excellence, delivering robust power management capabilities for a wide range of applications. Designed for engineers and designers who demand superior electrical characteristics and long-term durability, this semiconductor device combines advanced technology with practical design features.

Key Specifications at a Glance

Before diving into its capabilities, let's examine the core technical parameters that define this power semiconductor:

Engineered for Performance and Reliability

At the heart of the BTA40-600B's impressive capabilities lies its optimized silicon structure, which enables efficient current control while maintaining exceptional thermal stability. This TRIAC excels in managing substantial power loads, making it particularly well-suited for applications requiring precise control of high-voltage AC circuits. Its robust design ensures consistent performance even in challenging operating conditions, a critical factor for industrial equipment and home appliances alike.

The device's RD91-3 (Insulated) package not only facilitates effective heat dissipation but also provides electrical isolation, enhancing safety in high-power applications. The chassis mount design simplifies installation while ensuring mechanical stability, a crucial consideration for systems subject to vibration or thermal cycling.

Advanced Features for Modern Applications

One of the standout characteristics of this TRIAC is its remarkably low gate trigger voltage, which remains below 1.3 V even under worst-case conditions. This feature enables compatibility with a wide range of control circuits, including those using standard logic-level signals. The device's 80 mA maximum hold current ensures stable operation after triggering, while the 50 mA gate trigger current specification allows for efficient control circuit design.

Engineers will appreciate the TRIAC's impressive surge current capability, with ratings of 400A at 50Hz and 420A at 60Hz. This robustness against transient overcurrent conditions makes it particularly suitable for motor control applications where inrush currents can be significant. The component's ability to maintain stable performance across the -40°C to 125°C temperature range ensures reliability in both extreme industrial environments and consumer applications.

Applications Across Industries

The versatility of the BTA40-600B shines through in its diverse range of applications. In industrial settings, it serves as the backbone for motor speed controllers, heating element regulators, and solid-state relay designs. Its high current capacity makes it ideal for HVAC systems, while its precise control characteristics benefit lighting dimming circuits. For consumer electronics, the TRIAC's reliability and efficiency make it a preferred choice for washing machines, ovens, and other large appliances requiring precise power management.

Home automation systems particularly benefit from its combination of high power handling and sensitive gate control. The device's ability to interface seamlessly with modern control systems while managing substantial loads makes it a cornerstone component in smart home technologies. Whether in a factory automation system or a residential lighting controller, this TRIAC provides the critical link between low-voltage control circuits and high-power AC loads.

Quality and Compliance

As part of STMicroelectronics' extensive semiconductor portfolio, the BTA40-600B adheres to the company's rigorous quality standards. Its active production status ensures long-term availability for ongoing projects, while the RD91 package design meets industry-standard safety requirements. The component's specifications align with international standards for semiconductor devices, providing designers with confidence in its performance and reliability.

Design Considerations

When implementing this TRIAC in circuit designs, engineers should consider proper heat sinking to maintain optimal operating temperatures, especially when operating near the 40A RMS current rating. While the device's insulated package simplifies mounting considerations, careful attention to thermal management will ensure maximum longevity and reliability. Designers should also account for the non-repetitive surge current specifications when creating protection circuits, ensuring the TRIAC can withstand expected inrush conditions without degradation.

The device's standard triac type classification means it follows industry-recognized pin configurations and operational characteristics, simplifying replacement and maintenance processes. Its single configuration design streamlines circuit layout while maintaining flexibility for various control schemes.

Conclusion: A Trusted Solution for Power Control Needs

The STMicroelectronics BTA40-600B stands out as a versatile and reliable solution for modern power control applications. Its combination of high voltage and current capabilities with sensitive gate control makes it adaptable to both industrial and consumer electronics environments. Whether designing a new industrial control system, upgrading existing equipment, or developing next-generation home appliances, this TRIAC offers the performance characteristics needed to create efficient, reliable, and cost-effective solutions.

With its comprehensive feature set and proven reliability, the BTA40-600B continues to be a preferred choice for engineers seeking a trusted semiconductor solution for demanding AC power control applications. Its enduring popularity in the market speaks volumes about its performance and the confidence designers place in STMicroelectronics' engineering expertise.
