STM STB7NK80ZT4 N-Channel MOSFET
- Brand: STMicroelectronics
- Product Code: STB7NK80ZT4
- Availability: In Stock
$0.60
- Ex Tax: $0.60
High-Performance STB7NK80ZT4 N-Channel MOSFET for Demanding Power Applications

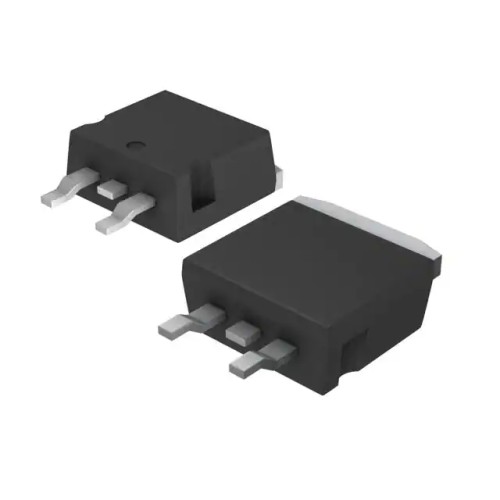

Engineered for exceptional reliability and efficiency, the STM STB7NK80ZT4 N-Channel MOSFET represents the pinnacle of power semiconductor technology from STMicroelectronics. Designed to meet the rigorous demands of modern power electronics, this SuperMESH™ series component combines robust performance characteristics with advanced thermal management capabilities in a compact D2PAK package.
Technical Excellence in Power Management
Operating at an impressive 800V rating with a continuous drain current of 5.2A, this MOSFET delivers superior performance for high-voltage applications. Its optimized Rds(on) of 1.8Ω at 10V gate drive ensures minimal conduction losses, while the integrated SuperMESH™ technology enhances switching efficiency through reduced gate charge (56nC) and input capacitance (1138pF). The device's ±30V gate voltage tolerance provides enhanced protection against voltage spikes, making it ideal for challenging environments.
| Parameter | Value |
|---|---|
| Drain-Source Voltage | 800V |
| Continuous Drain Current | 5.2A |
| Rds(on) Max | 1.8Ω @ 10V |
| Gate Charge | 56nC |
| Operating Temperature | -55°C to 150°C |
Versatile Industrial Applications
This surface-mount power transistor excels in various industrial and commercial applications including: motor drives, power supplies, industrial automation systems, and renewable energy inverters. Its TO-263AB package with enhanced thermal dissipation (125W @ TC) enables reliable operation in high-temperature environments while maintaining electrical stability across extreme temperature ranges.
The STB7NK80ZT4's 4.5V gate threshold voltage ensures compatibility with standard logic-level drivers while maintaining optimal performance in high-speed switching applications. The device's inherent robustness against thermal runaway, combined with its advanced packaging technology, makes it a preferred choice for designers seeking to balance performance with long-term reliability.
Future-Proof Power Electronics Design
As industries continue to demand higher efficiency and miniaturization in power systems, the STB7NK80ZT4 MOSFET offers a compelling solution that meets modern design challenges. Its tape-and-reel packaging facilitates automated assembly processes while maintaining component integrity during manufacturing. The device's active product status from STMicroelectronics ensures ongoing availability and support for long-term projects.
Tags: Power MOSFET, High Voltage Transistor, Surface Mount Device, Electronic Components, Semiconductor Solutions
