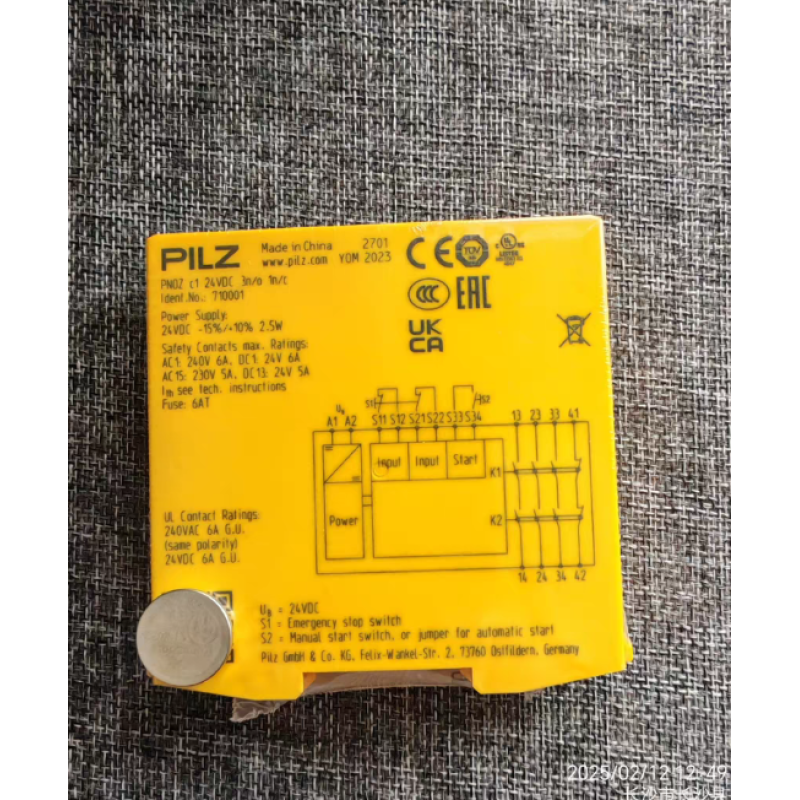

PILZ 710001 Safety Relay - Programmable Industrial Safety Control Core Component
- Product Code: 710001
- Availability: In Stock
$122.43
- Ex Tax: $122.43
Revolutionizing Industrial Safety: The PILZ 710001 safety relay is a high-reliability safety component designed for critical industrial automation applications. As a classic model from PILZ (Germany), this safety relay delivers fault-tolerant protection through redundant relay circuits and intelligent monitoring, effectively preventing unintended machinery startup, operator errors, and electrical faults. Widely used in safety-critical environments such as production lines, machine tools, and material handling systems, the PILZ 710001 combines German engineering excellence with proven safety performance. Available as a genuine German import with one-year warranty and immediate stock availability, it ensures compliance with international safety standards while providing dependable protection for your operations.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | PILZ (Germany) |
| Origin | Genuine German import |
| Type | Safety Relay (Programmable Safety Control Core) |
| Function | Fault-tolerant protection against unintended startup/errors |
| Circuit Design | Redundant relay combination with complementary fault detection |
| Safety Level | High reliability with minimal failure risk |
| Supply Voltage | 24V DC (standard industrial compatibility) |
| Contact Configuration | Multiple NO/NC contacts (varies by variant) |
| Protection Mechanism | Interlock protection, fault diagnosis, auto-reset functions |
| Operating Temperature | -20°C to +60°C (standard industrial range) |
| Package | Standard industrial packaging (ESD-protected) |
| Warranty | One-year manufacturer warranty |
| Availability | In-stock (distributed via Germany/Singapore/Hong Kong/China) |
Advanced Design Features
- Fault-Tolerant Architecture: Redundant relay circuits with complementary monitoring ensure automatic safety shutdown if any component fails, achieving near-zero failure rates for critical operations.
- Multi-Layer Interlock Protection: Combines mechanical and electrical interlocks to prevent unintended machine activation caused by contact welding or circuit faults—ideal for high-risk equipment like presses and shears.
- Intelligent Diagnostics: Built-in status monitoring detects relay wear, coil issues, or circuit abnormalities, providing real-time feedback via indicator lights or external signals for proactive maintenance.
- German Engineering Excellence: 100% manufactured in Germany, certified to CE and international safety standards (IEC/EN), ensuring superior electromagnetic compatibility (EMC) and long-term stability.
- Seamless Integration: Compatible with mainstream PLCs (Siemens, Mitsubishi), sensors (PILZ PNOZ series), and safety buses (PROFIsafe), supporting flexible system design.
Industrial Applications
- Mechanical Safety: Emergency stop control and safety gate interlocking for presses, injection molding machines, stamping equipment, and cutting tools.
- Automated Production Lines: Robot workcells, conveyor systems, and assembly lines requiring personnel protection and hazard zone monitoring.
- Process Industries: Chemical, pharmaceutical, and food processing systems with hazardous operation safety requirements.
- Logistics & Warehousing: AGVs, elevators, and automated storage systems needing fail-safe operation controls.
- Renewable Energy: Battery production lines and solar equipment safety interlocks.
Performance Advantages
- Proven Reliability: Redundant design minimizes failure risks, with MTBF (Mean Time Between Failures) exceeding industry benchmarks.
- Instant Response: Relay actuation time ≤10ms ensures immediate protection during critical incidents.
- Configurable Flexibility: Multiple NO/NC contact options adapt to diverse safety circuit designs (contact capacity varies by variant).
- Easy Maintenance: Modular structure enables quick fault diagnosis and replacement, reducing system downtime.
- Global Compliance: Certified to IEC 60204-1, EN ISO 13849-1, and other international standards for worldwide deployment.
Design Considerations
-
Circuit Design:
- Physically isolate safety relay control circuits from main power circuits to prevent interference.
- Use shielded cables for sensor connections to minimize EMI impact on fault detection.
-
Contact Capacity Matching:
- Select contact ratings (current/voltage) based on load type (resistive/inductive). Add snubber circuits (RC networks) for inductive loads to suppress voltage spikes.
- Verify NO/NC contact specifications against load requirements (refer to variant datasheets).
-
Redundancy Planning:
- For PL e/SIL 3 applications, combine 710001 with additional safety channels (e.g., PNOZmulti) to achieve higher safety integrity levels.
-
Environmental Adaptation:
- Install in control cabinets with proper ventilation; avoid temperatures exceeding 60°C to prevent contact oxidation or performance degradation.
- In humid/dusty environments, use sealed enclosures or protective covers.
-
Maintenance Protocol:
- Inspect contact wear every 6 months or after 100,000 operations; replace contacts/modules as needed.
- Monitor indicator lights for fault alerts and address signals promptly.
Future-Proof Engineering
- Long-Term Supply: PILZ guarantees long-term availability and technical support for the 710001 model, ensuring system sustainability.
- Upgrade Compatibility: Supports integration with advanced safety systems (e.g., PSS 4000) for future scalability to higher safety levels.
- Global Service Network: Authorized distributors (e.g., Wuhan Julixin, Shanghai Dezhu) provide localized technical consultation, installation guidance, and rapid after-sales response.
- Standards Alignment: Continuously updated to meet the latest safety regulations (ISO 13849-1:2015, IEC 62061) for ongoing compliance.
Tags: Industrial Safety, Safety Relay, Programmable Control, Machinery Guarding, Automated Systems, German Engineering, PILZ
