LD1117S25CTR 2.5V 800mA Linear Voltage Regulator IC - STMicroelectronics

Introduction to the LD1117S25CTR Linear Voltage Regulator

The LD1117S25CTR is a high-performance linear voltage regulator from STMicroelectronics, designed for applications requiring stable and low-noise power supply. With its fixed 2.5V output and 800mA current capability, this IC is ideal for a wide range of electronic systems, from consumer electronics to industrial equipment. The device operates efficiently within a broad input voltage range, making it a versatile choice for engineers and designers.

Key Technical Specifications

Why Choose the LD1117S25CTR?

One of the standout features of the LD1117S25CTR is its ability to maintain a stable output voltage even under varying load conditions. The 1.3V dropout voltage ensures minimal power loss, which is critical for energy-efficient designs. Additionally, the built-in overcurrent and overtemperature protection mechanisms provide reliability and safety, reducing the risk of component failure in demanding environments.

Applications and Use Cases

This regulator is particularly well-suited for applications where precision and stability are paramount. For example, in consumer electronics like smartphones and tablets, the LD1117S25CTR ensures consistent power delivery to sensitive components. In industrial settings, it can be used to power sensors, microcontrollers, and other devices that require a clean and stable voltage supply. The wide operating temperature range (-40°C to +125°C) also makes it suitable for automotive and aerospace applications where extreme environmental conditions are common.

Design Considerations and Performance

When integrating the LD1117S25CTR into a circuit, designers should consider its quiescent current of 10mA, which is relatively low compared to similar regulators. This makes it ideal for battery-powered devices where power conservation is essential. The SOT-223 package offers excellent thermal performance, allowing the device to dissipate heat effectively even under heavy load conditions. Additionally, the PSRR (Power Supply Rejection Ratio) of 75dB at 120Hz ensures that the regulator effectively filters out noise from the input power source, providing a clean output for downstream components.

Comparative Analysis with Competitors

Compared to other linear regulators on the market, the LD1117S25CTR offers a compelling combination of performance and reliability. For instance, while some competitors may offer higher output currents, they often come at the cost of increased dropout voltage or reduced thermal efficiency. The LD1117S25CTR’s balance of 800mA current capability with a low 1.3V dropout voltage makes it a superior choice for applications requiring both power and efficiency. Furthermore, STMicroelectronics’ reputation for quality and innovation ensures that this device meets the highest industry standards.

Thermal Management and Packaging

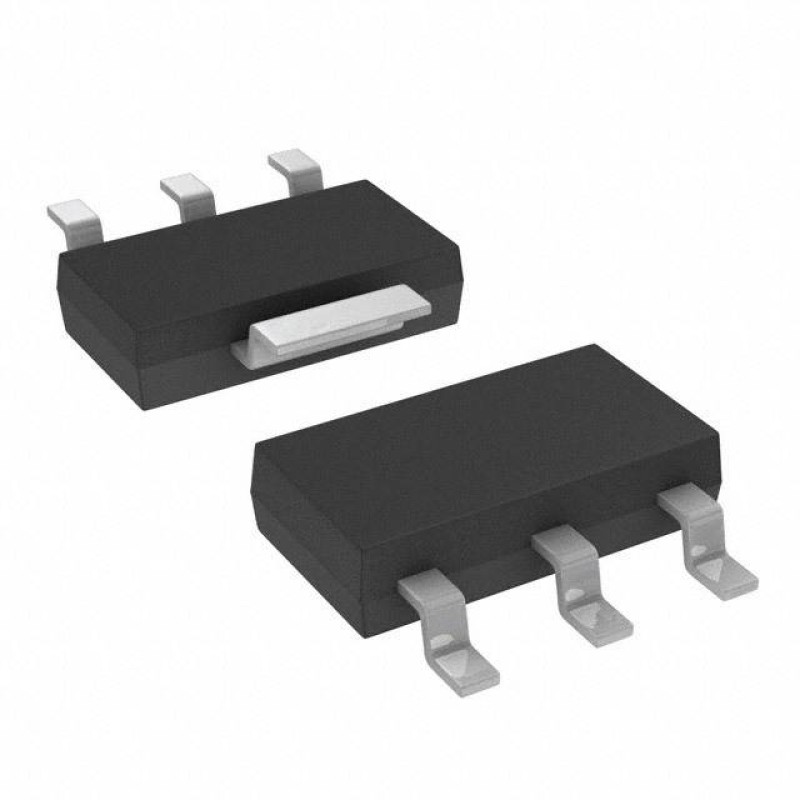

The SOT-223 package used in the LD1117S25CTR is designed for optimal thermal performance. This package type allows for efficient heat dissipation, which is crucial when operating at high currents or in high-temperature environments. The device’s operating temperature range (-40°C to +125°C) further enhances its versatility, enabling use in both extreme cold and hot conditions. Surface-mount design makes it easy to integrate into modern PCBs, reducing assembly time and costs.

Conclusion: A Reliable Choice for Modern Electronics

The LD1117S25CTR from STMicroelectronics is a testament to the company’s commitment to delivering high-quality, reliable components for the electronics industry. With its fixed 2.5V output, 800mA current capability, and robust protection features, this regulator is a versatile solution for a wide range of applications. Whether you’re designing a consumer product, an industrial system, or an automotive component, the LD1117S25CTR provides the performance and stability needed to ensure your device operates at its best. Its competitive pricing and availability in bulk quantities further make it an attractive option for manufacturers and engineers alike.
