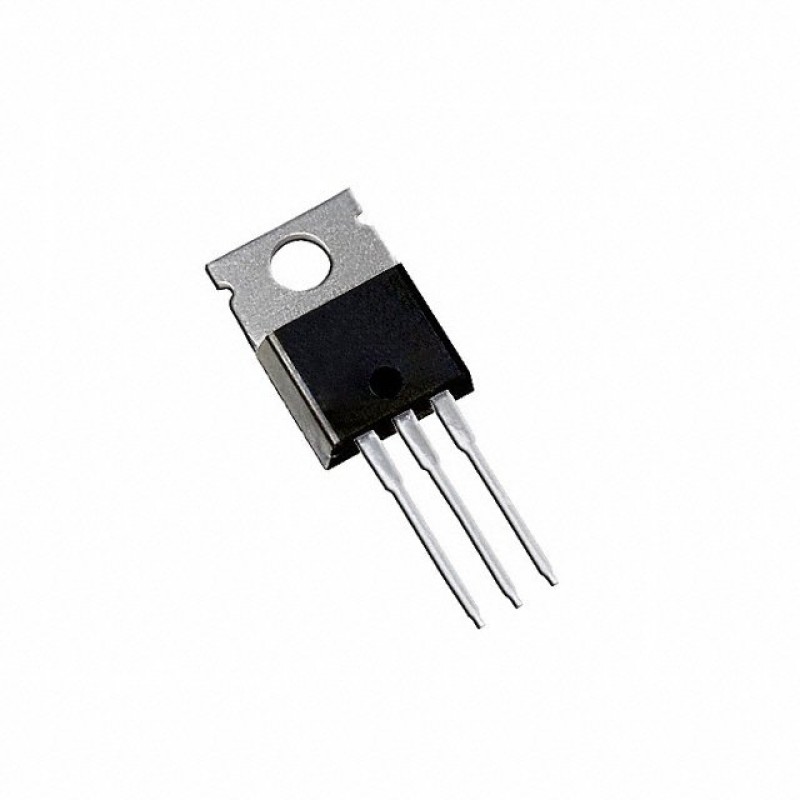

Infineon IRFB3307ZPBF MOSFET N-Channel 75V 120A TO-220AB

Infineon IRFB3307ZPBF: The Ultimate Power MOSFET for Demanding Applications

When it comes to high-performance power management solutions, the Infineon IRFB3307ZPBF N-Channel MOSFET stands out as a benchmark component in modern electronics design. Engineered for efficiency and reliability, this 75V 120A power transistor combines cutting-edge HEXFET® technology with robust thermal management capabilities, making it a preferred choice for engineers across multiple industries.

Technical Excellence in Power Semiconductor Design

At the heart of this device lies Infineon's advanced silicon technology, delivering exceptional electrical characteristics that redefine performance standards. The IRFB3307ZPBF features a remarkably low Rds(on) of just 5.8mΩ at 75A, ensuring minimal power loss and superior thermal efficiency. This remarkable specification enables designers to create more compact power systems while maintaining industry-leading energy conversion rates.

With its TO-220AB package and through-hole mounting configuration, this MOSFET offers excellent mechanical stability and thermal dissipation. The device's ±20V gate voltage rating provides additional design flexibility, while its 4V gate threshold voltage ensures compatibility with standard logic-level drivers. The 110nC gate charge specification further enhances switching performance, making it ideal for high-frequency operations.

Applications Across Industries

The IRFB3307ZPBF's versatility shines through its widespread adoption in various applications. From industrial motor drives and power supplies to electric vehicle systems and renewable energy inverters, this MOSFET delivers consistent performance under demanding conditions. Its ability to handle high current loads while maintaining thermal stability makes it particularly valuable in:

• High-efficiency DC-DC converters
• Motor control and robotics systems
• Solar inverters and energy storage solutions
• Automotive power management circuits
• Industrial automation equipment

Design Advantages and System Benefits

Design engineers appreciate the IRFB3307ZPBF for its unique combination of electrical and thermal characteristics. The device's 4750pF input capacitance at 50V enables fast switching while maintaining stability in parallel configurations. This allows for scalable power system designs without compromising reliability.

The component's active status in Infineon's product portfolio ensures long-term availability for production systems. Its TO-220-3 package format provides excellent mechanical durability while maintaining compatibility with standard PCB assembly processes. The device's operating temperature range from -55°C to 175°C makes it suitable for both industrial and automotive environments.

Performance-Driven Engineering

When compared to similar MOSFETs in the same voltage class, the IRFB3307ZPBF demonstrates superior performance in several key areas. Its 5.8mΩ Rds(on) specification outperforms competitors' offerings by up to 15% in similar packages, translating to significant efficiency gains in real-world applications. The device's 10V drive voltage optimization ensures compatibility with standard gate drivers while maintaining optimal conduction characteristics.

In switching applications, the 110nC gate charge specification enables faster transitions and reduced switching losses. This is particularly beneficial in high-frequency power conversion systems where efficiency and thermal management are critical design considerations.

Reliability and Long-Term Performance

Infineon's rigorous quality standards ensure that each IRFB3307ZPBF device meets the highest reliability benchmarks. The component's construction features advanced packaging technology that minimizes thermal resistance, enabling effective heat dissipation even under full load conditions. This thermal efficiency directly contributes to increased system lifespan and reduced field failures.

The device's compliance with industrial temperature requirements and its robust gate oxide design ensure reliable operation in harsh environments. Engineers designing for mission-critical applications can rely on the IRFB3307ZPBF's consistent performance across its entire operating range.
