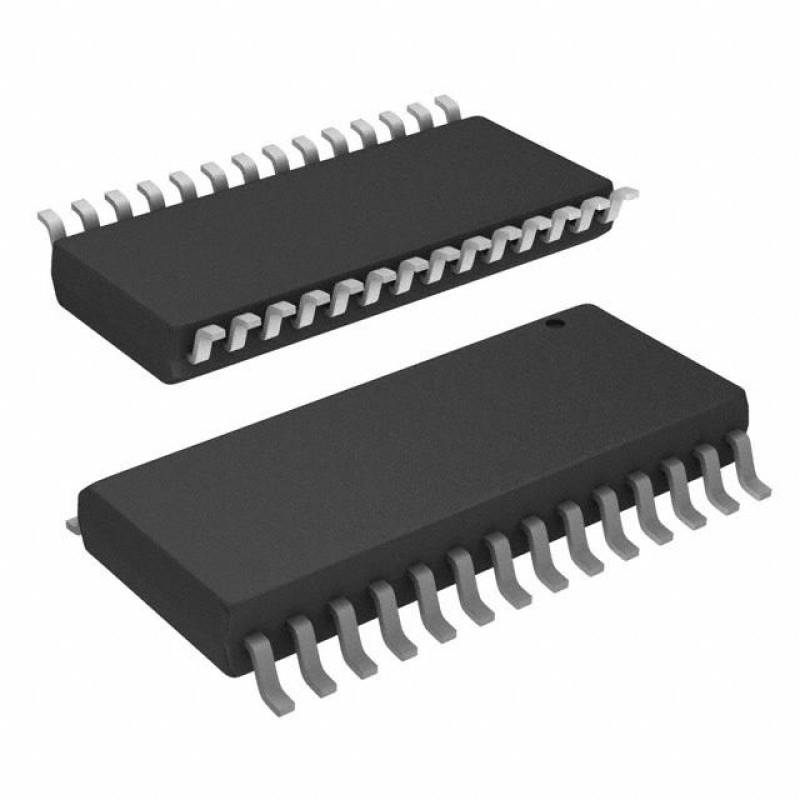

STMicroelectronics VNQ810PTR-E High-Side N-Channel Power Driver IC
- Brand: STMicroelectronics
- Product Code: VNQ810PTR-E
- Availability: In Stock
$5.00
- Ex Tax: $5.00
Advanced Power Management Solutions with STMicroelectronics VNQ810PTR-E
The STMicroelectronics VNQ810PTR-E represents a cutting-edge advancement in power driver technology, designed to meet the demanding requirements of modern industrial automation systems, automotive electronics, and high-precision control applications. This 28-SO packaged IC combines exceptional performance metrics with comprehensive protection features, making it an ideal choice for engineers seeking reliable and efficient power management solutions.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Max Output Current | 3.5A |
| Rds(On) | 160mΩ (Max) |
| Operating Voltage | 5.5V - 36V |
| Protection Features | Overtemperature, Overvoltage, Current Limiting |
Engineered within STMicroelectronics' renowned VIPower™ series, this N-channel power driver IC delivers precise 1:1 input/output ratio control while maintaining surface mount compatibility through its 28-SOIC package. The device's intelligent architecture supports non-inverting input configurations and integrates status flag monitoring for real-time system diagnostics.
Thermal Performance & Reliability
Operating across extreme temperature ranges (-40°C to 150°C), the VNQ810PTR-E demonstrates exceptional thermal stability in challenging environments. Its advanced junction temperature management system automatically initiates protective measures when thermal thresholds are exceeded, ensuring continuous operation in industrial settings where reliability is paramount.
What truly distinguishes this component is its comprehensive fault protection suite. The built-in current limiting circuitry prevents damage from overloads while maintaining output stability. Open load detection capabilities enable proactive maintenance alerts, and integrated overvoltage protection safeguards connected components from voltage spikes. These features collectively reduce system downtime and maintenance costs in critical applications.
Design Flexibility & Applications
The device's versatile architecture supports a wide range of applications including:
- Industrial motor control systems
- Automotive powertrain electronics
- Smart home automation devices
- Industrial sensor networks
- High-precision actuator control
Its ability to operate without requiring a dedicated Vcc supply simplifies power architecture design while maintaining compatibility with standard microcontroller interfaces. The high-side configuration enables efficient load control in positive voltage systems, making it particularly suitable for automotive electronics where ground referencing presents challenges.
Innovation in Power Integration
STMicroelectronics' VIPower™ technology combines the benefits of advanced power MOSFETs with intelligent control circuitry in a single package. This integration reduces component count while maintaining high efficiency (minimizing 160mΩ on-resistance) and eliminating the need for external current sensing components. The result is a compact, cost-effective solution that delivers automotive-grade reliability in a variety of demanding environments.
For design engineers, the VNQ810PTR-E offers significant advantages in system optimization. Its auto-restart functionality enables automatic recovery from fault conditions without manual intervention, while the status flag output provides valuable diagnostic information for predictive maintenance systems. The device's compact 7.50mm width SOIC package maintains compatibility with standard PCB manufacturing processes while offering superior thermal performance compared to traditional power driver solutions.
Tags: Power Management ICs, High-Side Drivers, Industrial Automation Components, Automotive Electronics, N-Channel Drivers
