STMicroelectronics VNN3NV04PTR-E Power Driver IC
- Brand: STMicroelectronics
- Product Code: VNN3NV04PTR-E
- Availability: In Stock
$0.45
- Ex Tax: $0.45
Advanced Power Management with STMicroelectronics VNN3NV04PTR-E
Engineered for precision and reliability in modern electronic systems, the STMicroelectronics VNN3NV04PTR-E represents a breakthrough in N-channel power driver technology. This cutting-edge IC combines robust performance with intelligent protection features, making it an ideal solution for demanding applications requiring efficient power control.
Key Technical Specifications
| Maximum Load Voltage | 36V |
| Output Current | 3.5A (Max) |
| RDS(ON) | 120mΩ (Max) |
| Operating Temperature | -40°C to 150°C |

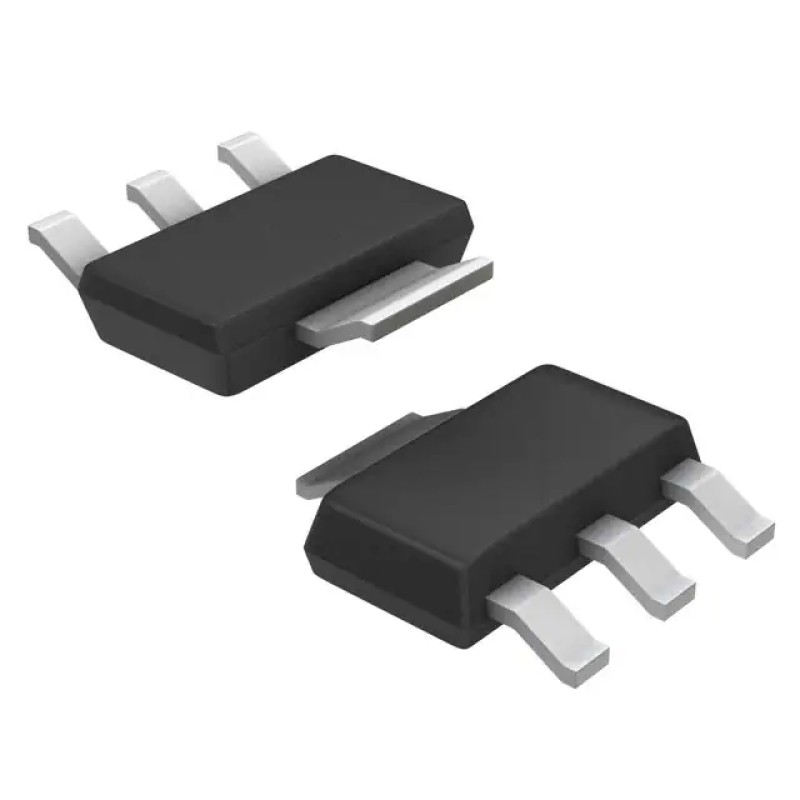

As part of STMicroelectronics' renowned VIPower™ family, this SOT-223 packaged device delivers exceptional thermal performance through its low on-resistance characteristics. The integrated fault protection system safeguards against over-temperature, over-voltage, and current limiting conditions, ensuring uninterrupted operation in critical applications.
Designed for surface mount integration, the VNN3NV04PTR-E's low-side N-channel configuration enables seamless compatibility with various industrial control systems. Its non-inverting input interface simplifies circuit design while maintaining precise output control. The device's active status and 1:1 input/output ratio make it particularly suitable for motor control, lighting systems, and industrial automation equipment where reliability is paramount.
Performance Advantages
• Enhanced Thermal Management - The SOT-223 package optimizes heat dissipation for stable operation under heavy loads
• Comprehensive Protection - Built-in safeguards against electrical overstress and thermal runaway
• High Efficiency - 120mΩ RDS(ON) minimizes power loss and improves system efficiency
• Wide Operating Range - Capable of handling 36V maximum load voltage for versatile application support
Whether implementing motor drives, solenoid controllers, or industrial switching systems, engineers will appreciate the device's ease of integration and exceptional reliability. The TO-261AA package format offers excellent mechanical stability while maintaining compatibility with standard surface mount assembly processes.
Tags: Power Management IC, Surface Mount Driver, High Current Output, Voltage Protection, Industrial Electronics
