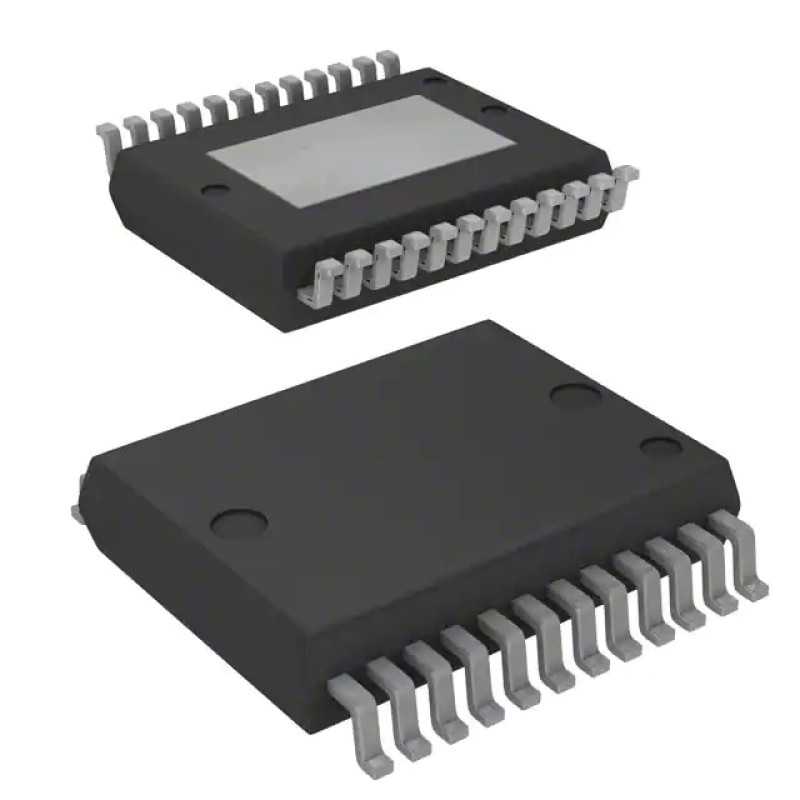

STMicroelectronics VND5025AKTR-E High-Side N-Channel Power Driver IC - VIPower™ Series
- Brand: STMicroelectronics
- Product Code: VND5025AKTR-E
- Availability: In Stock
$2.00
- Ex Tax: $2.00
STMicroelectronics VND5025AKTR-E: The Ultimate Power Driver Solution for Demanding Applications
The VND5025AKTR-E from STMicroelectronics represents a breakthrough in power management technology, combining robust performance with intelligent protection features. As part of the renowned VIPower™ series, this high-side N-channel power driver IC delivers exceptional reliability for automotive, industrial, and high-power system designs. With its advanced architecture and PowerSSO-24 packaging, this device sets new standards for efficiency in compact power electronics solutions.
Key Features and Technical Excellence
Engineered for precision power control, the VND5025AKTR-E offers a 1:1 input-to-output ratio with two independent high-side N-channel outputs. Operating across an impressive 4.5V to 36V load voltage range, this IC maintains optimal performance even in fluctuating environments. Its ultra-low 25mΩ (max) Rds(on) ensures minimal power loss, while the 29A maximum output current capacity handles demanding applications with ease.
What truly distinguishes this power driver is its comprehensive protection system. Integrating current limiting, over-temperature shutdown, and over-voltage protection, the VND5025AKTR-E safeguards both itself and connected components against common electrical faults. The auto-restart feature adds another layer of reliability by automatically resuming operation after fault conditions are resolved.
| Parameter | Specification |
|---|---|
| Output Configuration | High Side N-Channel |
| Operating Temperature | -40°C to 150°C (TJ) |
| Package Type | PowerSSO-24 (7.50mm Width) |
| Protection Features | Current Limiting, Thermal Shutdown, Over-Voltage |
Advanced Design for Modern Applications
The VND5025AKTR-E's surface-mount PowerSSO-24 package combines space efficiency with excellent thermal dissipation. Its non-inverting input architecture and on/off interface ensure seamless integration with various control systems. Unlike traditional power drivers requiring separate voltage supplies, this IC operates efficiently without a dedicated Vcc/Vdd connection, simplifying circuit design while maintaining exceptional performance across its 4.5-36V operating range.
Engineers will appreciate the device's versatility in automotive applications like electric window controls, seat adjustment systems, and lighting management. Industrial automation systems benefit from its precise power delivery in motor controllers, valve actuators, and industrial lighting solutions. The built-in protection features significantly reduce the need for external safeguard components, lowering overall system complexity and cost.
Performance You Can Trust
STMicroelectronics' VIPower™ technology shines in the VND5025AKTR-E, delivering consistent performance across extreme temperature ranges (-40°C to 150°C). The device's thermal management system prevents overheating even under continuous heavy loads, while the current limiting protection ensures safe operation during unexpected current spikes. This combination of rugged design and intelligent protection makes it ideal for mission-critical applications where reliability is paramount.
Manufacturers choosing the VND5025AKTR-E benefit from its tape-and-reel packaging format (TR), facilitating automated assembly processes. The component's active status in STMicroelectronics' product roadmap guarantees long-term supply stability for production environments. When combined with proper heat sinking through its power BSOP package, this IC maintains optimal performance in high-temperature industrial environments.
Tags: Power Driver IC, High-Side N-Channel, Industrial Electronics, Automotive Components, Voltage Regulator
