STMicroelectronics VN920SPTR-E Power Driver IC | Automotive Grade N-Channel Switch

Revolutionizing Power Management with STMicroelectronics VN920SPTR-E

The STMicroelectronics VN920SPTR-E represents a significant advancement in power driver technology, combining robust performance with intelligent protection features. As part of ST's renowned VIPower™ family, this N-channel power driver IC delivers exceptional reliability for automotive and industrial applications requiring precise load control. Its innovative design integrates advanced thermal management with high-side switching capabilities, making it an ideal solution for modern electrical systems demanding compact form factors without compromising performance.

Key Technical Advantages

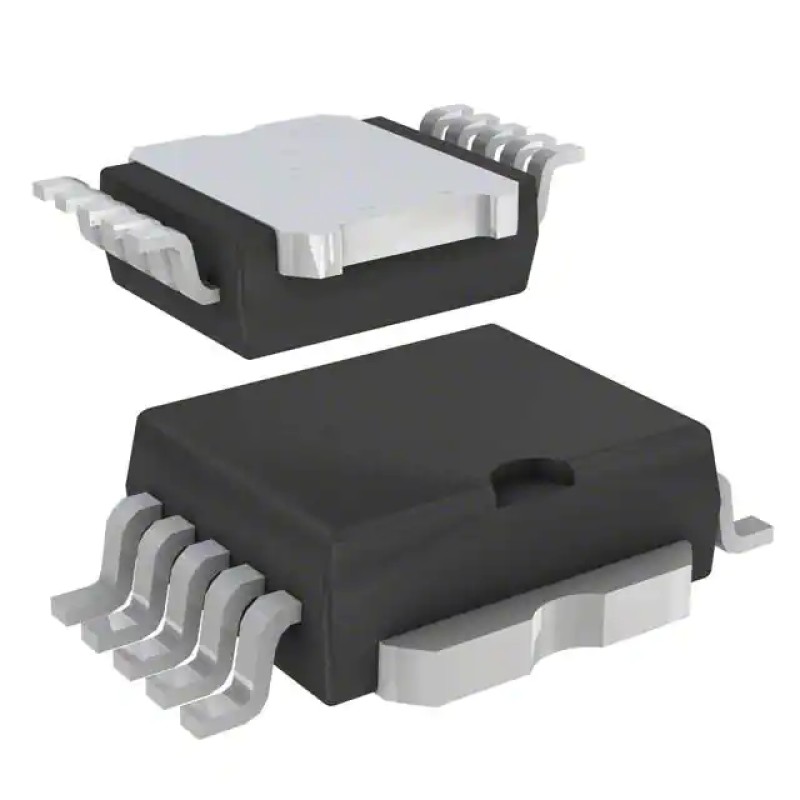

Engineered in a 10-PowerSO exposed bottom pad package, the VN920SPTR-E offers a perfect balance between miniaturization and thermal efficiency. The device's 30A maximum output current capability is complemented by an industry-leading 15mΩ (max) Rds(on) rating, ensuring minimal power loss and superior heat dissipation. This combination makes it particularly suitable for high-current applications such as electric vehicle systems, industrial automation equipment, and automotive body electronics where space constraints and thermal performance are critical considerations.

Intelligent Protection System

One of the standout features of this power driver IC is its comprehensive protection architecture. The integrated fault protection system combines current limiting, over-temperature detection, and over-voltage safeguards to ensure reliable operation in demanding environments. The auto-restart functionality provides automatic recovery after fault conditions, reducing system downtime and maintenance requirements. These built-in protections make the VN920SPTR-E particularly well-suited for automotive applications where electrical system stability is paramount.

The device's non-inverting input configuration and on/off interface simplify integration with standard microcontroller systems, enabling rapid deployment in existing architectures. Its surface mount packaging facilitates automated assembly processes while maintaining mechanical reliability in vibration-prone environments. The absence of a required Vcc/Vdd supply voltage further simplifies design considerations, reducing component count and associated costs.

Design Flexibility and Performance

The VN920SPTR-E's high-side output configuration offers distinct advantages in load switching applications. This architecture enables direct connection to the power source while maintaining ground continuity, an essential requirement for many automotive systems. The 1:1 input/output ratio ensures predictable performance characteristics, making it easier to implement precise control algorithms in motor drives, LED lighting systems, and relay replacement circuits.

Engineers will appreciate the device's wide operating temperature range (-40°C to 150°C) which ensures reliable performance in extreme environmental conditions. The PowerSO-10 package's exposed bottom pad enhances thermal performance while maintaining industry-standard footprint compatibility. These features collectively make the VN920SPTR-E an excellent choice for applications requiring robust power switching in compact form factors.

Applications and Industry Impact

The versatility of the VN920SPTR-E has made it a popular choice across multiple industries. In automotive electronics, it's commonly employed in window lift systems, seat adjustment mechanisms, and lighting control circuits. Industrial automation systems utilize its capabilities in programmable logic controllers and motor control applications. The device also finds application in renewable energy systems, where its reliable switching performance benefits solar inverters and energy storage solutions.

As part of STMicroelectronics' VIPower™ family, this component exemplifies the company's commitment to power management innovation. The integration of advanced protection features with high-current handling capabilities in a compact package represents a significant step forward in power IC design. This technology enables designers to create more efficient, reliable, and compact systems while meeting increasingly stringent industry standards.

Future-Proof Design

While the VN920SPTR-E is currently marked as obsolete, its design principles continue to influence modern power driver development. The device's architecture demonstrates the direction of future power management solutions: increased integration, enhanced protection systems, and improved thermal performance. For engineers working on systems requiring backward compatibility or replacement parts, this component remains a valuable reference design for understanding contemporary power driver implementation strategies.

The tape and reel packaging format facilitates automated manufacturing processes, ensuring consistent quality in high-volume production environments. The minimum order quantity of 1 unit allows for prototyping and small-scale testing before full production implementation, reducing development risks for new projects.
