STMicroelectronics VN820PTTR-E Power Driver IC
- Brand: STMicroelectronics
- Product Code: VN820PTTR-E
- Availability: In Stock
$1.40
- Ex Tax: $1.40
Introducing the STMicroelectronics VN820PTTR-E: A Robust Power Driver IC for Demanding Applications
Engineered for high-performance industrial and automotive systems, the STMicroelectronics VN820PTTR-E stands as a testament to precision power management technology. This advanced N-channel power driver IC combines cutting-edge specifications with comprehensive protection features, making it an ideal solution for engineers seeking reliability and efficiency in compact electronic designs.
Key Technical Specifications
At its core, the VN820PTTR-E features a high-side N-channel output configuration with a 1:1 input/output ratio. The device operates across an impressive voltage range of 5.5V to 36V, accommodating both low-voltage and high-voltage applications. With a maximum output current capacity of 9A and an ultra-low Rds(on) of 40mΩ, this IC delivers exceptional power efficiency while minimizing thermal dissipation requirements.
| Parameter | Specification |
|---|---|
| Operating Voltage | 5.5V - 36V |
| Output Current | 9A (Max) |
| Rds(on) | 40mΩ (Max) |
| Operating Temperature | -40°C to 150°C |
Advanced Protection Architecture
Designed for real-world applications, this power driver incorporates a comprehensive suite of protection mechanisms. The integrated fault protection system includes current limiting with fixed thresholds, open load detection, over-temperature shutdown, and over-voltage protection. These features combine to create a robust solution that maintains system integrity under challenging operating conditions.
The device's intelligent protection system features automatic restart functionality and status flag reporting, enabling designers to implement sophisticated fault handling protocols. This proactive approach to fault management significantly reduces the risk of component failure while maintaining system uptime.
Design Flexibility and Integration

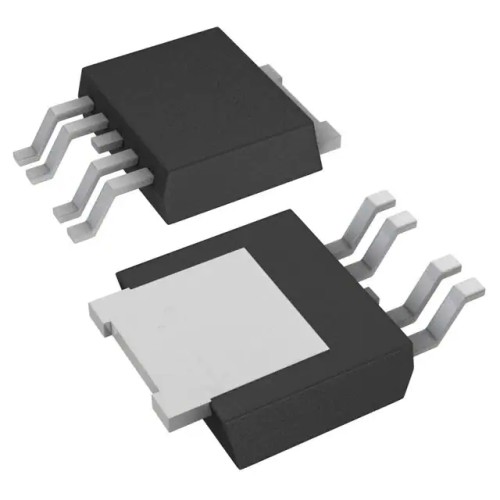

As part of STMicroelectronics' VIPower™ family, the VN820PTTR-E benefits from proven packaging technology and design expertise. The surface-mount PPAK package (TO-252-5) combines excellent thermal performance with space-saving dimensions, making it suitable for high-density PCB layouts. The non-inverting input configuration and on/off interface simplify integration with various control systems.
This power driver's versatility extends to its application scope. While primarily designed as a general-purpose switch, its performance characteristics make it particularly well-suited for motor control, solenoid drivers, and industrial automation systems where precise power delivery is critical.
Industrial-Grade Reliability
Engineered to meet the demands of harsh operating environments, the VN820PTTR-E maintains stable performance across extreme temperature ranges (-40°C to 150°C). The device's construction adheres to automotive-grade quality standards, ensuring long-term reliability in both industrial and transportation applications.
The combination of STMicroelectronics' proprietary technologies and rigorous testing protocols results in a device that exceeds typical industry reliability expectations. With a tape & reel packaging format facilitating automated assembly, the VN820PTTR-E supports modern manufacturing requirements while maintaining component integrity.
Tags: Power Driver IC, High Side Configuration, Industrial Electronics, Fault Protection IC
