STMicroelectronics VN808TR-E High-Performance Power Driver IC
- Brand: STMicroelectronics
- Product Code: VN808TR-E
- Availability: In Stock
$3.60
- Ex Tax: $3.60
Revolutionizing Power Management with STMicroelectronics VN808TR-E
The STMicroelectronics VN808TR-E represents a significant advancement in power driver technology, designed to meet the demanding requirements of modern industrial and automotive applications. This 8-channel N-channel power driver IC combines robust electrical performance with intelligent protection features, making it an ideal solution for systems requiring reliable high-side switching capabilities. With its ability to operate across a wide voltage range (10.5V to 45V) and deliver up to 700mA of output current, the VN808TR-E offers unparalleled flexibility in power management scenarios.
Key Technical Advantages
At the heart of the VN808TR-E's exceptional performance lies its advanced MOSFET architecture. The device's 150mΩ typical Rds(on) ensures minimal power dissipation even under full load conditions, translating to improved system efficiency and reduced thermal stress. The integrated non-inverting interface simplifies control circuitry design, while the built-in auto-restart and status flag features enhance system reliability through real-time fault monitoring.
Engineered for industrial environments, this power driver operates flawlessly across extreme temperature ranges (-40°C to 125°C), maintaining consistent performance in challenging conditions. The device's comprehensive protection suite including current limiting and over-temperature shutdown mechanisms prevents damage from abnormal operating conditions, significantly reducing system downtime.
| Parameter | Specification |
|---|---|
| Output Channels | 8 High-Side N-Channel |
| Operating Voltage | 10.5V - 45V |
| Max Output Current | 700mA per Channel |
| Protection Features | Current Limiting, Over-Temperature |

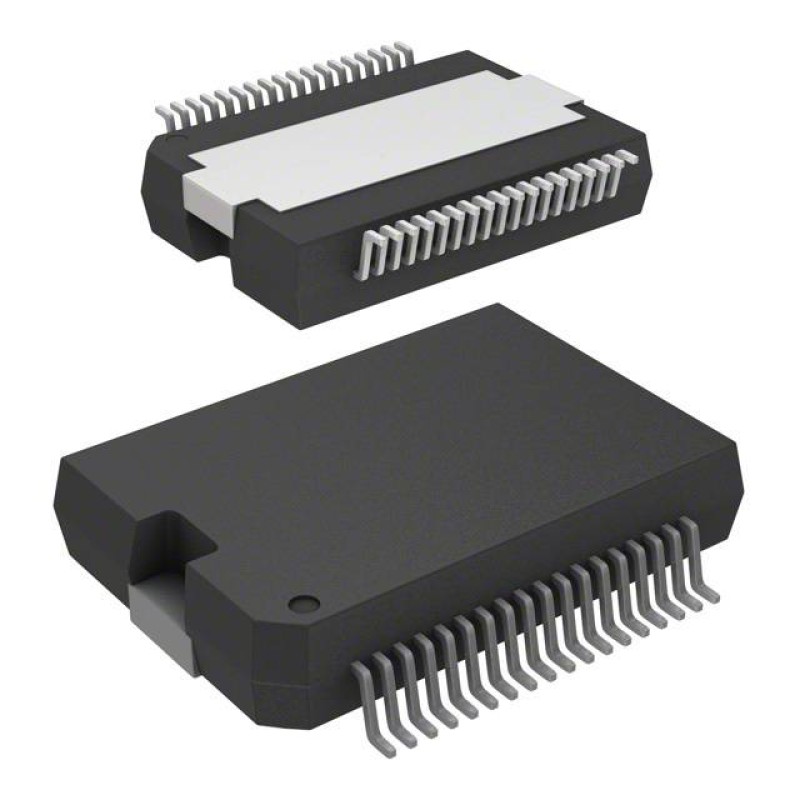

| Package Type | PowerSO-36 with Bottom Pad |
Application Versatility
The VN808TR-E's versatile design makes it particularly well-suited for automotive powertrain systems, industrial motor controls, and heavy machinery applications. Its robust construction and intelligent protection features ensure reliable operation in environments characterized by voltage spikes, thermal stress, and electrical noise. The device's compatibility with standard microcontroller interfaces simplifies integration into existing control architectures, while its compact PowerSO-36 package optimizes PCB space utilization.
For designers seeking to implement smart power management solutions, the VN808TR-E offers significant advantages over discrete implementations. The integrated bottom pad thermal management system enhances heat dissipation without requiring complex heatsinking solutions, while the device's inherent fault detection capabilities reduce the need for external monitoring circuitry.
Manufacturing Excellence
As part of STMicroelectronics' VIPower™ family, the VN808TR-E benefits from the company's decades of power IC manufacturing expertise. The device is fabricated using advanced BCD (Bipolar-CMOS-DMOS) technology, combining the advantages of multiple semiconductor processes to achieve optimal performance characteristics. This manufacturing approach ensures consistent quality and reliability across the device's operational lifespan.
Available in tape and reel packaging (TR), the VN808TR-E supports automated assembly processes while maintaining component traceability. With 2400 units currently in stock and a minimum order quantity of just 1, the device offers both scalability for production environments and accessibility for prototyping requirements.
Tags: Power Management, N-Channel MOSFET, High Side Driver, Industrial Automation, Voltage Regulation
