STMicroelectronics VN808CMTR-E High-Side Power Driver IC
- Brand: STMicroelectronics
- Product Code: VN808CMTR-E
- Availability: In Stock
$4.80
- Ex Tax: $4.80
Advanced Power Management with STMicroelectronics VN808CMTR-E
The STMicroelectronics VN808CMTR-E represents a breakthrough in power driver technology, offering exceptional performance for automotive and industrial applications. This high-side N-channel power driver IC combines robust electrical characteristics with intelligent protection features, making it ideal for demanding environments where reliability and efficiency are paramount.
Key Technical Specifications
Engineered with ST's proprietary VIPower™ technology, this device delivers 700mA maximum output current through its 8 independent channels. Operating within a wide 10.5V to 45V load voltage range, it maintains exceptional performance across diverse power conditions. The integrated 160mΩ (max) Rds(on) MOSFETs minimize power losses while maintaining compact form factor.
| Parameter | Specification |
|---|---|
| Output Configuration | High-Side N-Channel |
| Operating Temperature | -40°C to 125°C (TJ) |
| Protection Features | Current Limiting, Over Temperature |
| Mounting Type | Surface Mount (PowerSO-36) |
Smart Protection System
Designed with automotive applications in mind, the VN808CMTR-E incorporates comprehensive fault protection mechanisms. Its current limiting function operates independently for each channel while the thermal shutdown feature prevents damage from excessive temperatures. The auto-restart capability and status flag provide valuable diagnostic information for system monitoring and maintenance.

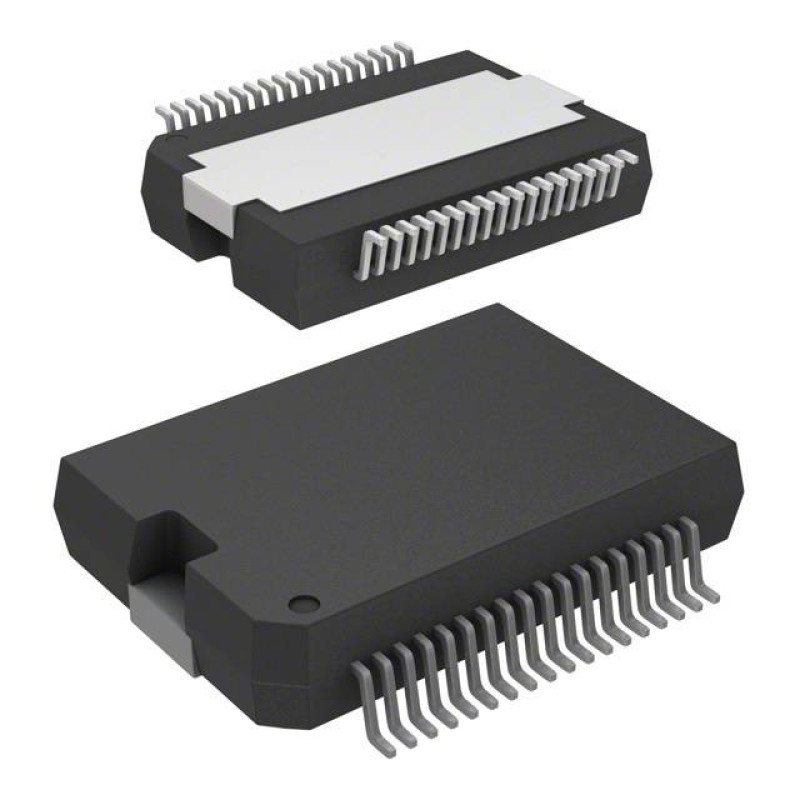

As part of STMicroelectronics' VIPower™ family, this device demonstrates exceptional durability in harsh environments. The PowerSO-36 package with exposed bottom pad ensures efficient thermal management, while the 36-PowerBSSOP form factor maintains compatibility with standard PCB layouts. This combination of mechanical robustness and electrical performance makes it particularly suitable for automotive body control modules, industrial automation systems, and heavy machinery control circuits.
Design Flexibility
The IC's non-inverting input configuration simplifies integration with standard microcontroller interfaces. With no requirement for separate Vcc/Vdd supply, it reduces system complexity while maintaining full functionality. The 1:1 input-to-output ratio ensures predictable operation across all channels, making it ideal for applications requiring precise control of multiple loads.
