STMicroelectronics VN751PT13TR High-Side N-Channel Power Driver IC
- Brand: STMicroelectronics
- Product Code: VN751PT13TR
- Availability: In Stock
$1.40
- Ex Tax: $1.40
Advanced Power Management with STMicroelectronics VN751PT13TR
The STMicroelectronics VN751PT13TR represents a significant advancement in power driver technology, offering robust performance and reliability for demanding industrial and automotive applications. As part of the renowned VIPower™ series, this N-channel high-side power driver combines cutting-edge semiconductor design with comprehensive protection features to deliver exceptional efficiency and durability.
Key Technical Specifications
Engineered for versatility, the VN751PT13TR operates across a wide voltage range of 5.5V to 36V, making it suitable for diverse power systems. Its advanced MOSFET architecture maintains a remarkably low 60mΩ Rds(on) resistance while delivering up to 2.5A output current. The device's non-inverting interface and 1:1 input/output ratio ensure precise control in critical applications.
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to 150°C (TJ) |
| Protection Features | Current Limiting, Over Temperature, Over Voltage |

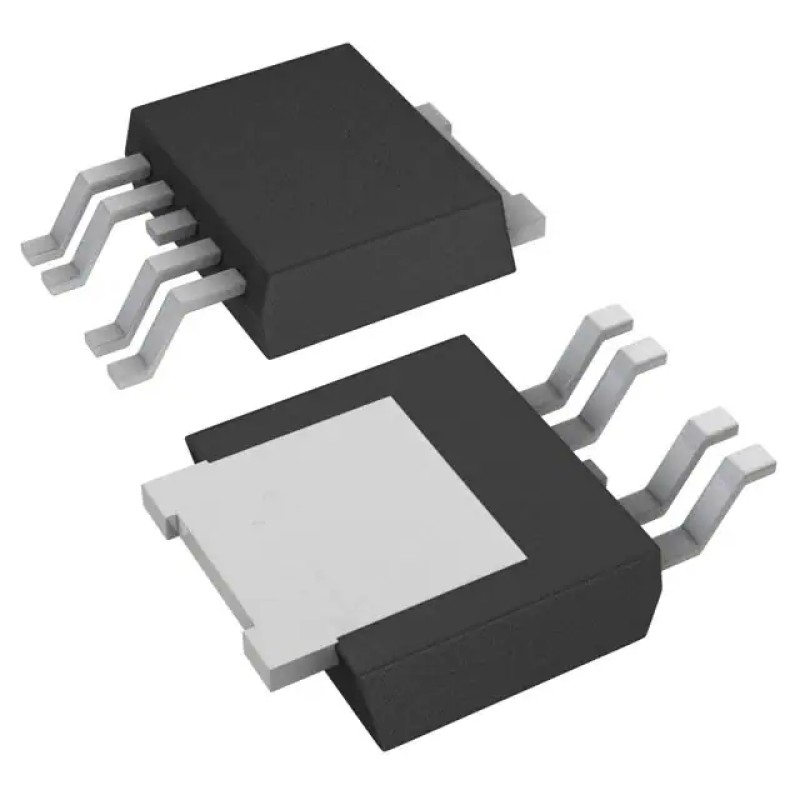

| Package Type | PPAK (TO-252-5) |
What truly distinguishes this power driver is its comprehensive safety architecture. The integrated fault protection system combines current limiting with temperature and voltage monitoring to prevent damage under abnormal conditions. The built-in status flag provides real-time feedback while the auto-restart feature enables automatic recovery after fault conditions are resolved.
Industrial Applications
Designed for surface mount installation, the VN751PT13TR excels in space-constrained environments requiring reliable power control. Its automotive-grade construction meets the rigorous demands of vehicle systems, while industrial applications benefit from its wide operating temperature range and robust packaging. Typical uses include motor control systems, solenoid drivers, and high-side switching applications in harsh environments.
Manufactured by STMicroelectronics, a leader in power management solutions, this device embodies decades of semiconductor expertise. The VIPower™ technology ensures minimal power loss while maintaining exceptional thermal performance through its advanced PPAK packaging. The device's tape & reel packaging format simplifies automated assembly processes.
Performance Advantages
Engineers will appreciate the device's unique combination of features that simplify system design while enhancing reliability. The absence of required supply voltage decoupling reduces component count and board space requirements. The high-side configuration combined with non-inverting control logic minimizes design complexity in common power switching applications.
Available in TO-252AD packaging, the VN751PT13TR offers a compelling solution for designers seeking to implement robust power control systems without compromising on performance or reliability. Its comprehensive feature set makes it particularly valuable in safety-critical applications where failure prevention is paramount.
Tags: High-Side Switch, Power Management, Industrial Automation, MOSFET Driver, Automotive Electronics
