STMicroelectronics VN750B5TR-E High-Side Power Driver IC

Revolutionizing Power Management with STMicroelectronics VN750B5TR-E

In the rapidly evolving landscape of industrial automation and automotive electronics, the demand for efficient, reliable power management solutions has reached unprecedented levels. The STMicroelectronics VN750B5TR-E emerges as a groundbreaking solution, combining advanced semiconductor technology with intelligent protection features to deliver exceptional performance in high-side power switching applications. This N-channel power driver IC represents the pinnacle of STMicroelectronics' commitment to innovation, offering engineers and designers a versatile component that bridges the gap between demanding technical requirements and practical implementation.

Technical Excellence in Power Delivery

At the heart of this remarkable device lies a sophisticated architecture designed to handle extreme operating conditions while maintaining optimal efficiency. The VN750B5TR-E features a 1:1 input-to-output configuration with a high-side N-channel output stage, capable of delivering up to 6A of output current. Its robust design incorporates a maximum Rds On of just 60mΩ, ensuring minimal power loss and exceptional thermal performance even under continuous operation.

One of the most impressive aspects of this power driver is its wide operating voltage range of 5.5V to 36V, making it suitable for both low-voltage industrial systems and high-voltage automotive applications. The device's self-powered architecture eliminates the need for a separate Vcc supply, simplifying system design while maintaining exceptional performance metrics.

Intelligent Protection and Diagnostics

What truly sets the VN750B5TR-E apart in its class is its comprehensive suite of protection and diagnostic features. The device incorporates advanced fault detection mechanisms that provide real-time status feedback through its status flag output. This enables system designers to implement proactive maintenance strategies and fault mitigation protocols, significantly enhancing overall system reliability.

The built-in current limiting function automatically regulates output current to safe levels during fault conditions, while the open load detection capability ensures proper load connection monitoring. Integrated thermal shutdown and overvoltage protection circuits work in tandem to prevent damage from extreme operating conditions, making this power driver suitable for mission-critical applications where reliability is paramount.

Industrial and Automotive Versatility

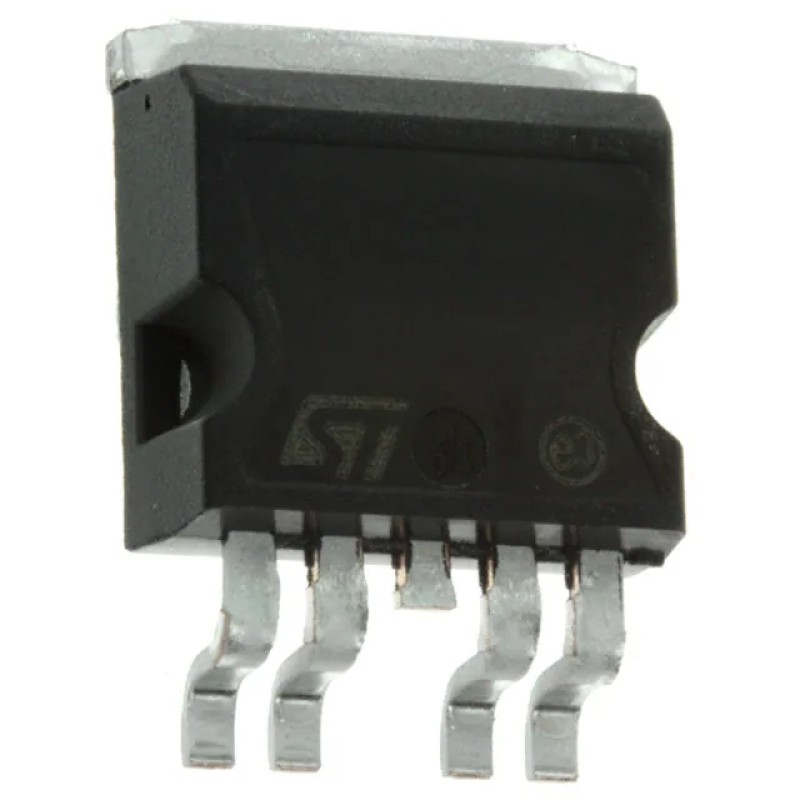

The VN750B5TR-E's surface-mount P2PAK package with four leads plus tab offers excellent thermal dissipation characteristics while maintaining a compact footprint. This makes it ideal for space-constrained applications in harsh environments. The device's -40°C to 150°C operating temperature range ensures reliable performance in extreme conditions commonly encountered in industrial automation, automotive systems, and heavy machinery.

From motor control systems and solenoid drivers to industrial automation equipment and automotive body electronics, this power driver demonstrates remarkable versatility. Its non-inverting input configuration and on/off interface simplify integration with various control systems, while the auto-restart feature enables automatic recovery from fault conditions without manual intervention.

Design Optimization and System Integration

Engineers will appreciate the VN750B5TR-E's compatibility with standard PCB manufacturing processes and its tape-and-reel packaging format that facilitates automated assembly. The device's high-side configuration reduces electromagnetic interference (EMI) and improves system efficiency by minimizing ground bounce effects. When designing with this power driver, it's essential to consider proper thermal management techniques, including adequate copper pour and heatsinking when operating at maximum current ratings.

The device's status flag output provides valuable diagnostic information that can be used to implement sophisticated control algorithms and predictive maintenance systems. By monitoring this signal, designers can detect early warning signs of potential system failures and implement corrective measures before critical failures occur.

Future-Proof Power Management Solution

As industries continue to push for greater efficiency and reliability in electronic systems, the STMicroelectronics VN750B5TR-E stands out as a future-proof solution that meets current requirements while providing the flexibility needed for next-generation designs. Its combination of high performance, robust protection features, and versatile integration capabilities make it an essential component for modern power management applications.
