STMicroelectronics L9733XPTR N-Channel Power Driver IC
- Brand: STMicroelectronics
- Product Code: L9733XPTR
- Availability: In Stock
$2.60
- Ex Tax: $2.60
Revolutionizing Industrial Automation with STMicroelectronics L9733XPTR
In the rapidly evolving landscape of industrial automation and embedded systems, the STMicroelectronics L9733XPTR emerges as a groundbreaking solution for engineers seeking precision, efficiency, and reliability. This advanced N-channel power driver IC with SPI interface sets new benchmarks in compact design while delivering exceptional performance for demanding applications like motor control, LED lighting systems, and industrial automation equipment.
Technical Excellence in a Compact Package

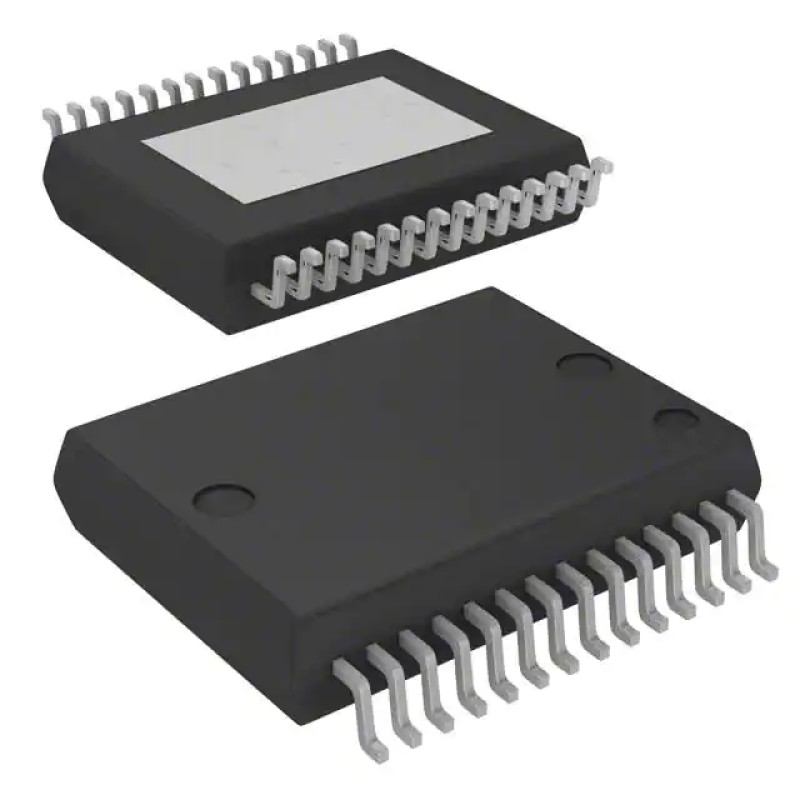

At its core, the L9733XPTR embodies STMicroelectronics' decades of expertise in semiconductor technology. The device integrates eight high-side/low-side N-channel MOSFET drivers within a space-saving PowerSSO-28 Exposed Pad package. With its 1:8 input-to-output ratio and non-inverting interface architecture, this IC simplifies complex control systems while maintaining exceptional thermal performance through its exposed pad design.
Key technical specifications include:
| Parameter | Specification |
| Operating Voltage | 4.5V - 18V Load / 4.5V - 5.5V Supply |
| Output Current | 1A Maximum |
| RDS(ON) | 700mΩ Maximum |
| Protection Features | Open Load Detection, Over Temperature |
| Operating Temperature | -40°C to 125°C |
Unmatched Performance for Modern Applications
The L9733XPTR's SPI interface enables seamless integration with modern microcontroller systems while maintaining backward compatibility with legacy architectures. Its dual configuration capability (high-side or low-side) offers unprecedented design flexibility, eliminating the need for multiple specialized components in complex systems. The device's PWM input feature allows precise control of motor speed or LED brightness levels with minimal external circuitry.
Engineered for harsh industrial environments, the IC's comprehensive protection features ensure reliable operation under extreme conditions. The integrated open load detection system provides real-time diagnostics, while thermal shutdown safeguards against overheating - critical advantages in continuous-operation scenarios.
Design Advantages Across Industries
From automotive systems to factory automation equipment, the L9733XPTR demonstrates remarkable versatility. In automotive applications, it enables efficient control of lighting systems and electric actuators. Industrial automation systems benefit from its precise control capabilities in motor drives and sensor arrays. Even consumer electronics manufacturers find value in its compact form factor and low power consumption characteristics.
The device's surface mount packaging aligns perfectly with modern manufacturing requirements for miniaturization and automated assembly. When compared to traditional discrete component solutions, the L9733XPTR reduces board space requirements by up to 40% while improving overall system reliability.
