STMicroelectronics M95256-DFMC6TG 256Kbit SPI EEPROM Memory IC

Advanced Non-Volatile Memory Solution: STMicroelectronics M95256-DFMC6TG

In the ever-evolving landscape of embedded systems and industrial electronics, the demand for reliable, high-performance memory solutions continues to grow. The STMicroelectronics M95256-DFMC6TG emerges as a cutting-edge 256Kbit SPI EEPROM memory IC designed to meet the rigorous requirements of modern applications. This device combines exceptional durability, low-power operation, and exceptional data retention capabilities, making it an ideal choice for designers seeking robust memory solutions.

Technical Excellence in Compact Packaging

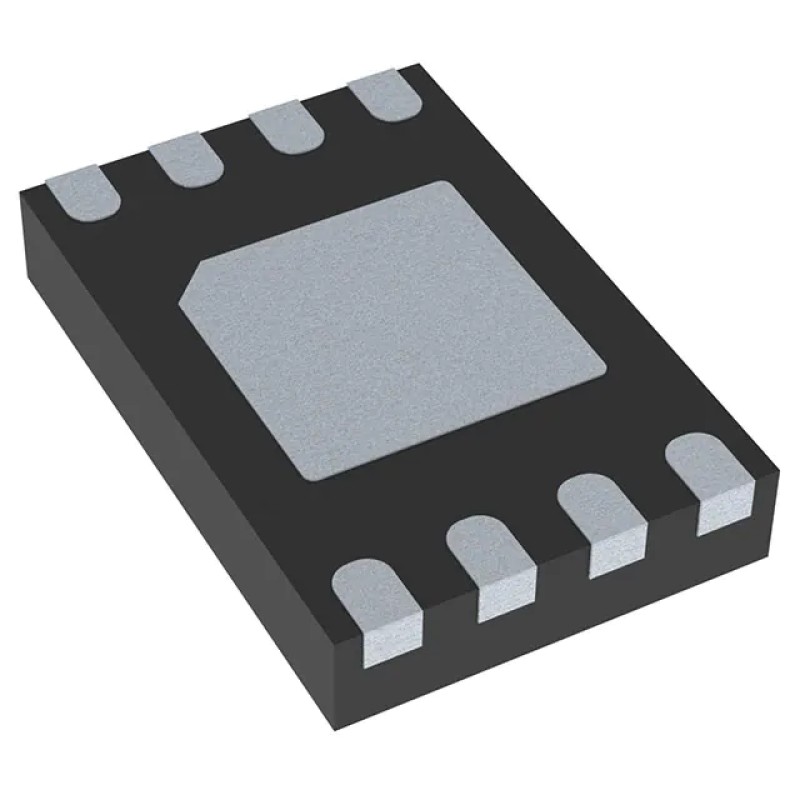

Manufactured using advanced EEPROM technology, this memory IC features a compact 8-UFDFPN (2x3) package with exposed pad thermal enhancement. Its SPI interface operates at clock frequencies up to 20 MHz, enabling fast data transfer rates while maintaining compatibility with standard microcontroller SPI protocols. The device's 32K x 8 memory organization provides optimal data storage efficiency for applications requiring frequent parameter updates.

Engineered for industrial environments, the M95256-DFMC6TG operates across the full -40°C to +85°C temperature range. Its wide voltage supply range (1.7V to 5.5V) ensures compatibility with both legacy and modern power architectures, while the 5ms write cycle time enables rapid data storage operations. These specifications make it particularly suitable for energy management systems, industrial automation equipment, and automotive electronics where reliability is paramount.

Key Technical Specifications

Durability and Longevity Features

The M95256-DFMC6TG incorporates STMicroelectronics' advanced memory architecture with guaranteed endurance specifications. The device supports up to 4 million write cycles per memory cell, significantly extending operational lifespan compared to standard EEPROM solutions. Its enhanced data retention capability ensures stored information persists for over 200 years under normal operating conditions, eliminating concerns about gradual data loss in critical applications.

For industrial designers, the device's surface-mount package facilitates automated assembly while minimizing board space requirements. The tape & reel packaging format supports efficient manufacturing processes, and the active product status ensures long-term supply stability for production environments. These features make the M95256-DFMC6TG particularly valuable in applications like programmable logic controllers, smart sensors, and medical diagnostic equipment where maintenance access is limited.

Design Flexibility and Integration

This EEPROM solution's SPI interface provides straightforward integration with modern microcontrollers, reducing development complexity and time-to-market. The device's low-power design characteristics enable efficient operation in battery-powered applications, while its wide voltage range eliminates the need for additional voltage regulation circuitry in mixed-voltage systems. These attributes make it an excellent choice for IoT devices, remote monitoring systems, and portable industrial instrumentation.

As part of STMicroelectronics' comprehensive memory portfolio, the M95256-DFMC6TG benefits from the manufacturer's decades of semiconductor expertise and rigorous quality control processes. Designers can leverage extensive technical documentation, application notes, and development tools to accelerate implementation. The device's compatibility with standard SPI protocols ensures easy integration with popular embedded platforms from various semiconductor vendors.

Tags: Embedded Systems, Industrial Electronics, Automotive Memory, Low Power ICs, SPI Interface
