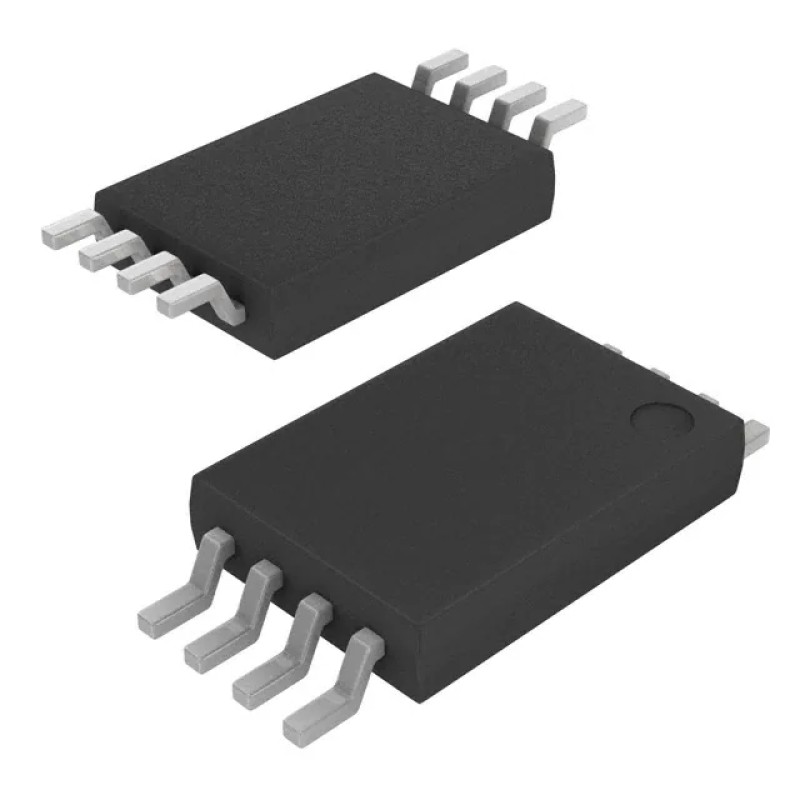

STM M24C08-RDW6TP 8Kbit I2C EEPROM Memory IC

The STMicroelectronics M24C08-RDW6TP is a high-performance, non-volatile memory solution designed for modern electronic systems requiring reliable data storage and fast access times. This 8Kbit EEPROM device utilizes an I²C interface to deliver seamless communication in embedded systems, industrial controls, and consumer electronics. With its advanced EEPROM technology and compact 8-TSSOP package, this IC offers exceptional flexibility and durability for demanding applications.

Key Features for Enhanced System Design

Engineered for efficiency, the M24C08-RDW6TP provides a 400 kHz clock frequency that enables rapid data transfer rates, making it ideal for time-sensitive operations. Its 5ms word/page write cycle time ensures quick memory updates while maintaining data integrity. The device's 1.8V to 5.5V wide voltage range allows compatibility with various power supply configurations, supporting both low-power and standard voltage systems.

Technical Highlights:

This surface-mount IC demonstrates exceptional environmental resilience, operating reliably across industrial temperature ranges. The 8-TSSOP package combines space-saving design with excellent thermal performance, making it perfect for compact PCB layouts in automotive sensors, smart meters, and portable devices.

Reliability in Critical Applications

With its endurance rating of 4 million write cycles and 40-year data retention capability, the M24C08-RDW6TP ensures long-term system stability. The device's built-in write protection mechanism safeguards critical data during power fluctuations, while its page write capability enhances programming efficiency. These features make it particularly suitable for applications in industrial automation, medical devices, and telecommunications equipment where data integrity is paramount.

The IC's low-voltage operation supports energy-efficient designs while maintaining compatibility with legacy 5V systems. This backward compatibility simplifies integration into existing architectures while enabling new designs to benefit from reduced power consumption. The device's RoHS compliance and halogen-free construction align with modern environmental standards, supporting sustainable product development initiatives.

Optimized for Modern Electronics Manufacturing

Supplied in tape-and-reel packaging (TR), the M24C08-RDW6TP streamlines automated production processes. Its standard 8-TSSOP footprint facilitates easy replacement and design flexibility across different product variants. The device's pin compatibility with similar EEPROM devices allows for straightforward upgrades in existing designs without requiring extensive PCB modifications.

Whether implementing system parameter storage, device configuration memory, or data logging functionality, this EEPROM solution provides the perfect balance of performance, reliability, and design flexibility. Its combination of fast access times, broad operating conditions, and robust data retention makes it a preferred choice for engineers developing next-generation electronic systems.

Tags: EEPROM Memory, I2C Interface, Low Voltage, High Performance, Industrial Temperature
