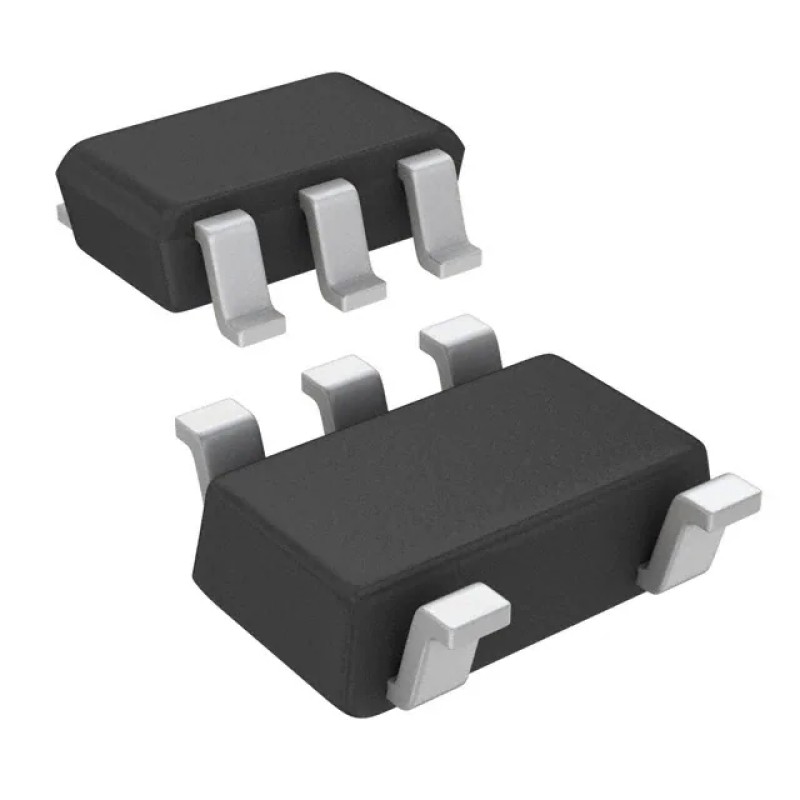

TSX9291ILT Low-Power General Purpose Op-Amp IC - 1 Circuit SOT23-5 Package
- Brand: STMicroelectronics
- Product Code: TSX9291ILT
- Availability: In Stock
$0.60
- Ex Tax: $0.60
TSX9291ILT: High-Performance General Purpose Operational Amplifier for Modern Electronic Systems
The TSX9291ILT from STMicroelectronics represents a new generation of general-purpose operational amplifiers designed to meet the demanding requirements of modern electronic applications. This single-circuit amplifier combines exceptional performance characteristics with a compact SOT23-5 package, making it ideal for space-constrained designs requiring reliable analog signal processing. With its rail-to-rail output capability and 16MHz gain bandwidth product, this device delivers superior performance across a wide range of operating conditions.
Key Performance Specifications
Engineered for precision and efficiency, the TSX9291ILT features a 27V/µs slew rate that enables rapid signal response times, while maintaining an ultra-low input bias current of 10pA. The amplifier operates across a wide 4V to 16V supply voltage range, offering design flexibility for both low-voltage and mid-range power applications. Its 74mA output current capability ensures robust drive strength for demanding loads, while maintaining just 2.8mA supply current consumption for energy-efficient operation.
| Parameter | Value |
|---|---|
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Slew Rate | 27V/µs |
| Gain Bandwidth Product | 16MHz |
| Operating Temperature | -40°C to 125°C |
Advanced Design Features
This precision amplifier incorporates STMicroelectronics' advanced analog processing technology to deliver 4mV input offset voltage accuracy while maintaining exceptional temperature stability across its full operating range. The SOT23-5 packaging provides excellent thermal performance combined with surface-mount compatibility, enabling automated PCB assembly processes. The device's robust design meets automotive and industrial temperature requirements, making it suitable for mission-critical applications in harsh environments.
As part of STMicroelectronics' comprehensive analog portfolio, the TSX9291ILT offers designers a proven solution for sensor interfaces, signal conditioning circuits, and precision measurement systems. Its rail-to-rail output stage maximizes dynamic range in low-voltage applications, while the wide supply voltage range allows direct connection to various system voltage rails without additional level shifting circuitry.
Target Applications
This versatile amplifier finds its optimal application in industrial automation equipment, test and measurement instruments, automotive sensor interfaces, and portable medical devices. Its combination of speed, precision, and power efficiency makes it particularly well-suited for:
- High-accuracy data acquisition systems
- Low-noise sensor amplification circuits
- Portable battery-powered devices
- Industrial process control systems
- Automotive body electronics modules
With STMicroelectronics' industry-leading quality and reliability, the TSX9291ILT provides designers with a future-proof solution that balances performance, power consumption, and packaging efficiency. Its tape-and-reel packaging format enables seamless integration into high-volume production environments while maintaining component traceability.
Tags: Low-Power Amplifier, Rail-to-Rail Output, Industrial Electronics, Surface Mount IC
