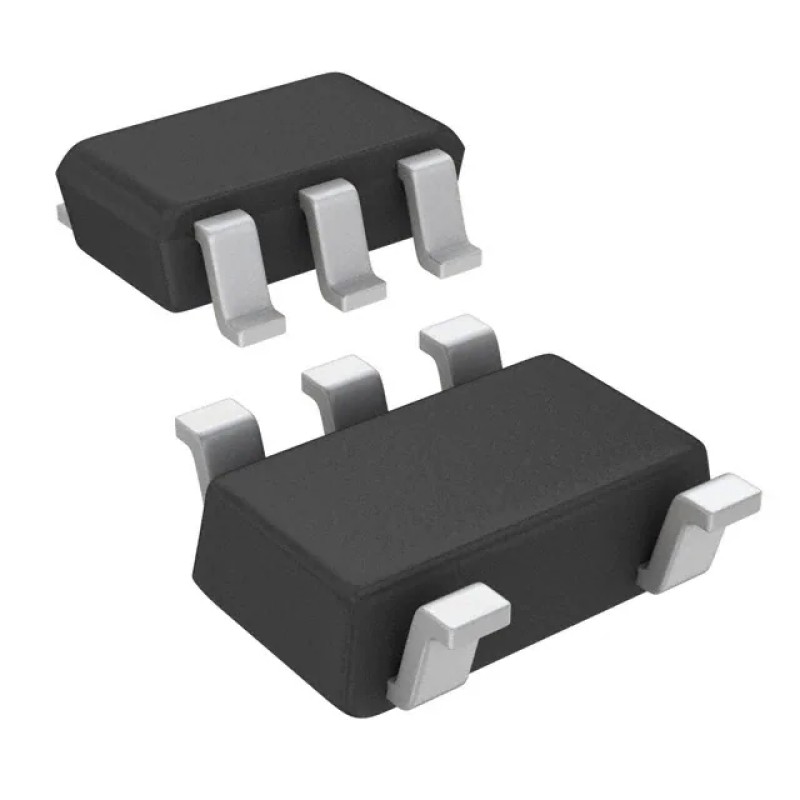

STMicroelectronics TSX631ILT General Purpose Operational Amplifier | Low Power SOT-23-5 IC
- Brand: STMicroelectronics
- Product Code: TSX631ILT
- Availability: In Stock
$0.57
- Ex Tax: $0.57
STMicroelectronics TSX631ILT: Precision Meets Efficiency in Miniature Packaging
Engineered for modern electronic design challenges, the STMicroelectronics TSX631ILT operational amplifier combines exceptional performance with ultra-low power consumption in a compact SOT-23-5 package. This general-purpose amplifier redefines what's possible in space-constrained applications while maintaining the precision demanded by critical systems across industrial, automotive, and consumer electronics sectors.
Technical Excellence in Every Detail
At its core, the TSX631ILT features a 200 kHz gain bandwidth product paired with a 0.12V/µs slew rate - a perfect balance between speed and stability for sensor interfaces and signal conditioning circuits. The rail-to-rail output stage ensures maximum dynamic range utilization, while the 1 pA input bias current enables accurate processing of high-impedance sources. With 1.6 mV input offset voltage and 45 µA supply current, this amplifier achieves remarkable accuracy without compromising energy efficiency.
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C to 125°C |
| Supply Voltage Range | 3.3V to 16V |
| Output Current | 92 mA per channel |
| Package Type | SOT-23-5 |
Design Flexibility Redefined
The TSX631ILT's wide 3.3V-16V supply voltage range eliminates the need for multiple power rails, simplifying system architecture while enhancing design versatility. Its surface-mount SOT-23-5 package measures just 2.9mm x 1.3mm, making it ideal for portable devices and dense PCB layouts. The amplifier's 92 mA output current capability ensures direct driving of heavy loads without additional buffer stages, reducing component count and board space requirements.
Engineered for reliability in harsh environments, this RoHS-compliant device maintains performance across extreme temperatures (-40°C to 125°C) without derating. The combination of low input bias current and precision offset voltage makes it particularly suitable for battery-powered sensor interfaces, medical instrumentation, and precision measurement equipment.
Applications Beyond Conventional Limits
From factory automation systems requiring millivolt-level accuracy to wearable health monitors demanding microampere efficiency, the TSX631ILT delivers consistent performance. Its rail-to-rail output stage maximizes signal integrity in low-voltage IoT devices, while the high output current capability enables direct actuator control in industrial settings. The amplifier's low quiescent current extends battery life in portable equipment without sacrificing transient response.
When integrating into new designs or upgrading existing systems, engineers benefit from STMicroelectronics' proven process technology and rigorous quality controls. The TSX631ILT's availability in tape-and-reel packaging (MinQty: 3000) supports automated assembly while maintaining cost-effectiveness for high-volume production.
Tags: General Purpose Op-Amp, Low Power IC, SOT-23 Package, Precision Amplifier, Surface Mount Amplifier
