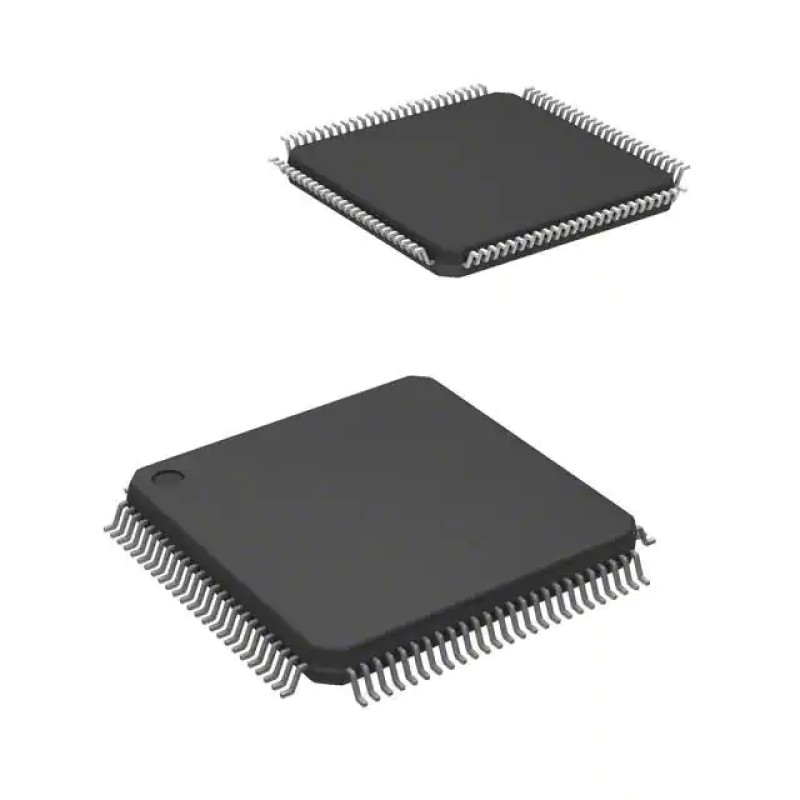

STM32L151VDT6 32-bit ARM Cortex-M3 Microcontroller

Introducing the STM32L151VDT6: High-Performance Embedded Solutions

The STM32L151VDT6 represents STMicroelectronics' commitment to innovation in embedded systems. This 32-bit ARM Cortex-M3 microcontroller combines powerful processing capabilities with exceptional energy efficiency, making it an ideal choice for demanding applications in industrial automation, IoT devices, and portable electronics. With its comprehensive peripheral set and advanced low-power features, this 100-LQFP package device bridges the gap between performance requirements and power constraints.

Key Technical Specifications

Under the hood, the STM32L151VDT6 features a 32MHz ARM Cortex-M3 core that delivers 1.25 DMIPS performance while maintaining ultra-low power consumption. The device's 384KB Flash memory (with ECC support) and 48KB RAM provide ample storage for complex applications, while its 12KB EEPROM eliminates the need for external memory components. The integrated 25-channel 12-bit ADC and dual 12-bit DAC offer precise analog interfacing capabilities for sensor networks and control systems.

Comprehensive Connectivity Options

Engineers will appreciate the STM32L151VDT6's extensive connectivity features, including I²C, SPI, UART, and USB interfaces that enable seamless communication with various peripherals. The device's unique combination of LIN bus support and IrDA capabilities makes it particularly suitable for automotive and industrial networking applications. Its integrated capacitive touch sensing controller supports modern HMI designs without requiring additional components.

Advanced Power Management

One of the standout features is the microcontroller's sophisticated power management system. With multiple low-power modes including standby (down to 180nA) and RTC operation (900nA), the STM32L151VDT6 excels in battery-powered applications. The dynamic voltage scaling and peripheral clock gating ensure optimal energy efficiency across varying workloads, making it perfect for energy-constrained designs.

Robust Development Ecosystem

As part of STMicroelectronics' STM32L1 series, this microcontroller benefits from a mature development ecosystem. The STM32CubeMX configuration tool simplifies pinout planning and clock tree setup, while the HAL drivers and middleware libraries accelerate firmware development. Compatibility with popular IDEs like Keil MDK-ARM and IAR Embedded Workbench ensures a smooth development experience.

Industrial-Grade Reliability

Engineered for harsh environments, the STM32L151VDT6 meets stringent industrial temperature requirements (-40°C to 85°C) and features built-in brown-out detection for stable operation. Its 100-LQFP package (14x14mm) balances pin density with manufacturing ease, while the internal oscillator eliminates external crystal requirements in many applications. These features make it a reliable choice for industrial control systems, medical devices, and smart metering solutions.
