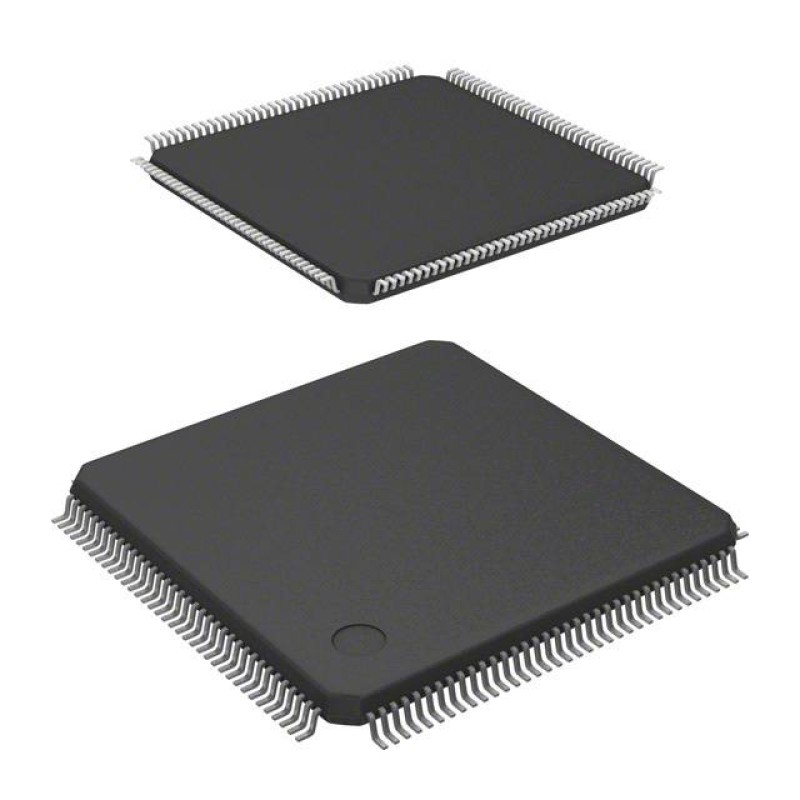

STM32F427ZIT6 32-Bit ARM Cortex-M4 Microcontroller with 2MB Flash, 144-LQFP Package

STM32F427ZIT6: High-Performance Embedded Solutions for Modern Applications

The STM32F427ZIT6 represents STMicroelectronics' commitment to innovation in embedded systems, combining advanced processing capabilities with versatile peripheral integration. As part of the renowned STM32F4 series, this 32-bit ARM Cortex-M4 microcontroller delivers exceptional performance for demanding industrial, automotive, and IoT applications.

Advanced Core Architecture for Real-Time Processing

Powered by the ARM Cortex-M4 core running at 180MHz, the STM32F427ZIT6 achieves 225 DMIPS performance through its single-precision floating-point unit and DSP extensions. This architecture enables efficient handling of complex algorithms in motor control, signal processing, and real-time automation tasks. The device's 2MB flash memory with ECC and 256KB SRAM provides ample storage for sophisticated firmware implementations.

Comprehensive Peripheral Integration

This 144-LQFP packaged microcontroller features an extensive array of communication interfaces:

Interface Type	Quantity
CAN Bus	2
USB OTG	2 (HS/FS)
Ethernet	1 (10/100M)
SPI	6
I²C	3

The device also incorporates 24-channel 12-bit ADCs with 2.4MSPS sampling rate and dual 12-bit DACs for precision analog interfacing.

Industrial-Grade Reliability and Flexibility

Operating across -40°C to +85°C temperature range with 1.8V-3.6V supply voltage tolerance, the STM32F427ZIT6 meets stringent industrial requirements. Its advanced power management system enables operation down to 1.7V, while integrated peripherals like SDIO, FSMC, and CRC engine enhance system-level flexibility. The device's 114 general-purpose I/O pins support multiple configuration options for custom hardware integration.

Development Ecosystem and Application Scope

STMicroelectronics provides comprehensive support through STM32CubeMX configuration tools, HAL drivers, and ecosystem partners. This makes the STM32F427ZIT6 ideal for:

• Industrial automation and control systems
• Automotive infotainment interfaces
• Smart grid and energy management solutions
• Medical instrumentation and diagnostic equipment
• Connected IoT edge devices

The device's hardware encryption support (AES/DES) and tamper detection features ensure secure implementation in critical applications.

Technical Highlights

Additional key features include:

Characteristic	Specification
Timers	17 (including 2x 32-bit)
DMA Channels	16-stream
Watchdog	2 independent timers
Boot Options	Internal/external recovery
Package	144-LQFP (20x20mm)

This combination of features makes the STM32F427ZIT6 a powerful foundation for next-generation embedded designs requiring high performance and peripheral versatility.

Tags: ARM Cortex-M4, Embedded Systems, Industrial Automation, IoT Devices, Microcontroller Units
