STM32F205VGT6 32-Bit ARM Cortex-M3 Microcontroller with 1MB Flash - 100-LQFP Package
- Brand: STMicroelectronics
- Product Code: STM32F205VGT6
- Availability: In Stock
$4.00
- Ex Tax: $4.00
High-Performance Embedded Solutions with STM32F205VGT6 Microcontroller
The STM32F205VGT6 represents STMicroelectronics' commitment to delivering cutting-edge embedded solutions for modern industrial and consumer applications. This 32-bit ARM Cortex-M3 microcontroller combines exceptional processing power with comprehensive peripheral integration, making it ideal for demanding environments requiring reliable performance and advanced connectivity options.
Core Architecture & Processing Power
At its heart lies the ARM Cortex-M3 processor core, operating at an impressive 120MHz frequency. This architecture provides optimal balance between performance and power efficiency, enabling complex algorithm execution while maintaining low power consumption. The device's 1MB flash memory allows for extensive code storage, while the 132KB SRAM ensures smooth multitasking capabilities even under heavy workloads.
| Specification | Value |
|---|---|
| CPU Core | ARM Cortex-M3 |
| Operating Frequency | 120MHz |
| Flash Memory | 1MB |
| RAM | 132KB |
Advanced Connectivity & Peripheral Integration
Engineered for diverse application requirements, this microcontroller features an extensive array of communication interfaces including CANbus, I²C, IrDA, LINbus, MMC, SPI, UART/USART, and USB OTG. These interfaces enable seamless integration with various external devices and sensors, making it particularly suitable for industrial automation systems, smart metering applications, and connected consumer electronics.
The device's 82 general-purpose I/O lines provide exceptional flexibility for custom circuit design, while integrated peripherals like Brown-out Detection/Reset, Direct Memory Access (DMA) controllers, and Watchdog Timers enhance system reliability. The inclusion of LCD controllers and Pulse Width Modulation (PWM) modules expands its applicability to display-driven interfaces and motor control applications.
| Interface Type | Features |
|---|---|
| Communication | CANbus, I²C, IrDA, LINbus, MMC, SPI, UART/USART, USB OTG |
| Analog Peripherals | 16x12-bit ADC, 2x12-bit DAC |
| Operating Temperature | -40°C to 85°C |
Industrial-Grade Design & Power Management

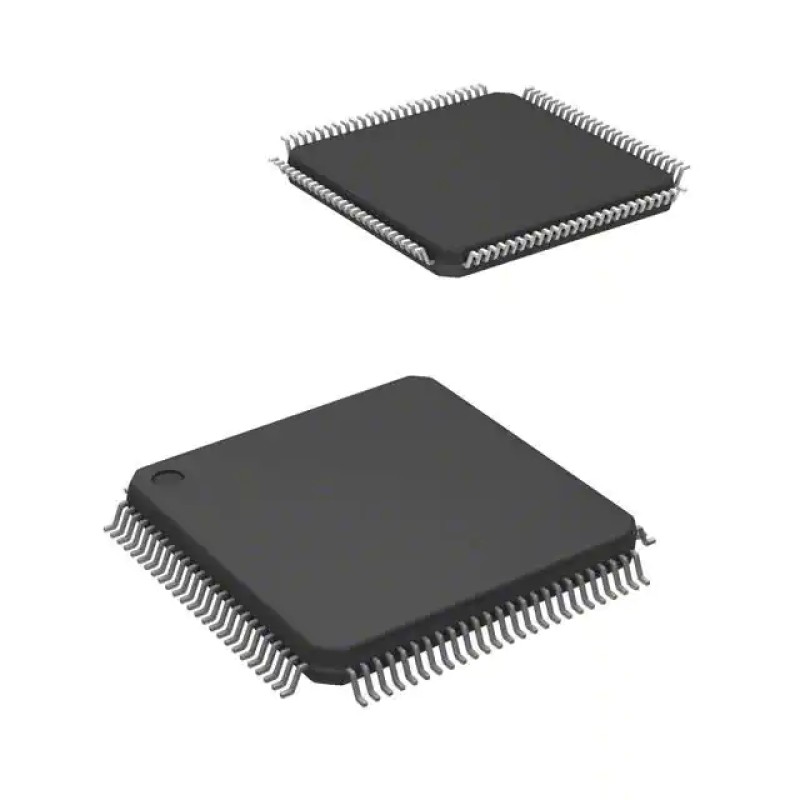

Housed in a compact 100-LQFP (14x14mm) surface-mount package, the STM32F205VGT6 is designed for industrial environments with its extended operating temperature range. The device operates efficiently across a wide voltage range (1.8V-3.6V), accommodating various power supply configurations while maintaining signal integrity. Its internal oscillator eliminates the need for external timing components, reducing overall system cost and complexity.
This microcontroller's combination of performance, connectivity, and robust design makes it suitable for applications such as:
- Industrial control systems
- Medical instrumentation
- Building automation
- Consumer electronics
- Automotive accessories
STMicroelectronics' comprehensive development ecosystem, including STM32Cube software tools and hardware evaluation boards, ensures rapid prototyping and streamlined product development cycles. The device's scalability within the STM32 family allows for easy migration to different performance levels as application requirements evolve.
