STMicroelectronics STTH8L06D Diode
- Brand: STMicroelectronics
- Product Code: STTH8L06D
- Availability: In Stock
$0.50
- Ex Tax: $0.50
Introducing the STTH8L06D Diode: High-Performance Rectification for Demanding Applications
STMicroelectronics continues to set industry benchmarks with its STTH8L06D diode, a cutting-edge solution engineered for high-power rectification tasks. Designed for engineers and designers working on power supplies, motor drives, and industrial equipment, this fast recovery diode combines exceptional electrical characteristics with robust thermal management capabilities. Whether you're developing consumer electronics or heavy-duty industrial systems, the STTH8L06D offers reliable performance in demanding environments.

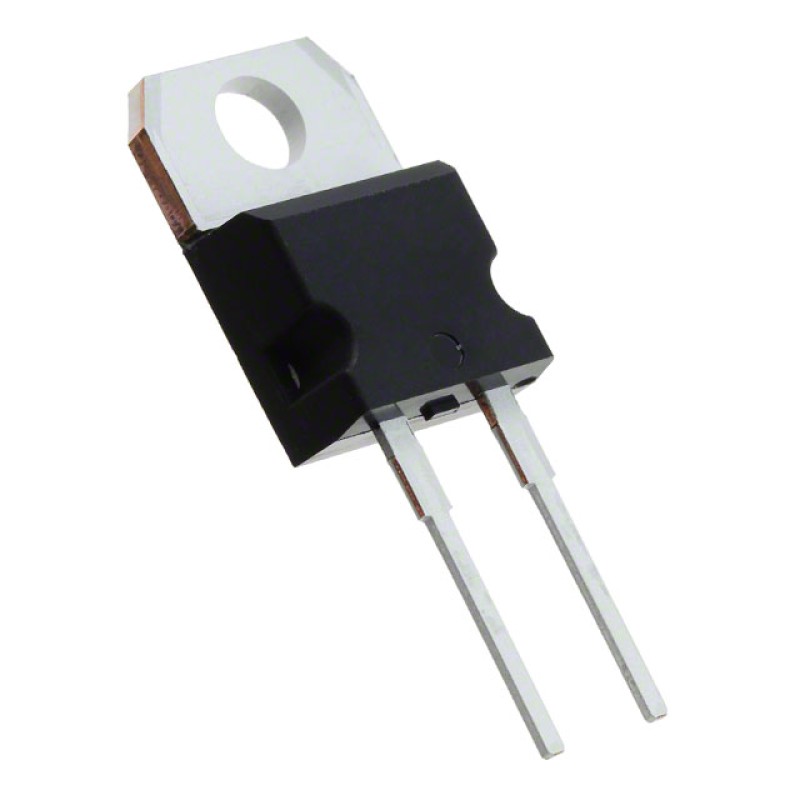

Technical Excellence in a Compact TO-220AC Package
At the heart of this diode's impressive performance lies its 600V maximum reverse voltage rating coupled with an 8A average rectified current capacity. These specifications make it ideal for applications requiring efficient power conversion while maintaining minimal energy loss. The device's 1.3V forward voltage drop at 8A ensures superior efficiency compared to conventional diodes, translating to reduced operating temperatures and extended component lifespan.
| Parameter | Value |
|---|---|
| Max DC Reverse Voltage | 600 V |
| Average Rectified Current | 8 A |
| Forward Voltage Max | 1.3 V @ 8 A |
| Reverse Recovery Time | 105 ns |
| Reverse Leakage Current | 8 µA @ 600 V |
Versatile Applications Across Industries
The STTH8L06D's fast recovery characteristics (<= 500ns) make it particularly suited for switching power supplies, battery charging systems, and motor control circuits where efficiency and thermal management are critical. Its TO-220AC package offers excellent heat dissipation properties while maintaining compatibility with standard PCB mounting techniques. The device's 175°C maximum junction temperature rating provides additional design flexibility for high-temperature operating environments.
Robust Design for Long-Term Reliability
Engineered with STMicroelectronics' advanced manufacturing processes, this diode delivers exceptional reliability through its combination of low reverse leakage current and high surge current capability. The through-hole mounting configuration ensures mechanical stability in vibration-prone applications, while the device's inherent thermal stability reduces the need for extensive heatsinking in many typical implementations.
Why Choose the STTH8L06D Over Competing Solutions?
Compared to alternative diodes in its class, the STTH8L06D stands out through its optimal balance of speed, power handling, and efficiency. Its 105ns reverse recovery time outperforms standard rectifiers while maintaining superior current handling capabilities compared to similarly rated Schottky diodes. This unique combination makes it an ideal choice for designers seeking to optimize both circuit performance and component longevity without compromising on reliability.
For applications requiring precise power control in compact form factors, the STTH8L06D represents a proven solution trusted by engineers worldwide. Its comprehensive specification set, combined with STMicroelectronics' industry-leading quality standards, ensures consistent performance across diverse operating conditions. Whether implementing in commercial power supplies, industrial motor drives, or high-reliability automotive systems, this diode provides the performance headroom needed for demanding modern applications.
Tags: Fast Recovery Diode, High Voltage Diode, Power Electronics, Rectifier Diode, TO-220 Package
