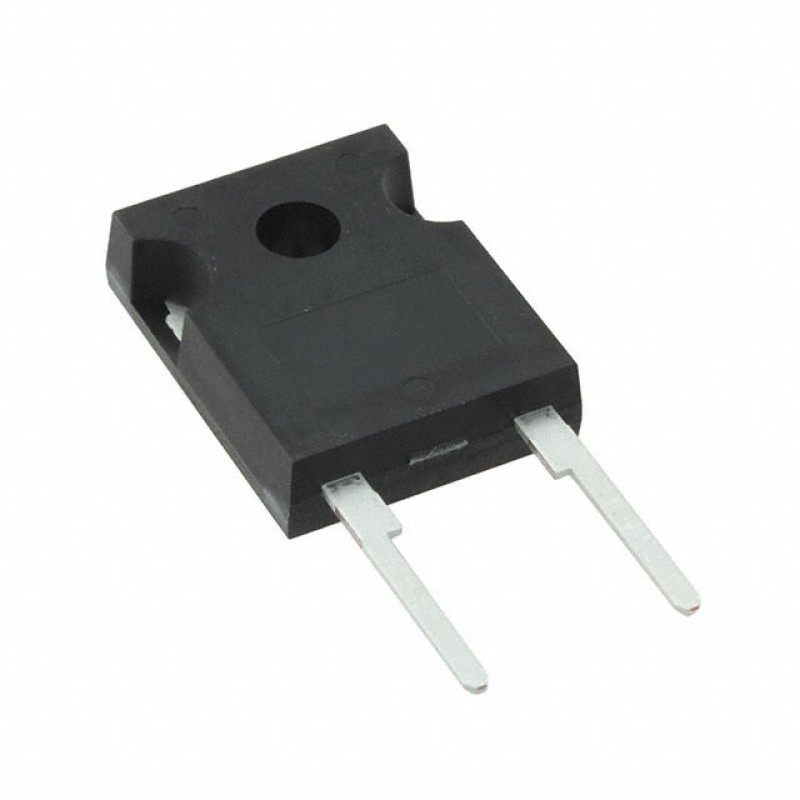

STTH6010W 1000V 60A Standard Diode - STMicroelectronics DO-247 Fast Recovery Rectifier
- Brand: STMicroelectronics
- Product Code: STTH6010W
- Availability: In Stock
$2.90
- Ex Tax: $2.90
STTH6010W: High-Performance Fast Recovery Diode for Demanding Power Applications
STMicroelectronics continues to set industry standards with the STTH6010W, a cutting-edge fast recovery diode designed for high-voltage and high-current applications. This DO-247 packaged semiconductor device combines exceptional electrical characteristics with robust thermal management, making it an ideal choice for modern power electronics systems requiring reliable rectification and switching performance.
Technical Specifications
Engineered to deliver superior performance, the STTH6010W features a maximum reverse voltage rating of 1000V and an impressive 60A average rectified current capacity. Its advanced silicon structure ensures minimal forward voltage drop of 2V at full load, significantly reducing conduction losses and improving overall system efficiency. The device's fast recovery characteristics with 115ns reverse recovery time enable high-frequency operation, while maintaining ultra-low leakage current of just 20µA at rated voltage.
| Parameter | Value |
|---|---|
| Max Reverse Voltage | 1000V |
| Forward Current | 60A |
| Forward Voltage | 2V @ 60A |
| Reverse Recovery Time | 115ns |
| Operating Temperature | -55°C to 175°C |
The STTH6010W's through-hole DO-247 package provides excellent mechanical stability and thermal dissipation capabilities, essential for maintaining performance in high-power environments. Its industrial-grade construction ensures long-term reliability even under extreme operating conditions, making it particularly suitable for demanding applications in industrial automation, renewable energy systems, and heavy-duty power supplies.
Designed with modern electronics requirements in mind, this standard diode features a compact footprint that simplifies PCB layout while maintaining high current-carrying capacity. The device's fast recovery characteristics make it particularly effective in switching applications where minimizing recovery time losses is critical, such as in high-frequency converters and motor drive systems.
STMicroelectronics' STTH6010W demonstrates exceptional versatility across various applications including:
- Industrial power supplies and converters
- Renewable energy systems (solar inverters, wind turbines)
- Motion control and motor drives
- High-voltage switching circuits
- Test and measurement equipment
The device's combination of high voltage rating and substantial current capacity enables engineers to design more compact and efficient power systems. Its advanced thermal management features ensure stable operation even in high-temperature environments, reducing the need for complex cooling solutions and lowering overall system costs.
Manufacturers and design engineers benefit from STMicroelectronics' commitment to quality and reliability. The STTH6010W undergoes rigorous testing to meet industry standards for performance and durability, ensuring consistent operation across its full operating range. This reliability translates to reduced maintenance requirements and extended equipment lifespan in end-user applications.
As part of STMicroelectronics' comprehensive portfolio of power semiconductor solutions, the STTH6010W represents the perfect balance between performance and practicality. Its technical specifications make it suitable for both traditional power applications and emerging technologies requiring efficient power conversion, such as electric vehicle charging systems and smart grid infrastructure.
Tags: Power Diodes, Industrial Electronics, Rectifier Components, High Voltage Semiconductors, Industrial Automation
