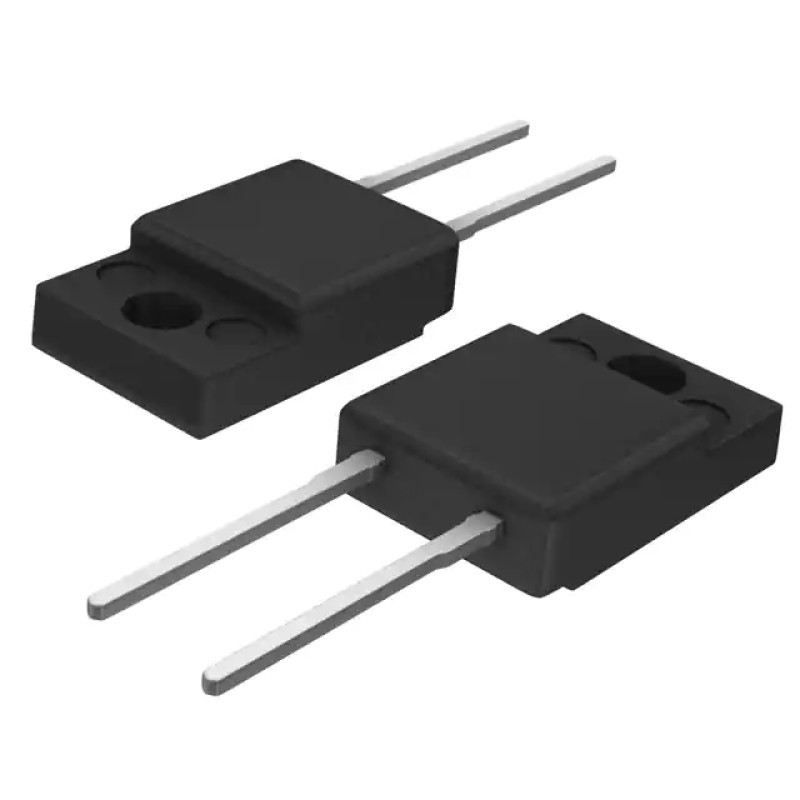

STMicroelectronics STTH5L06FP 600V 5A Fast Recovery Diode
- Brand: STMicroelectronics
- Product Code: STTH5L06FP
- Availability: In Stock
$0.31
- Ex Tax: $0.31
High-Performance STTH5L06FP Fast Recovery Diode for Demanding Power Applications
Engineered for precision and reliability in high-voltage environments, the STTH5L06FP fast recovery diode from STMicroelectronics represents the pinnacle of power semiconductor technology. This TO-220FP packaged component combines exceptional electrical characteristics with robust thermal management capabilities, making it an ideal solution for modern power conversion systems requiring both efficiency and durability.
At the heart of this diode's performance lies its optimized silicon structure, delivering a remarkable combination of fast switching characteristics and low conduction losses. With a maximum reverse voltage rating of 600V and 5A average rectified current capacity, this device bridges the gap between standard rectifiers and specialized high-speed components. Its 95ns reverse recovery time enables operation in high-frequency circuits while maintaining excellent energy efficiency.
Technical Excellence in Power Management
| Parameter | Specification |
|---|---|
| Max Repetitive Reverse Voltage | 600 V |
| Forward Voltage Drop | 1.3 V @ 5 A |
| Reverse Recovery Time | 95 ns |
| Operating Junction Temperature | 175°C |
The STTH5L06FP's design incorporates advanced process technology that minimizes leakage current to just 5µA at rated voltage, ensuring superior performance in standby modes. Its through-hole mounting configuration with isolated tab facilitates efficient heat dissipation while maintaining electrical isolation, making it particularly suitable for industrial power supplies, motor control circuits, and renewable energy systems.
This fast recovery diode excels in applications where thermal management and energy efficiency are critical. The device's ability to maintain stable performance at junction temperatures up to 175°C makes it particularly valuable in automotive electronics and industrial automation systems where operating conditions can be extreme. The TO-220FP package's mechanical robustness further enhances its suitability for demanding environments.
Engineering Advantages
Designers benefit from the STTH5L06FP's balanced performance characteristics that enable multiple design optimizations. The fast recovery time reduces switching losses in high-frequency applications while maintaining the ruggedness of standard rectifiers. This makes it particularly valuable in:
- Switching power supplies for industrial equipment
- Motor drive inverters
- Consumer electronics power adapters
- Solar inverter systems
- Uninterruptible power supplies (UPS)
The component's 1.3V maximum forward voltage drop at 5A current ensures minimal conduction losses, contributing directly to system efficiency improvements. This characteristic is particularly beneficial in battery charging circuits and LED lighting systems where energy conservation is paramount.
Manufacturing Reliability
As part of STMicroelectronics' extensive power semiconductor portfolio, the STTH5L06FP undergoes rigorous quality testing to ensure compliance with the highest industry standards. The device's active status in the manufacturer's catalog guarantees long-term supply stability for production applications. Available in tube packaging, it offers convenient handling and integration into automated assembly processes.
Tags: Power Rectifier, TO-220FP Package, High Voltage Diode, Electronic Component, Industrial Power Supply
