STMicroelectronics STTH3R06U Diode - High-Efficiency Rectifier for Power Electronics

Revolutionizing Power Electronics with STTH3R06U High-Performance Diode

As industries evolve towards more efficient power management systems, STMicroelectronics continues to lead with its STTH3R06U diode - a cutting-edge solution combining advanced semiconductor technology with robust industrial design. This high-speed rectifier redefines performance standards in modern electronic systems requiring reliable voltage conversion and energy optimization.

Technical Excellence in Diode Engineering

At the heart of the STTH3R06U lies a meticulously engineered silicon die that delivers exceptional electrical characteristics. With a maximum DC reverse voltage rating of 600V and 3A average rectified current capacity, this diode operates efficiently even under extreme electrical stress. The device's 1.7V forward voltage drop at 3A significantly reduces conduction losses, making it particularly valuable in high-frequency switching applications where thermal management is critical.

Advanced Performance Features

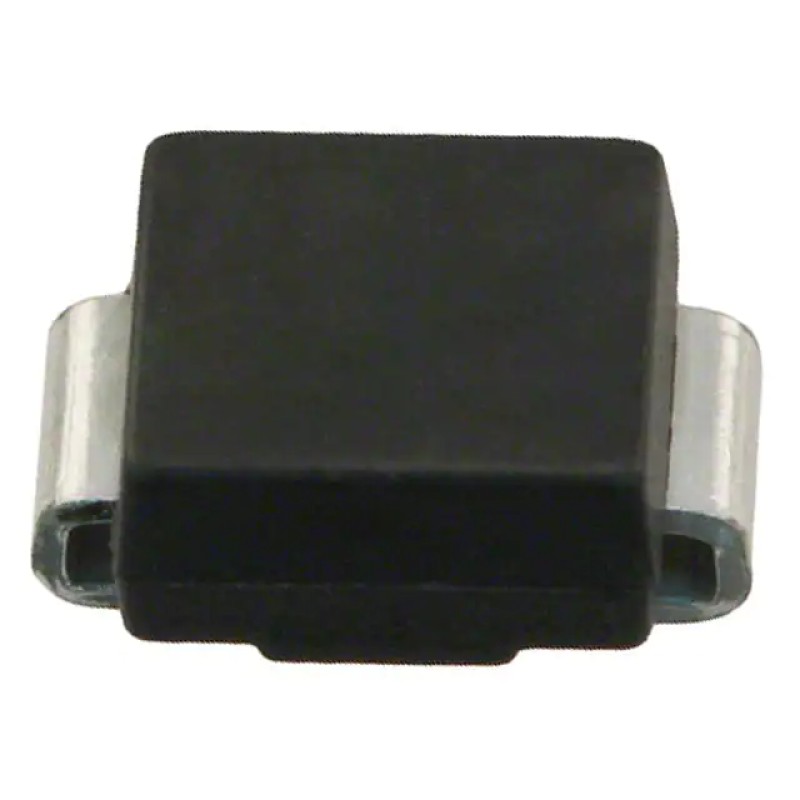

The STTH3R06U's fast recovery technology (<=500ns) enables seamless operation in high-speed switching circuits, reducing electromagnetic interference (EMI) and improving overall system efficiency. Its unique junction design maintains stable performance across extreme temperature ranges, with guaranteed operation up to 175°C junction temperature. The surface-mount SMB package combines compact dimensions with excellent thermal dissipation capabilities, making it ideal for space-constrained applications requiring reliable power handling.

Key advantages include:

• Minimal switching losses through 35ns recovery time
• Enhanced reliability via low reverse leakage current
• Optimized thermal performance with SMB package
• Broad operating temperature range for industrial environments

Industrial Applications

This versatile diode serves as a fundamental building block across multiple industrial sectors. In power supplies, it enables efficient AC-to-DC conversion for server farms and telecommunications infrastructure. Motor drive applications benefit from its fast switching characteristics in freewheeling circuits. The device also excels in battery charging systems, welding equipment, and industrial automation controllers where dependable rectification is crucial.

Notable application areas include:

- Switching power supplies and SMPS units
- Motor control and drive systems
- Battery charging and energy storage
- Industrial automation and control panels
- Lighting ballasts and LED drivers

Design Advantages

Engineers choosing the STTH3R06U gain significant design flexibility. The SMB package's surface-mount compatibility streamlines PCB assembly while maintaining excellent thermal performance. Compared to conventional rectifiers, this device reduces system cooling requirements through lower conduction losses. Its high reverse voltage capability provides design margin in systems subject to voltage transients.

Environmental considerations are also addressed through RoHS compliance and halogen-free materials, aligning with modern electronics' sustainability requirements. The device's inherent reliability reduces field failures and maintenance costs over equipment lifecycles.
