STMicroelectronics STTH2R02U Diode

Revolutionizing Power Management with STMicroelectronics STTH2R02U Diode

In modern electronics, efficient power management has become critical for maintaining performance while minimizing energy waste. The STTH2R02U diode from STMicroelectronics emerges as a cutting-edge solution designed to meet the demands of high-speed rectification in compact surface-mount applications. This 200V 2A general-purpose diode combines fast recovery characteristics with robust thermal performance, making it an ideal choice for engineers working on power supplies, motor drives, and industrial control systems.

Technical Excellence in Diode Design

Engineered with precision, the STTH2R02U diode features a standard diode configuration optimized for fast recovery operations. Its 200V maximum reverse voltage capability ensures reliable performance in high-voltage environments, while the 2A average rectified current rating supports substantial power handling capacity. The device maintains exceptional efficiency with a maximum forward voltage drop of just 1V at 2A, significantly reducing conduction losses compared to conventional diodes.

Performance-Driven Features

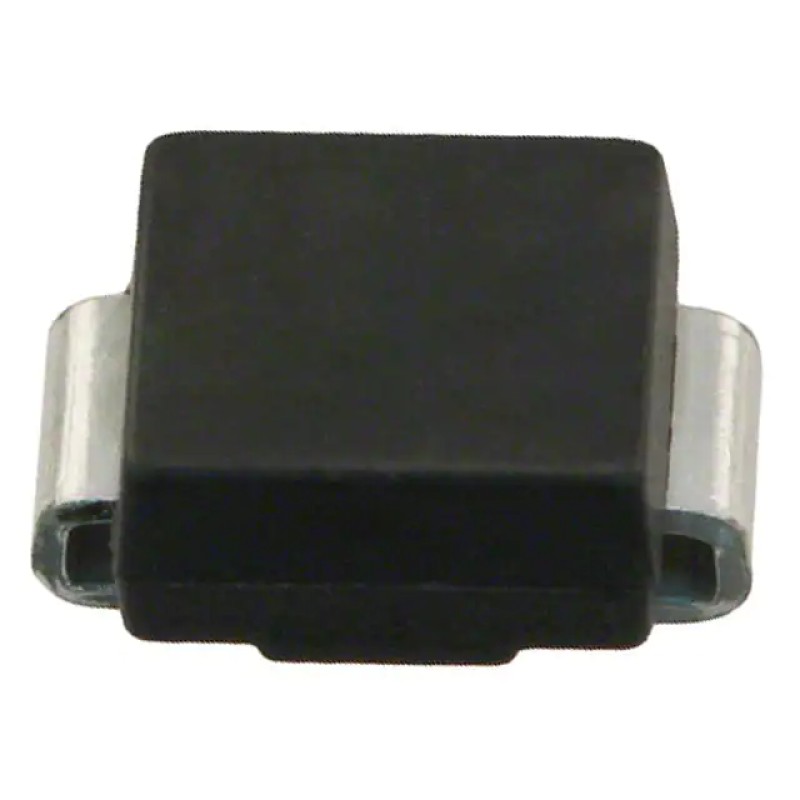

One of the standout characteristics of this SMB-packaged diode is its 30ns reverse recovery time, positioning it in the fast recovery category while maintaining excellent thermal stability. The device's 3µA reverse leakage current at maximum voltage ensures minimal power loss during blocking states, contributing to overall system efficiency. Its surface-mount DO-214AA (SMB) package enables seamless integration into modern PCB designs while maintaining excellent thermal dissipation through its optimized metal contacts.

Operating at temperatures up to 175°C, the STTH2R02U demonstrates remarkable thermal resilience, making it suitable for applications in harsh environments. The diode's design balances speed and reliability, with recovery characteristics optimized for switching frequencies above 200kHz while maintaining robustness against voltage spikes.

Industrial Applications and System Integration

This versatile diode finds applications across multiple domains including:

• Switch-mode power supplies (SMPS)
• Motor drive circuits
• Industrial automation systems
• Renewable energy inverters
• High-frequency rectifiers

Its compact SMB package allows designers to implement efficient power conversion solutions in space-constrained applications without compromising performance. When compared to similar 200V diodes in the market, the STTH2R02U offers superior combination of low forward voltage drop and fast recovery characteristics, making it particularly valuable for high-efficiency power supply designs.

Quality and Reliability

As part of STMicroelectronics' active product portfolio, the STTH2R02U undergoes rigorous quality testing to meet industry standards. The device's tape-and-reel packaging ensures safe handling during automated assembly processes, while its RoHS-compliant construction meets modern environmental regulations. With a proven track record in demanding applications, this diode demonstrates exceptional reliability in both continuous and pulsed operation modes.

Technical Comparison and Selection Guide

When evaluating diodes for high-speed rectification applications, engineers should consider key parameters including recovery time, forward voltage drop, and thermal characteristics. The STTH2R02U's specification table reveals its competitive advantage:

This comparison highlights the STTH2R02U's superior balance of speed and efficiency, making it an optimal choice for modern power electronics applications where minimizing losses and maximizing reliability are critical requirements.

Tags: Diodes, Power Electronics, Industrial Components, Electrical Components, Surface Mount Devices
