STMicroelectronics STTH1R06A High-Voltage Fast Recovery Diode
- Brand: STMicroelectronics
- Product Code: STTH1R06A
- Availability: In Stock
$0.06
- Ex Tax: $0.06
The STMicroelectronics STTH1R06A represents a pinnacle in standard diode technology, engineered for demanding applications requiring robust performance in compact surface-mount configurations. This 600V, 1A general-purpose diode combines fast recovery characteristics with exceptional thermal stability, making it ideal for power conversion systems, industrial motor drives, and automotive electronics where reliability under stress is critical.
Technical Excellence in Power Management
With its 600V maximum reverse voltage rating and 1A average rectified current capacity, the STTH1R06A operates efficiently across diverse environments. The device's 1.7V maximum forward voltage drop at 1A ensures minimal power loss during rectification cycles. Its standout feature - a 45ns reverse recovery time - enables operation in high-frequency switching applications where traditional diodes would struggle with efficiency.
Key Performance Specifications
| Parameter | Value |
| Reverse Voltage | 600V |
| Forward Current | 1A |
| Forward Voltage | 1.7V @ 1A |
| Recovery Time | 45ns |
| Leakage Current | 1µA @ 600V |

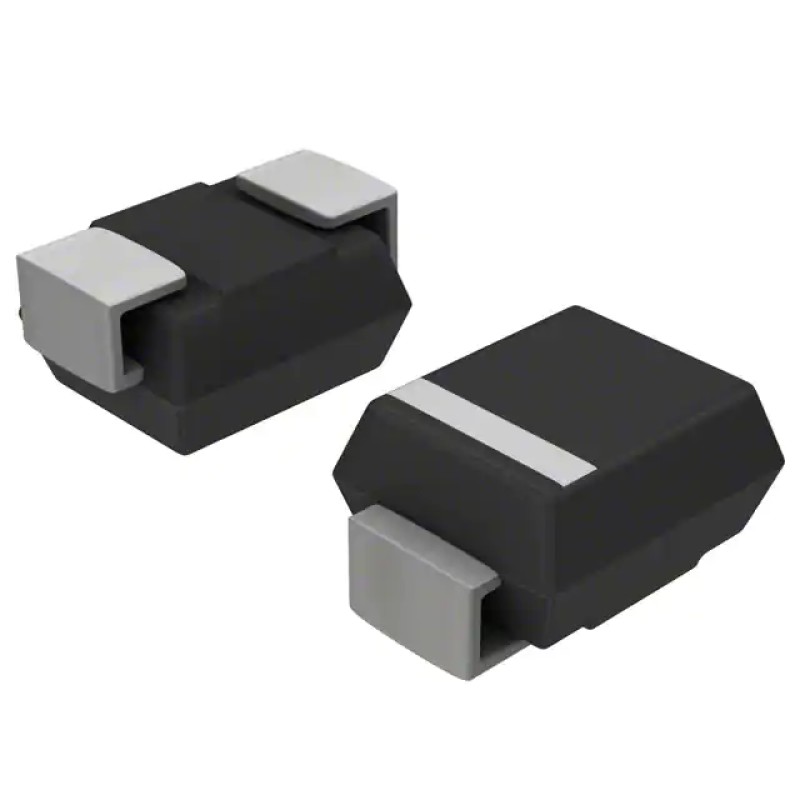

Operating at junction temperatures up to 175°C, this SMA-packaged diode maintains functionality in extreme thermal conditions. The surface-mount DO-214AC package facilitates automated assembly while ensuring excellent heat dissipation characteristics. Designed for tape-and-reel manufacturing processes, it supports high-volume production requirements without compromising quality.
Industrial-Grade Reliability
Engineered for harsh environments, the STTH1R06A demonstrates exceptional durability in industrial automation systems, power supplies, and motor control applications. Its fast recovery characteristics enable efficient operation in switching power supplies and DC-DC converters, while the low leakage current specification ensures minimal standby power consumption in standby modes.
This diode's versatility extends across multiple sectors including renewable energy systems, automotive electronics, and industrial machinery. The device meets rigorous AEC-Q101 automotive standards, making it suitable for both traditional and electric vehicle applications where vibration resistance and thermal cycling stability are paramount.
Tags: Power Diode, Surface Mount, Fast Recovery, Industrial Electronics, Automotive Component
