STMicroelectronics STTH15S12D 1200V 15A Standard Diode

STMicroelectronics STTH15S12D: High-Performance Standard Diode for Demanding Applications

In the evolving landscape of power electronics, selecting the right components is crucial for ensuring efficiency and reliability. The STMicroelectronics STTH15S12D 1200V 15A standard diode stands out as a robust solution for engineers working on high-voltage systems. This diode combines advanced semiconductor technology with practical design considerations, making it an ideal choice for applications ranging from industrial power supplies to renewable energy systems.

Key Features and Technical Specifications

Engineered to handle demanding electrical conditions, the STTH15S12D offers exceptional performance characteristics. Its 1200 V maximum reverse voltage rating enables operation in high-voltage environments, while the 15 A average rectified current capacity ensures reliable power handling. The device maintains efficiency with a forward voltage drop of just 3.1 V at 15 A, minimizing energy losses in critical circuits.

Advanced Performance Characteristics

What truly distinguishes this standard diode is its exceptional reverse recovery performance. With a 40 ns reverse recovery time, it outperforms many conventional devices in its class. This fast recovery characteristic is particularly valuable in high-frequency switching applications where minimizing switching losses is critical. The device maintains its performance across extreme operating conditions, with a maximum junction temperature rating of 175°C that ensures reliability in demanding environments.

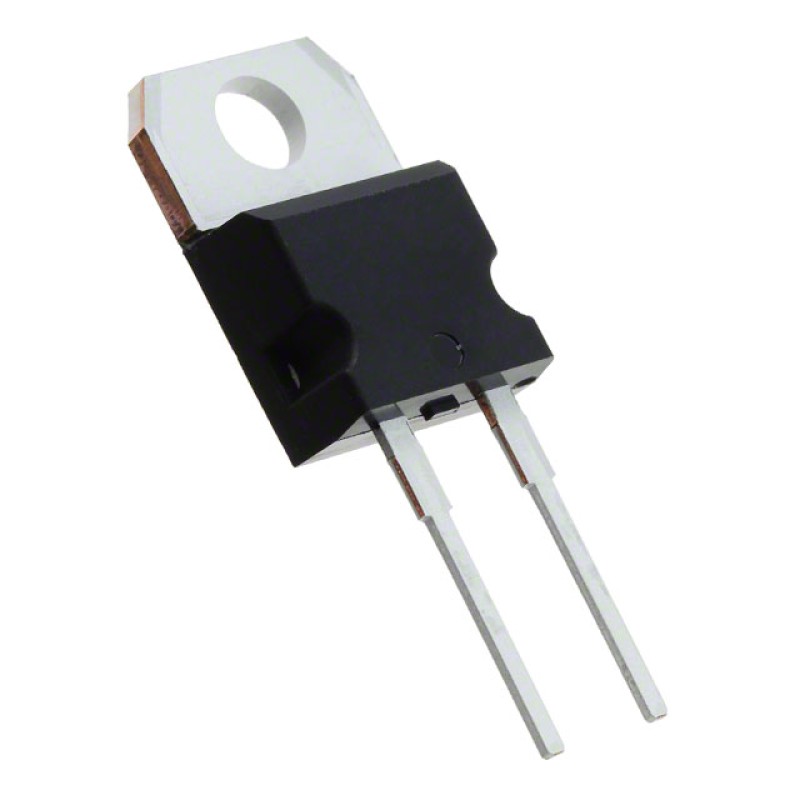

The STTH15S12D's through-hole TO-220AC package offers excellent thermal management capabilities. This industry-standard footprint simplifies integration into existing designs while maintaining mechanical stability. The package design also facilitates efficient heat dissipation, allowing the diode to maintain optimal performance under continuous load conditions.

Industrial Applications and System Integration

This versatile diode finds application in various critical systems. Power supply designers value its capability to handle high-voltage rectification in switch-mode power supplies (SMPS). In motor drive applications, its fast recovery characteristics contribute to improved efficiency in inverter circuits. The device also proves valuable in battery charging systems and uninterruptible power supply (UPS) designs where reliable high-voltage rectification is essential.

For engineers working on renewable energy systems, the STTH15S12D offers reliable performance in solar inverters and energy storage systems. Its ability to handle high-voltage DC circuits makes it particularly suitable for modern energy conversion applications where efficiency and reliability are paramount.

Design Considerations and Implementation

When implementing this diode in circuit designs, engineers should consider several factors to maximize performance. Proper thermal management is essential, particularly in high-current applications. While the TO-220AC package provides good thermal characteristics, additional heatsinking may be required depending on the specific operating conditions.

The device's 10 µA maximum reverse leakage current at rated voltage ensures minimal standby losses in blocking mode. This characteristic makes it suitable for applications requiring high efficiency during non-conductive states. Designers should also consider the device's capacitance characteristics, which affect performance in high-frequency switching applications.

Reliability and Quality Assurance

As part of STMicroelectronics' industrial component portfolio, the STTH15S12D undergoes rigorous quality testing. The device meets industry-standard reliability requirements for power semiconductor components, ensuring long-term performance in demanding applications. Its robust construction and advanced passivation techniques provide protection against environmental stress factors commonly encountered in industrial settings.

The diode's packaging configuration facilitates easy implementation in both prototyping and production environments. The through-hole design allows for straightforward manual assembly while maintaining compatibility with automated manufacturing processes. This flexibility makes it an attractive option for both small-scale and large-volume production requirements.
