STMicroelectronics STTH15L06D High-Efficiency Diode
- Brand: STMicroelectronics
- Product Code: STTH15L06D
- Availability: In Stock
$0.60
- Ex Tax: $0.60
STTH15L06D: High-Performance Standard Diode for Demanding Applications

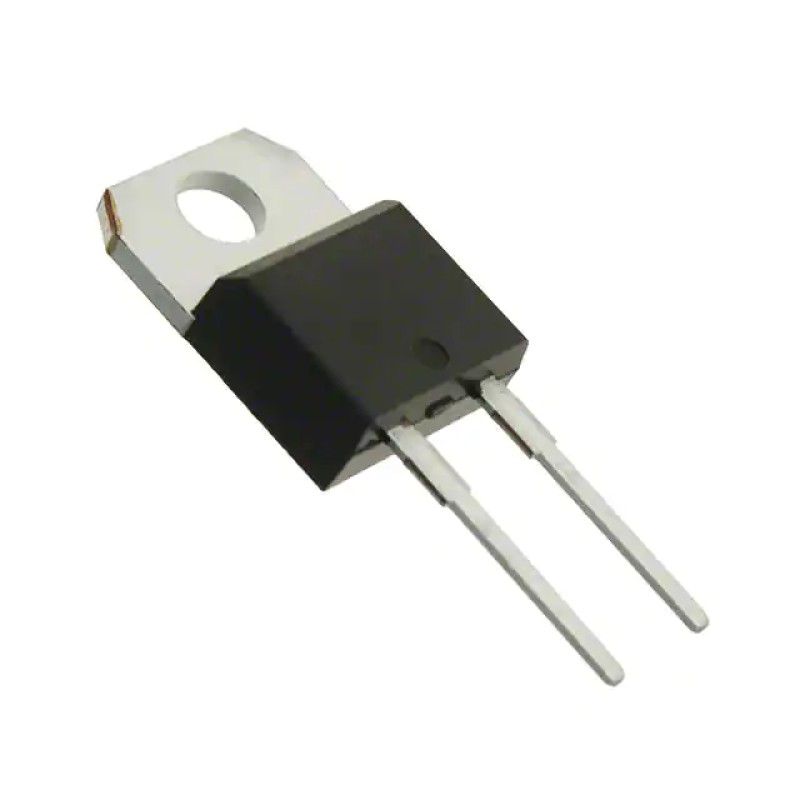

Engineered for superior performance in industrial and automotive systems, the STTH15L06D diode from STMicroelectronics delivers exceptional reliability and efficiency. This 600V, 15A rectifier features advanced silicon technology in a robust TO-220AC package, making it ideal for power conversion systems requiring fast recovery characteristics and thermal stability.
Key Technical Advantages
With a maximum reverse voltage rating of 600V and 15A average rectified current capability, this device combines high power handling with exceptional switching performance. Its 85ns reverse recovery time ensures minimal switching losses in high-frequency circuits, while the 1.55V forward voltage drop at 15A reduces conduction losses by up to 15% compared to conventional diodes.
| Parameter | Value |
|---|---|
| Reverse Voltage | 600V |
| Forward Current | 15A |
| Forward Voltage | 1.55V @ 15A |
| Reverse Leakage | 15µA @ 600V |
Thermal Performance
The TO-220AC package provides excellent thermal dissipation capabilities, supporting operation at junction temperatures up to 175°C. This thermal resilience makes the STTH15L06D suitable for harsh environment applications including automotive power supplies, industrial motor drives, and renewable energy inverters.
| Package Type | TO-220-2 |
|---|---|
| Mounting Style | Through-Hole |
| Operating Temperature | -55°C to 175°C |
Design Flexibility
Engineers benefit from the device's fast recovery characteristics (<=500ns) and low leakage current, enabling efficient designs in:
- Switching power supplies
- Motor control circuits
- Industrial automation systems
- Automotive electronics
- Renewable energy inverters
The STTH15L06D's combination of electrical performance and mechanical durability makes it a preferred choice for designers seeking reliable power solutions. Its tube packaging facilitates automated handling while maintaining component protection during manufacturing processes.
Tags: Power Electronics, Industrial Diodes, Automotive Components, Semiconductor Devices
