STMicroelectronics STTH12S06FP 600V 12A Standard Diode

High-Performance Power Solutions with STTH12S06FP Diode

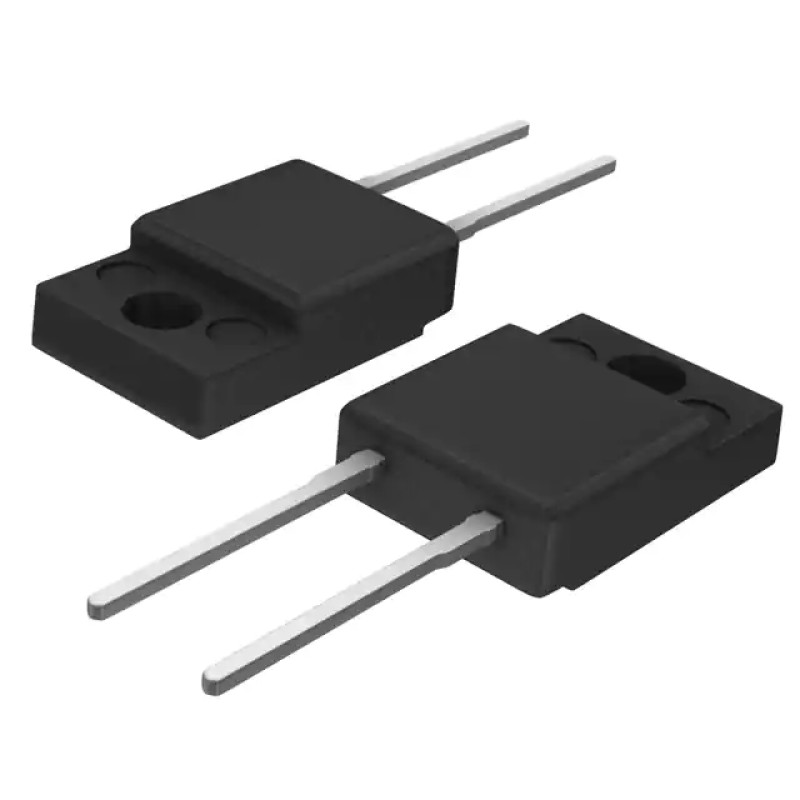

STMicroelectronics continues to set industry benchmarks with its STTH12S06FP diode, a high-voltage, high-current rectification solution engineered for demanding power electronics applications. This TO-220FP packaged device combines advanced silicon technology with robust thermal management capabilities to deliver exceptional performance in industrial, automotive, and consumer electronics systems.

Technical Excellence in Diode Design

At the core of the STTH12S06FP's impressive performance lies its optimized junction structure that enables fast recovery characteristics while maintaining low forward voltage drop. With its 600V maximum reverse voltage rating and 12A average rectified current capacity, this standard diode offers remarkable power-handling capabilities in a compact through-hole package. The device's 3.4V maximum forward voltage at full load current ensures minimal conduction losses, while its 21ns reverse recovery time positions it among the fastest standard recovery diodes in its class.

Operating at junction temperatures up to 175°C, the STTH12S06FP maintains stable performance in extreme thermal environments. Its 30µA maximum reverse leakage current at rated voltage demonstrates superior material quality and process control, ensuring reliable operation across diverse operating conditions. The device's isolated tab design in the TO-220-2 full-pack package enables direct PCB mounting without additional insulation requirements, simplifying thermal management and mechanical design.

Applications and System Integration

This versatile diode finds ideal application in various power conversion systems including switch-mode power supplies (SMPS), motor drives, and industrial automation equipment. Its fast recovery characteristics make it particularly suitable for high-frequency rectification circuits in power factor correction (PFC) stages and DC-DC converters. The device's combination of high current rating and fast switching performance enables engineers to design compact, efficient power systems with reduced heat sinking requirements.

In automotive electronics, the STTH12S06FP's robust construction and high operating temperature capability make it an excellent choice for under-hood applications such as alternator rectification and electric vehicle charging systems. Its TO-220FP package provides mechanical durability for vibration-prone environments while maintaining excellent thermal dissipation characteristics.

Design Advantages and Performance Benefits

Engineers choosing the STTH12S06FP gain access to STMicroelectronics' extensive power electronics expertise. The device's fast recovery characteristics reduce switching losses while maintaining the ruggedness of standard diode structures. Its through-hole mounting configuration provides mechanical stability in high-vibration environments while facilitating efficient heat transfer to the PCB.

The device's package design balances electrical performance with thermal management needs, featuring an isolated tab that simplifies PCB layout while enabling effective heat dissipation. Designers can take advantage of its high surge current capability to create robust power supplies with improved reliability margins. The STTH12S06FP's parameter stability over temperature ensures consistent performance across the entire operating range, minimizing derating requirements in high-temperature applications.

Quality and Reliability

As part of STMicroelectronics' industrial-grade component portfolio, the STTH12S06FP undergoes rigorous quality control processes to ensure long-term reliability. The device's construction utilizes materials selected for their thermal and mechanical stability, with production processes compliant to the highest industry standards. This commitment to quality is reflected in the component's low failure rates and excellent parametric stability over time.
