STMicroelectronics STTH1210DI Standard Diode

High-Performance STTH1210DI Standard Diode for Demanding Power Applications

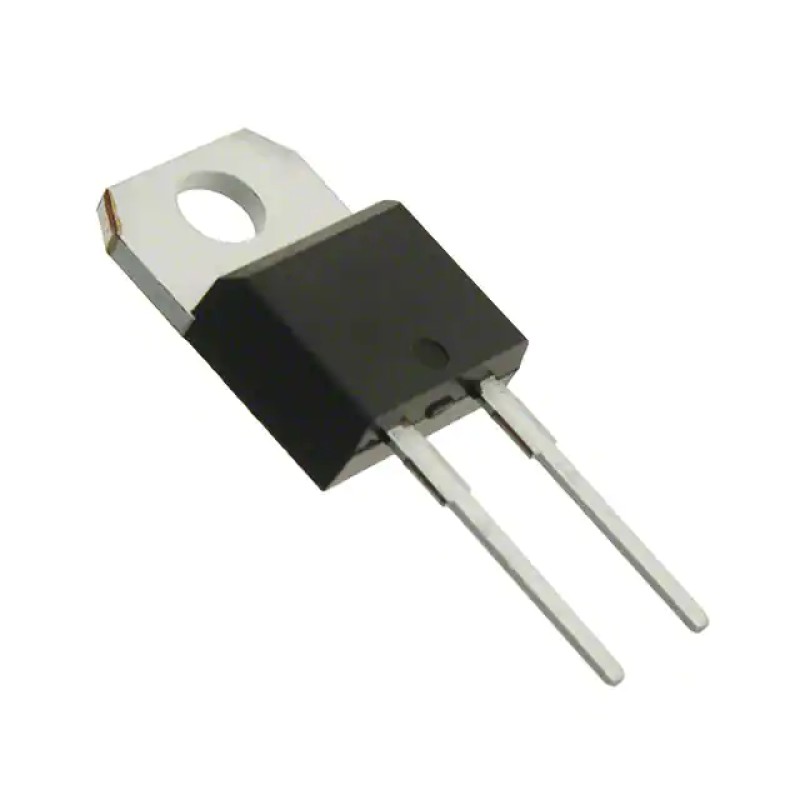

STMicroelectronics continues to lead the power electronics industry with its STTH1210DI standard diode, a robust solution engineered for high-voltage and high-current applications. This TO-220AC packaged diode combines advanced silicon technology with reliable insulation design, delivering exceptional performance in industrial power supplies, motor drives, and energy conversion systems where efficiency and durability are paramount.

Technical Excellence in Diode Design

At the core of the STTH1210DI's capabilities lies its impressive 1000V maximum reverse voltage rating paired with a 12A average rectified current capacity. These specifications make it particularly suitable for demanding applications requiring both high voltage tolerance and substantial current handling. The device's 2V maximum forward voltage drop at 12A ensures minimal power loss during operation, while its 90ns reverse recovery time positions it among the fastest standard recovery diodes in its class.

Engineered for Real-World Applications

The STTH1210DI's through-hole TO-220AC package with insulated mounting offers excellent thermal management capabilities, crucial for maintaining reliability in high-power scenarios. Its design accommodates demanding environmental conditions with a maximum operating junction temperature of 175°C, ensuring consistent performance even in challenging industrial environments. The device's 10µA maximum reverse leakage current at rated voltage further enhances its energy efficiency credentials.

Key applications include:

• Industrial power supply rectification
• Mechanical system freewheeling protection
• High-voltage DC link circuits
• Energy recovery systems

Performance-Driven Design Features

STMicroelectronics' proprietary silicon processing technology enables the STTH1210DI to maintain stable electrical characteristics across its operating range. The device's insulation design in the TO-220 package simplifies PCB layout while maintaining electrical safety compliance. With its fast recovery characteristics (<=500ns), this diode effectively minimizes switching losses in high-frequency power conversion circuits.

Design engineers will appreciate the component's compatibility with standard PCB assembly processes while benefiting from its enhanced thermal dissipation through the insulated mounting tab. The device's robust construction ensures mechanical durability during handling and operation.

Quality and Reliability Assurance

As part of STMicroelectronics' industrial-grade component portfolio, the STTH1210DI undergoes rigorous quality testing to ensure compliance with international standards. Its design incorporates advanced defect prevention measures developed through decades of semiconductor manufacturing expertise. The device's construction balances mechanical stability with optimal electrical performance, making it a preferred choice for mission-critical applications.

When integrated into power systems, this diode delivers consistent performance across its operational lifespan, reducing maintenance requirements and minimizing downtime in industrial equipment. Its thermal stability characteristics contribute to longer component life even under continuous high-load conditions.

Selection Considerations for Power Designers

When specifying the STTH1210DI in circuit designs, engineers should consider its complementary characteristics with other power components. The device's fast recovery time makes it suitable for applications requiring reduced electromagnetic interference (EMI). Designers should ensure appropriate heatsinking when operating near the device's maximum current ratings to maintain junction temperature within specified limits.

Compared to similar devices in its class, the STTH1210DI offers an optimal balance of voltage rating, current capacity, and recovery characteristics. Its through-hole mounting format provides mechanical stability particularly valuable in vibration-prone industrial environments.
