STMicroelectronics STTH102A Diode

High-Performance STTH102A Diode for Demanding Power Applications

The STTH102A diode from STMicroelectronics represents a critical component in modern power electronics, combining robust performance characteristics with compact surface-mount packaging. This fast recovery diode delivers exceptional reliability for engineers working on power supplies, battery chargers, and industrial control systems, where efficient rectification and thermal stability are paramount.

Technical Excellence in a Compact Form Factor

Engineered with STMicroelectronics' advanced semiconductor technology, the STTH102A features a maximum reverse voltage rating of 200V and a continuous forward current capacity of 1A. Its ultra-fast recovery time of just 20 nanoseconds ensures minimal switching losses in high-frequency circuits, making it ideal for switch-mode power supplies and DC-DC converters. The device maintains exceptional efficiency with a low forward voltage drop of 970mV at rated current, contributing to improved system energy efficiency.

Industrial-Grade Reliability

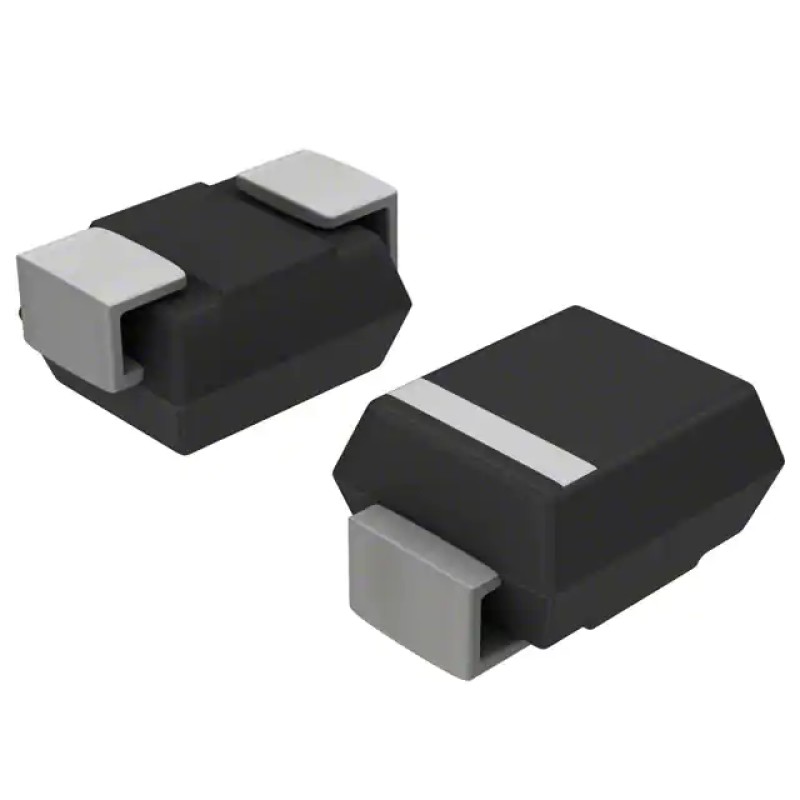

Housed in a durable DO-214AC (SMA) surface-mount package, this diode is designed for automated assembly processes while maintaining mechanical robustness. The component's 175°C maximum junction temperature rating enables reliable operation in harsh thermal environments commonly found in industrial and automotive applications. Its low reverse leakage current of 1µA at maximum voltage ensures stable performance across varying temperature ranges.

As part of STMicroelectronics' active product portfolio, the STTH102A benefits from the manufacturer's commitment to quality and long-term supply stability. The device's tape-and-reel packaging format simplifies integration into high-volume production lines, supporting consistent manufacturing yields.

Design Flexibility and Application Scope

This versatile diode finds application across multiple domains including consumer electronics power adapters, industrial motor drives, and renewable energy systems. Its fast switching characteristics make it particularly suitable for:

High-efficiency AC-DC power supplies

DC-DC converter circuits

Industrial automation equipment

LED lighting systems

Battery charging circuits

When designing with the STTH102A, engineers can leverage its comprehensive datasheet specifications to optimize thermal management and circuit protection strategies. The component's surface-mount design allows for space-efficient PCB layouts while maintaining excellent thermal dissipation through proper copper pad design.

Future-Proof Power Solution

In an era demanding greater energy efficiency and miniaturization, the STTH102A stands out as a balanced solution between performance and practicality. Its combination of fast recovery characteristics, high voltage rating, and compact packaging addresses the evolving needs of modern electronic systems. Whether used in consumer electronics or industrial control panels, this diode provides designers with the confidence of proven performance backed by STMicroelectronics' industry-leading semiconductor expertise.
