STMicroelectronics STPSC10H065B-TR Silicon Carbide Schottky Diode

Revolutionizing Power Efficiency with STMicroelectronics STPSC10H065B-TR

In the rapidly evolving world of power electronics, STMicroelectronics continues to set benchmarks with its cutting-edge silicon carbide (SiC) technology. The STPSC10H065B-TR Schottky Diode exemplifies this innovation, delivering unparalleled performance for high-voltage applications. This device combines the advantages of SiC material with advanced packaging, making it a go-to solution for engineers seeking reliability, efficiency, and compact design in power systems.

Key Features Driving Performance

Operating at a maximum reverse voltage of 650V, this diode supports high-power applications while maintaining minimal energy loss. Its 10A average rectified current rating ensures robust power handling, ideal for industrial converters, renewable energy systems, and electric vehicle charging infrastructure. The ultra-low forward voltage drop of 1.75V at 10A significantly reduces conduction losses, enhancing overall system efficiency without compromising thermal management.

Unlike traditional silicon diodes, the STPSC10H065B-TR eliminates reverse recovery time (trr = 0ns), virtually eliminating switching losses. This feature is critical in high-frequency circuits, where rapid transitions can cause inefficiencies or overheating. The device's 100µA reverse leakage current at maximum voltage further minimizes standby power consumption, aligning with global energy-saving standards.

Advanced Packaging for Reliability

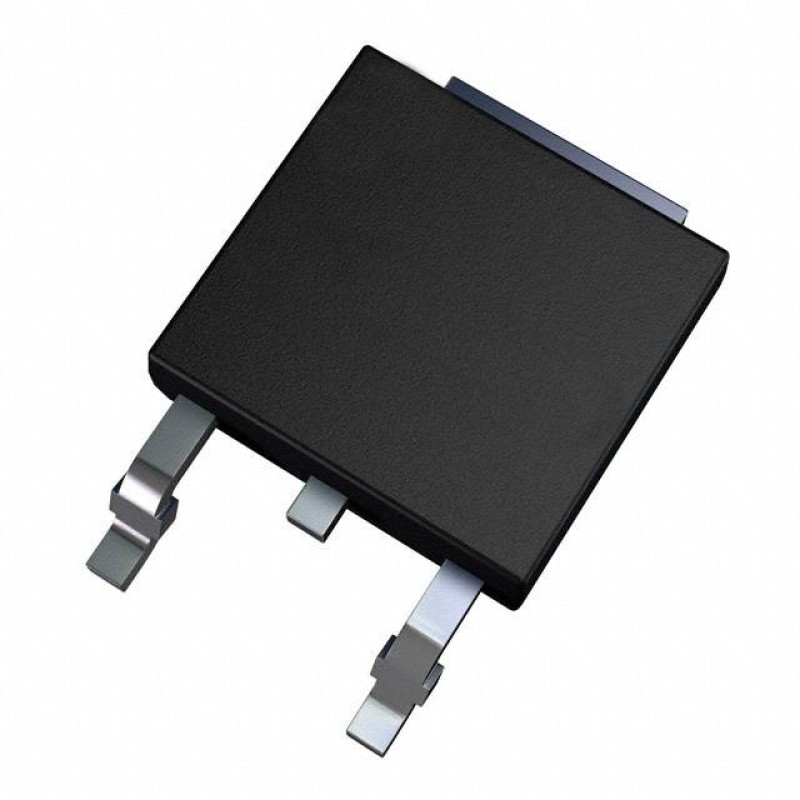

Housed in a surface-mount DPAK (TO-252-3) package, this diode balances mechanical durability with efficient heat dissipation. The compact footprint enables seamless integration into densely populated PCBs, while the wide operating temperature range (-40°C to 175°C) ensures stability in harsh environments. The 480pF capacitance at 0V further optimizes high-frequency performance, reducing electromagnetic interference (EMI) in switching applications.

Engineers will appreciate the device's compliance with modern manufacturing standards, supporting automated assembly processes through its tape-and-reel packaging. This facilitates scalability in production while maintaining component integrity during handling.

Applications Beyond Conventional Limits

The STPSC10H065B-TR's unique combination of high voltage capability and SiC efficiency opens doors for next-generation power designs. It excels in solar inverters, uninterruptible power supplies (UPS), and motor drives, where thermal performance and reliability are paramount. Its ability to operate in extreme temperatures makes it suitable for automotive systems, including on-board chargers and DC-DC converters in electric vehicles.

By eliminating the trade-offs between voltage ratings and efficiency, this diode empowers designers to create lighter, cooler, and more cost-effective systems. Compared to traditional silicon alternatives, it reduces energy waste by up to 30%, directly impacting system longevity and operational costs.

Future-Proofing Power Electronics

As industries transition toward greener technologies, components like the STPSC10H065B-TR will play a pivotal role in shaping sustainable solutions. Its silicon carbide architecture not only meets today's demanding specifications but also provides a scalable platform for emerging applications in energy storage, smart grids, and industrial automation. With STMicroelectronics' proven track record in semiconductor innovation, this diode represents a strategic investment in long-term design success.

Tags: Power Electronics, SiC Diodes, High Voltage Diodes, Surface Mount Diodes, Industrial Components
