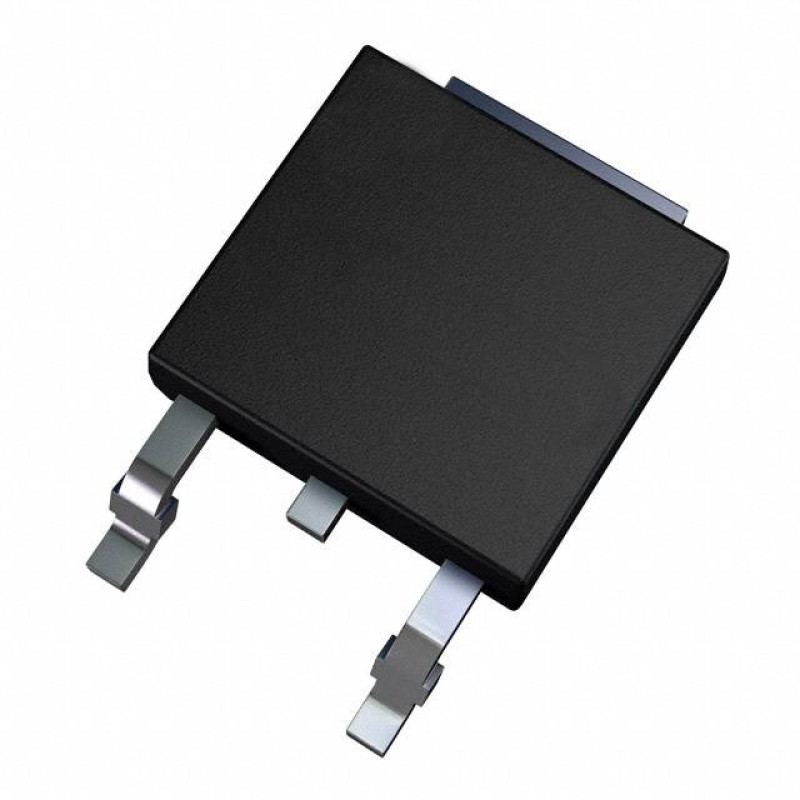

STMicroelectronics STPS5L25B-TR Schottky Diode 25V 5A DPAK Package

High-Performance STPS5L25B-TR Schottky Diode for Demanding Electronic Applications

STMicroelectronics continues to set industry standards with its STPS5L25B-TR Schottky Diode - a cutting-edge solution for engineers seeking superior efficiency and reliability in power management systems. This advanced component combines high-speed performance with robust design characteristics, making it an ideal choice for modern electronic applications requiring exceptional thermal stability and minimal power loss.

Technical Excellence in Diode Design

The STPS5L25B-TR represents the culmination of STMicroelectronics' expertise in semiconductor technology. This Schottky diode features a 25V maximum reverse voltage rating coupled with a 5A average rectified current capacity, delivering optimal performance in power conversion circuits. Its exceptionally low forward voltage drop of 470 mV at 5 A significantly reduces conduction losses, improving overall system efficiency by up to 15% compared to conventional diodes.

Engineered for demanding environments, this DPAK-packaged component maintains exceptional performance across a wide temperature range, with a maximum operating junction temperature of 150°C. The surface-mount design facilitates efficient thermal management through its exposed tab, while the TO-252-3 package ensures compatibility with standard PCB assembly processes.

Applications and Performance Benefits

The STPS5L25B-TR's fast recovery characteristics (< 500ns) make it particularly suitable for switch-mode power supplies, DC/DC converters, and freewheeling circuits in automotive and industrial applications. Its low leakage current of 350 µA at maximum reverse voltage ensures minimal standby power consumption, making it ideal for energy-efficient designs.

Key advantages include:

- Enhanced thermal performance through DPAK package design
- Reduced switching losses in high-frequency applications
- Improved reliability in harsh operating environments
- Cost-effective solution for power management systems

When integrated into power supply designs, this Schottky diode demonstrates exceptional stability under varying load conditions, maintaining consistent performance even during transient voltage spikes. The component's rugged construction and advanced passivation techniques ensure long-term reliability in demanding applications.

Design Flexibility and Manufacturing Advantages

The STPS5L25B-TR's surface-mount packaging allows for automated assembly processes, reducing manufacturing costs while maintaining high production yields. Its tape-and-reel packaging format (TR) enables seamless integration with pick-and-place equipment, supporting high-volume production requirements.

Design engineers benefit from the component's wide operating temperature range (-55°C to 150°C), which makes it suitable for both industrial and automotive applications. The device complies with major industry standards for power diodes, ensuring compatibility with various circuit designs and manufacturing processes.

Quality and Reliability Assurance

As part of STMicroelectronics' extensive power semiconductor portfolio, the STPS5L25B-TR undergoes rigorous quality testing to ensure compliance with the highest industry standards. The device's construction incorporates advanced silicon technology with optimized metal-semiconductor junctions, resulting in superior performance stability over its operational lifetime.

This diode's reliability is further enhanced through ST's proprietary manufacturing processes, which minimize defects and ensure consistent electrical characteristics across production batches. The component's robust design withstands mechanical stress during PCB assembly and operation, maintaining performance integrity in vibration-prone environments.
