STMicroelectronics STPS3150U Schottky Diode

High-Performance Power Solutions with STMicroelectronics STPS3150U Schottky Diode

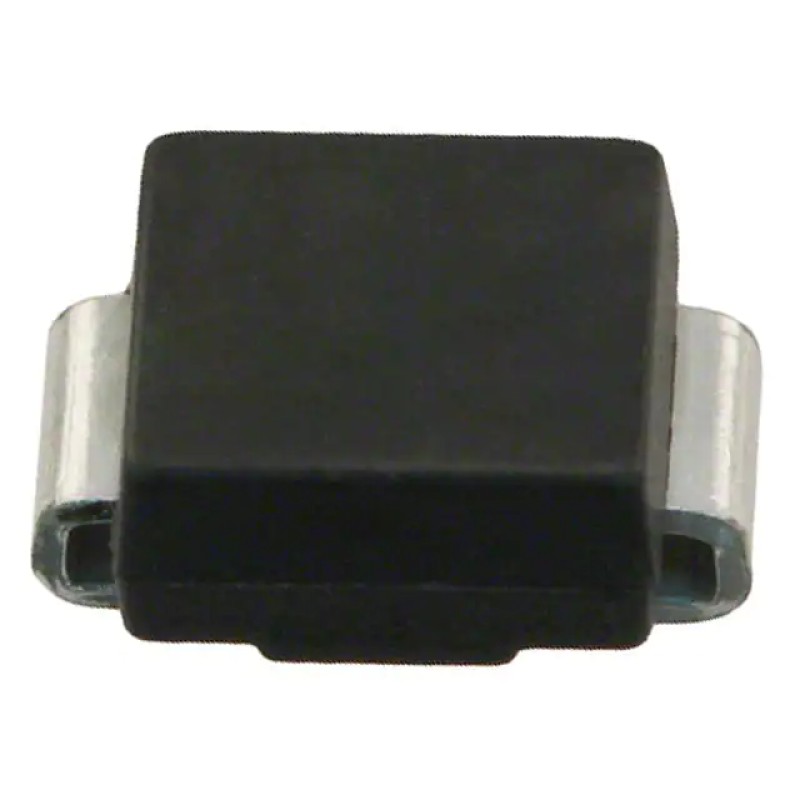

In the ever-evolving landscape of power electronics, engineers and designers continuously seek components that balance efficiency, reliability, and performance. The STMicroelectronics STPS3150U Schottky Diode emerges as a critical solution for modern power applications, offering exceptional characteristics that meet the demands of high-frequency switching circuits, power supplies, and automotive systems. This advanced semiconductor device combines STMicroelectronics' industry-leading manufacturing expertise with innovative design principles to deliver superior electrical performance in a compact SMB package.

Key Technical Specifications

At the heart of this device's impressive performance lies its ability to handle 3A average rectified current while maintaining a maximum reverse voltage rating of 150V. The STPS3150U's Schottky architecture ensures minimal forward voltage drop, with a maximum Vf of 820mV at 3A operating conditions. This characteristic significantly reduces conduction losses, making it ideal for applications where energy efficiency is paramount.

Advanced Design Features

Engineered for demanding environments, this surface-mount diode incorporates STMicroelectronics' proprietary technology to achieve fast recovery characteristics (<500ns) while maintaining low reverse leakage currents. The DO-214AA (SMB) package format offers excellent thermal dissipation capabilities, ensuring reliable operation even under heavy load conditions. The device's junction temperature rating of 175°C allows for exceptional thermal stability in automotive and industrial applications where operating environments can be particularly challenging.

The STPS3150U's design philosophy focuses on minimizing switching losses through its optimized junction structure. This feature proves particularly beneficial in DC-DC converters, freewheeling applications, and clamping circuits where high-frequency operation demands rapid switching characteristics. The device's inherent stability across temperature variations makes it suitable for power factor correction circuits and switch-mode power supplies where consistent performance is critical.

Industrial and Automotive Applications

This versatile component finds its place in various applications spanning multiple industries. In automotive electronics, it serves as an essential element in alternator rectifiers, battery management systems, and DC motor control circuits. The device's AEC-Q101 qualification ensures compliance with stringent automotive requirements, making it suitable for under-the-hood applications where reliability is non-negotiable.

For industrial applications, the STPS3150U excels in welding equipment, motor drives, and renewable energy systems. Its ability to maintain stable performance at elevated temperatures proves valuable in solar inverters and uninterruptible power supply (UPS) systems. The component's surface-mount packaging facilitates automated assembly processes while maintaining robust mechanical integrity.

Performance Advantages

When compared to conventional PN-junction diodes, the STPS3150U offers several distinct advantages. Its Schottky architecture eliminates minority carrier storage effects, resulting in significantly faster switching characteristics. This feature reduces switching losses by up to 40% in typical applications, directly translating to improved system efficiency and reduced thermal management requirements.

The device's low forward voltage drop contributes to higher energy efficiency in power conversion circuits. In a typical 3A operating scenario, the 820mV Vf specification results in just 2.46W of conduction loss (P = V×I), compared to nearly 4W for standard diodes with 1.3V forward drop characteristics. This 35% reduction in power loss directly impacts system thermal performance and overall energy efficiency.

Design Considerations

Engineers integrating the STPS3150U into their designs should consider several important factors to maximize performance. Proper PCB layout techniques become crucial at high switching frequencies, with particular attention to minimizing parasitic inductance in the current path. Thermal management considerations should include adequate copper area for heat dissipation, especially in high-current applications operating near the device's 3A rating.

The component's reverse leakage current characteristics (2µA @ 150V) require careful circuit design to prevent unwanted conduction paths in high-impedance circuits. Designers should also account for the device's junction temperature limitations when operating in environments with elevated ambient temperatures, ensuring appropriate derating according to STMicroelectronics' published thermal curves.

Manufacturing Excellence

STMicroelectronics' commitment to quality and reliability is evident in every aspect of the STPS3150U's manufacturing process. The device undergoes rigorous testing procedures to ensure compliance with industry standards and specifications. The tape-and-reel packaging format (TR) facilitates efficient automated placement during PCB assembly, maintaining component integrity throughout the manufacturing process.

The SMB package design incorporates industry-standard footprint dimensions, ensuring compatibility with existing manufacturing infrastructure. This feature enables easy component upgrades in legacy designs while maintaining production line efficiency. The device's RoHS compliance and halogen-free construction meet modern environmental regulations without compromising performance characteristics.
