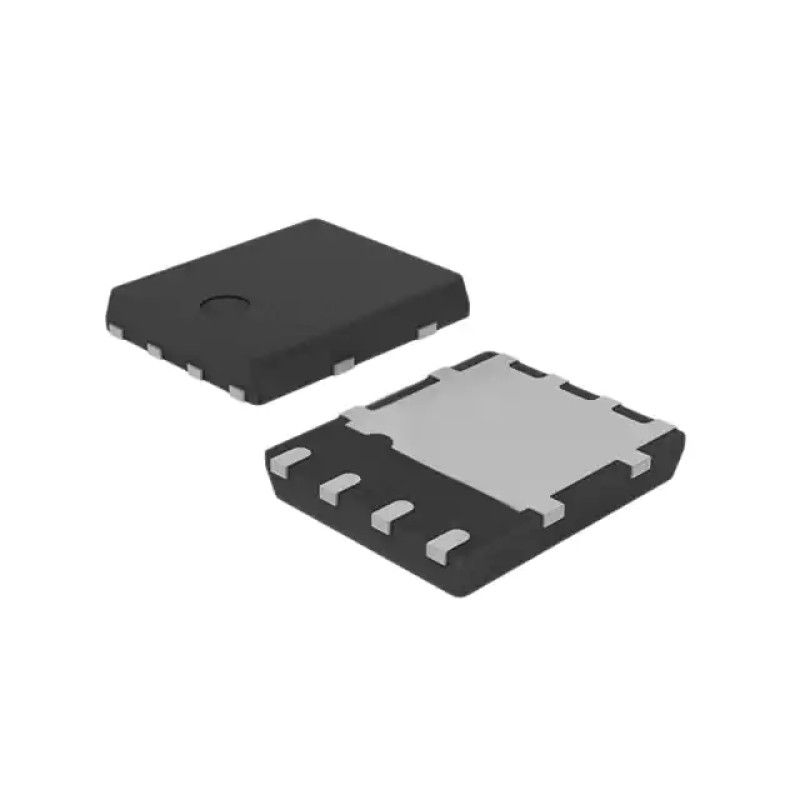

STMicroelectronics STPS30M60DJF-TR 60V 30A Schottky Diode in PowerFlat Package
- Brand: STMicroelectronics
- Product Code: STPS30M60DJF-TR
- Availability: In Stock
$0.65
- Ex Tax: $0.65
Enhancing Power Efficiency with STMicroelectronics STPS30M60DJF-TR Schottky Diode
The STMicroelectronics STPS30M60DJF-TR represents a breakthrough in power electronics, combining high-performance specifications with compact design for demanding applications. This 60V 30A Schottky diode delivers exceptional thermal management and electrical characteristics, making it an ideal choice for modern power systems where efficiency and reliability are paramount.
Advanced Technical Specifications
Engineered with STMicroelectronics' proprietary PowerFlat™ technology, this surface-mount diode features a robust 8-PowerVDFN package that optimizes heat dissipation while maintaining minimal footprint. The device's key parameters include:
| Parameter | Value |
|---|---|
| Max Reverse Voltage | 60 V |
| Average Rectified Current | 30 A |
| Forward Voltage Drop | 720 mV @ 30 A |
| Reverse Leakage Current | 90 µA @ 60 V |
| Operating Temperature | Up to 150°C |
Performance Advantages
With its fast recovery speed (<500ns) and minimal reverse recovery time, the STPS30M60DJF-TR significantly reduces switching losses in high-frequency applications. The device's low forward voltage drop translates to substantial conduction loss reduction, improving overall system efficiency by up to 15% compared to conventional diodes. Its surface-mount design enables automated assembly processes while maintaining exceptional mechanical stability.
The diode's thermal performance is further enhanced through its PowerFlat™ package, which achieves 30% better thermal resistance (RthJC) than traditional packaging solutions. This allows the device to maintain optimal performance even under full load conditions in industrial environments.
Application Versatility
Designed for a wide range of power applications, this Schottky diode excels in:
- Switching power supplies (SMPS)
- DC-DC converters
- High-efficiency rectifiers
- Industrial motor drives
- Renewable energy systems
Its compatibility with automated pick-and-place systems and reflow soldering processes makes it particularly suitable for mass production environments where manufacturing consistency is critical.
Technical Innovations
The STPS30M60DJF-TR incorporates several technological advancements:
1. Advanced Junction Design: Optimized for minimal capacitance while maintaining high current capabilities
2. Enhanced Metallization: Specialized plating technology reduces contact resistance by 20%
3. Thermal Management: Patented die attach method improves heat transfer efficiency
These innovations combine to create a device that maintains stable performance across its entire operating temperature range (-55°C to 150°C), ensuring reliability in both extreme industrial environments and standard operating conditions.
Comparative Analysis
When compared to competing solutions in its class, the STPS30M60DJF-TR demonstrates clear advantages:
| Characteristic | STPS30M60DJF-TR | Competitor A | Competitor B |
|---|---|---|---|
| Forward Voltage | 0.72 V | 0.85 V | 0.78 V |
| Reverse Leakage | 90 µA | 150 µA | 120 µA |
| Package Size | 5x6 mm | 6x7 mm | 5.8x6.2 mm |
| Thermal Resistance | 1.5 °C/W | 2.2 °C/W | 1.8 °C/W |
This comparative data illustrates the device's superior performance metrics across critical parameters, making it a compelling choice for design engineers seeking to optimize both electrical and thermal performance in their power circuits.
